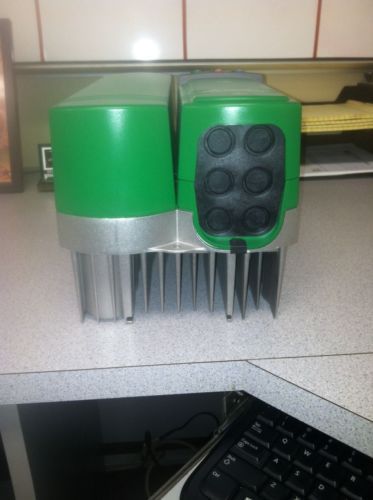

Control Techniques UNI2403 - Unidrive - New, US $7,000.00 – Picture 0

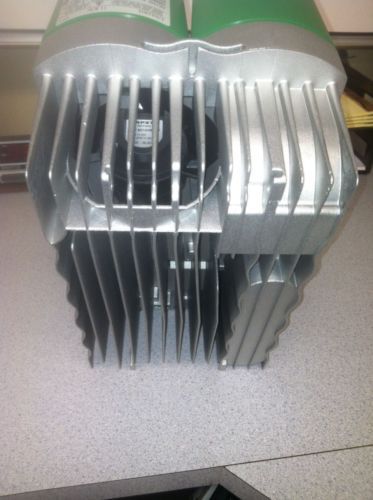

Control Techniques UNI2403 - Unidrive - New, US $7,000.00 – Picture 1

Control Techniques UNI2403 - Unidrive - New, US $7,000.00 – Picture 2

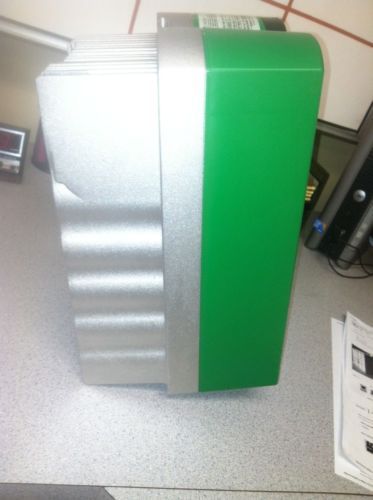

Control Techniques UNI2403 - Unidrive - New, US $7,000.00 – Picture 3

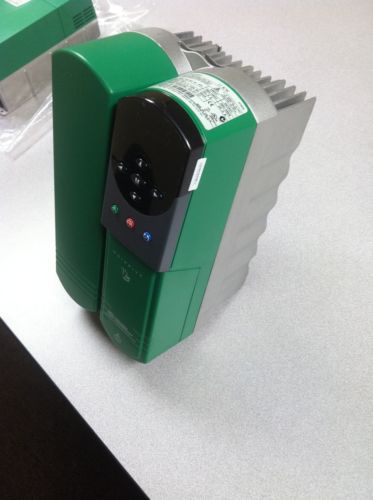

Control Techniques UNI2403 - Unidrive - New, US $7,000.00 – Picture 4

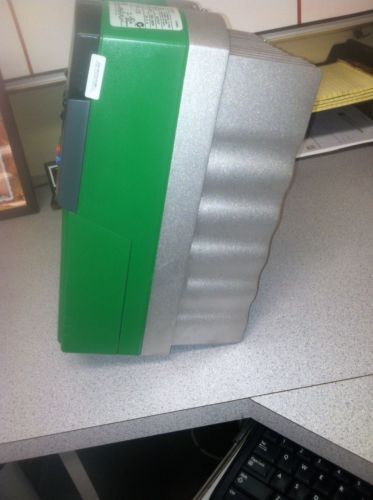

Control Techniques UNI2403 - Unidrive - New, US $7,000.00 – Picture 5

Control Techniques UNI2403 - Unidrive - New, US $7,000.00 – Picture 6

Control Techniques Uni2403 - Unidrive - New

US $7,000.00

Paramount, California, United States
Feb 21st

Open on mobile:
QR code

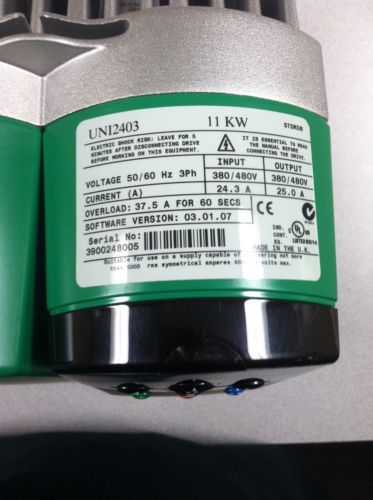

Control Techniques UNI2403 Unidrive 11 KW, 24.3/25.0 A, 380/480 VAC, 50/60 Hz, 3PH The UNI2403 is part of the Unidrive range manufactured by Control Techniques. This 11kW, 25A, 380...480V AC AC drive operates in five different modes - Open Loop V/F Control, Open Loop Space Vector Control, Closed Loop Flux Vector Control, Servo and Regeneration. The VSD can be configured in minutes for a variety of industry standard applications thanks to its pre-configured application parameter sets known as MACROs. Although it has since been replaced by the Unidrive SP, the original Unidrive gave users the benefits of simplicity, ease of use and flexibility. As official distributors for Control Techniques, Northern Industrial can supply the now obsolete Unidrive UNI2403, as well as the option modules that are compatible with the drive. Key Features of the UNI2403 Unidrive · Position control/Digital lock · Programmable logic functions · Two programmable thresholds · Mains dip ride through · Frequency slaving · Catch a spinning motor · Eight preset speeds/accelerations/decelerations · Injection and dynamic breaking · S-ramp profiling · Coast and ramp to stop modes · Three skip frequencies with adjustable bandwiths · Speed reference sequencer More Power · The best power to size ratio available, minimising panel costs · Unidrive uses the same options throughout the complete power range for maximum flexibility More Performance · Advanced auto-tuning facility enables Unidrive to dramativally increase the motor shaft performance whilst offering the user quieter motor operation · Get the maximum performance for your application thanks to the Unidrive\'s Intelligent Thermal Modelling · Excellent Flux Vector drive performance due to the enhanced control algorithms Easy to Use The 11kW Unidrive is extremely easy to configure thanks to the pre-configured parameter sets, which are also known as MACROs. You can also view and edit parameter values quickly and easily using the Unisoft commissioning software and get your motor turning in minutes with the quick start guide. Multiple drive set up is also made easy due to the optional cloning module which allows the user to copy parameters. The pre-configured parameter sets (MACROs) include: · General Purpose · Easy Mode · Motorised Potentiometer · Preset Frequencies/Speeds · Torque Control · PID Control · Axis Limit Control · Brake Control · Electrical Gearbox An Array of Options The Unidrive is suitable for a variety of applications thanks to the vast amount of options that make the series so flexible. Plug in communications options, feedback modules and interfaces are just some of the types of options this 11kW VFD supports. Options include: · EMC Filters · Extended I/O (UD50) · Second Encoder (UD51) · Sin/Cos Encoder (UD52) · Resolver Feedback (UD53) · Cloning Module (UD55) · Applications Module (UD70) · Modbus (UD70) · Serial Communications (UD71) · Profibus-DP (UD73) · Interbus S (UD74) · CTNet (UD75) · Modbus Plus (UD76) · DeviceNet (UD77) · CAN interface · High performance servo (UD78) · Unisoft Commissioning Software · Universal Keypad · CTIU Operator Interface Name UNI2403 Manufacturer Control Techniques Range Unidrive Stock Obsolete Heavy Duty KW 11 Heavy Duty Amp 25 Supply 380...480V AC Phase Three Phase Filter No Keypad Yes Width (mm) 190 Depth (mm) 200.0000 Height (mm) 335 No Digital Inputs 3 No Analog Inputs 3 Pulse Input No PTC/KTY Input No No Digital Outputs 3 No Analog Outputs 2 Relay Outputs No Pulse Output No NEMA No Loop Closed, Open Logic Negative, Positive Protection IP00 Application Fan & Pump, High Performa nce Normal Duty KW No Normal Duty Amp No
