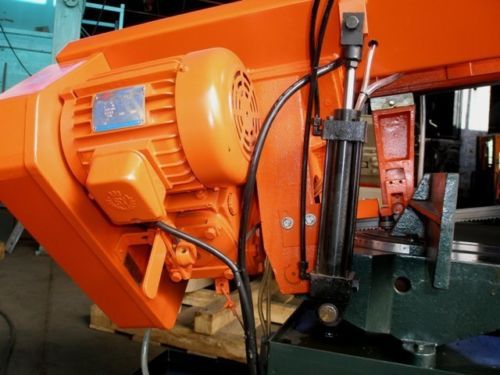

Cosen Model Mh-1016 Ja Horizontal Band Saw - New

US $3,995.00

Baltimore, Maryland, United States
Feb 14th

Open on mobile:
QR code

COSEN MODEL MH-1016 JA HORIZONTAL BAND SAW - NEW ------------------------------------------------------------------------------------------------------------------------------------------------------- COSEN 10" MANUAL MITERING CUTTING HORIZONTAL BAND SAW MH-1016-JA INVENTORY # 2135 MODEL: MH-1016-JA SPECIFICATIONS: CAPACITIES: ROUND: @ 90°: 10" @ 45°: 9" SQUARE: @ 90°: 9" x 9" @ 45°: 6 1/2" x 6 1/2" RECTANGLE: @ 90°: 14 1/2" x 9" @ 45°: 9" x 6 1/2" SAW BLADE: SPEED: 95, 150, 213, 321 FPM SIZE: 1" x 11' x .035" GUIDE: TUNGSTEN CARBIDE MOTOR OUTPUT: SAW BLADE: 2 HP / 230 V / 3 PH COOLANT: 1/8 HP / 230 V / 3 PH BED HEIGHT: 25.6" STANDARD FEATURES: STRUCTURE: HEAVY DUTY HYDRAULIC CYLINDER PLUS PRECISION GROUND HINGE SUPPORT AND GUIDE THE RUGGED SAW FRAME THROUGH THE ENTIRE CUTTING CYCLE. SPECIAL WEAR RESISTANT DU BUSHING IS USED TO ENSURE DURABILITY AND LONG USE LIFE CAST IRON QUICK SET UP VISE FEATURES STRAIGHT AND MITER CUTS FROM 90° TO 45°. IT ENABLES MITER CUTTING AT DESIRED ANGLES VIA THE LARGE EASY-TO-READ MITERING SCALE LARGE RUGGED BASE PROVIDES SUPPORT FOR THE HEAVY CAST, AND IT COMES WITH BUILT-IN COOLANT AND HYDRAULIC SYSTEMS TO OFFER BOTH SOUND AND STABILITY AND ALL-IN-ONE CONVENIENCE BLADE DRIVE: A 2 HP MOTOR, HEAVY-DUTY REDUCER, AND VARIABLE STEP DRIVE ASSEMBLY WITH EXCELLENT MECHANICAL DESIGN FEATURE THE ESSENTIALS FOR PRODUCTION CUTTING THE 4-SPEED TRANSMISSION IS EQUIPPED WITH THE BEST WORM GEAR SPEED REDUCER. THE WORM SHAFT IS HARDENED AND GROUND. TOGETHER, THE PROVIDE QUIET, POWERFUL, AND TROUBLE-FREE DRIVE BLADE GUIDANCE AND LUBRICATION SYSTEM: CARBIDE BLADE GUIDES WITH ROLLER BEARINGS PRE-ALIGN THE BLADE BEFORE ENTERING CARBIDE BLADE GUIDES. THIS FEATURE REDUCES WEAR ON BLADE GUIDES AND BLADE, THUS ENHANCING BLADE LIFE THE RIGID GUIDE ARMS ARE MOUNTED ON AN EXTRA WIDE PRECISION GROUND DOVETAIL SLIDE FOR A MORE SOLID AND SUPPORTIVE SURFACE. THIS RIGID DESIGN OWES TO USE OF SUPERIOR CAST-IRON WHICH GREATLY REDUCES VIBRATION AND ACHIEVES BETTER CUTTING RESULT TWO ADDITIONAL GUIDES LOCATED ON A CENTRAL AXIS SUPPORT THE BLADE FROM THE TOP, GIVING IT EXTRA PENETRATING FORCE. THE CARBIDE GUIDES ARE RELIEVED TO ALLOW COOLANT FLOW TO LUBRICATE AND COOL THE BLADE AS WELL AS WORK PIECE INTEGRAL COOLANT SYSTEM BLADE BRUSH TO REMOVE CHIPS FROM BLADE GULLET CONTROL AND ANIMATION: DOWN FEED RATE AND CUTTING PRESSURE CONTROL. THE FEED RATE MAY BE ADJUSTED BY SETTING THE DIAL BETWEEN 0 AND 10 VIA THE HYDRAULIC DOWN FEED VALVE. THE VAST RANGE OF ADJUSTMENT ALLOWS PROPER SETTING WHICH RESULTS IN LONGER BLADE LIFE, SHORTER CUTTING TIMES, AND BETTER FINISHES THE CONTROL PANEL IS CLEARLY ARRANGED AND CENTRALLY LOCATED ON TOP OF SAW HEAD AT CHEST LEVEL MATERIAL CLAMPING AND FEEDING: CAST IRON VISES SECURE CLAMPING VIA A DEPENDABLE MANUAL LEAD SCREW SYSTEM WITH ANTI-SLIP HAND WHEEL SAFETY: CONDUITS PROTECT ALL EXPOSED ELECTRIC WIRING AND HYDRAULIC CIRCUITS ALERT ORANGE FOR BLADE GUARDS AND ACCESS DOORS STANDARD ACCESSORIES: EASY BLADE CHANGE WITH FRONT ACCESS AT WAIST LEVEL ADJUSTABLE MATERIAL STOP BI-METAL SAW BLADE OPERATION AND PARTS MANUAL MECHANICAL SPECIFICATIONS: DIMENSIONS: 69" x 28" x 42 1/2" H WEIGHT: 1,010 LBS ***NOTE: (2) AVAILABLE IN BALTIMORE, MD (2-11-15): IN STOCK MACHINES ARE SUBJECT TO A $300.00 IN-BOUND FREIGHT CHARGE TO COVER THE COST WE PAID TO SHIP THEM INTO OUR WAREHOUSE TAKE A LOOK AT OUR OTHER SAWS HERE! CONTACTING NORMAN MACHINE TOOL, LTD: For immediate response to questions, please contact us at 1-800-394-4399 during business hours. (Weekdays, 9am - 5pm EST) If you contact us by email, or after business hours, we will answer your questions as soon as possible. NEW MACHINE NOTIFICATION TO PROSPECTIVE BUYERS: Norman Machine Tool, Inc strives to keep listings current for our customers. Manufacturer's specifications and availability are subject to change without notice. Stock photos are to be considered representations only and may show optional accessories, different models, or possible color differences from the actual machine being offered for sale. CONTACT US: Norman Machine Tool Group 1311 South Ponca St Baltimore, MD 21224 Phone: 800-394-4399 Fax 410-633-7737. Business Hours: Monday-Friday / 9 a.m. - 5 p.m. (Closed most Holidays - Call if not sure) RETURNS Returns will not be accepted without prior approval. If you need to make a return, please contact us before you ship the merchandise back so we can issue you a Return Merchandise Authorization (RMA) number. All items are sold with the best intentions and most complete description available. PLEASE ASK QUESTIONS BEFORE BIDDING!!! Buyer must pay for return shipping. RUN THREE PHASE MOTORS WITH SINGLE PHASE POWER Use a Phase-A-Matic Static or Rotary Phase Converter. Buy the best & buy Phase-A-Matic. Phase-A-Matic phase converters are proven to last for 20 to 30 years. You can run multiple three phase motors from just one phase converter, allowing you to run multiple three phase motors off single phase power! View Phase-A-Matic in our Phase Converter aisle of our eBay store! ............ DISCLAIMER: The information and pictures are believed to be accurate to the best of our knowledge, obtained from sources deemed reliable. However, we do not guarantee accuracy of information and cannot be responsible for any errors or omissions. An inspection should be made. The information on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Please contact one of our sales representatives if you require more information or a current formal quotation. NORMAN MACHINE TOOL, LTD. CONDITIONS OF SALE: INSPECTION AND TEST EQUIPMENT Inspection & Test Equipment will be sold "AS IS" with a conditional return policy on a case by case basis. Please ask questions! The equipment's condition stated in the listing is accurate to the best of our knowledge. We do not specialize in these products and have no way of checking them beyond visual and some minor mechanical functions. We assume most of this equipment must be calibrated professionally. We feel the low prices we offer more than makes the equipment a great value! MDNA 30 DAY WARRANTY Every used machine offered (unless sold on an "as is" basis or brokered) bears a thirty day return privilege. In the event it is found mechanically unsatisfactory (excludes electrical*, as well as original manufacturer’s accuracies and tolerances), it may be returned within thirty (30) days of shipment, freight prepaid, provided it is in the same condition as when shipped from Norman Machine Tool, Ltd., for full refund of purchase price or repaired at the seller's sole discretion. All new machines that have been manufactured by others that have warranties, expressed or implied, are hereby expressly limited to the warranty of the original manufacturer of the goods. All implied warranties of merchantability and fitness for a particular purpose are hereby disclaimed and excluded from this agreement. Care is taken to give reliable descriptions but these are not guaranteed and prospective purchasers are advised to check vital details. We also reserve the right to correct any stenographic errors. All specifications and descriptions of said goods are approximate only. Seller makes no representation or warranty that said goods conform to any specification, description and condition or performance, it is the buyer's responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyer's requirements. Any warranty concerning said goods made by a third party is enforceable only against the third party and not the seller. Conforms to the mdna code of ethics. 30 Day MDNA Warranty applies to items sold at the advertised price.This warranty does not apply to Best Offers without prior agreement, or items sold As-Is. PAYMENT DETAILS: Norman Machine Tool Ltd. gladly accepts PayPal, Visa, Master Card, American Express and Discover. We can run your credit card at our warehouse, or if your prefer, even without an account, you can sign into PayPal as a guest and use your credit card. Local pickups at our warehouse in Baltimore, MD are required to pay 6% Maryland state taxes to abide by Maryland state laws. SHIPPING DETAILS: When payment has cleared, large items that must be shipped via truck will ship as soon as the truck can be secured, usually within 10 business days. Special preparation, such as crating, will delay shipment and will be available at additional cost. We can secure your equipment on a pallet, starting at $50 and varying based on the equipment size, weight, and materials needed. The buyer pays for all shipping. All items need to be paid for within 72 hours of auction end. Go Back to Our Store Homepage Powered by SixBit's eCommerce Solution On Feb-11-15 at 09:35:07 PST, seller added the following information: Sellers: Delight buyers. Get your own map of past buyers.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	MH-1016 JA
MANUFACTURER	COSEN
