Covered Waterproof Led Rocker Toggle Switch Spst Marine 12v Panel Mount Red R1a

US $13.95

Carmel, California, United States
Jun 9th

Open on mobile:
QR code

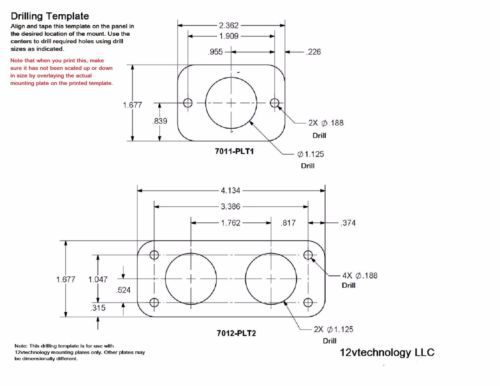

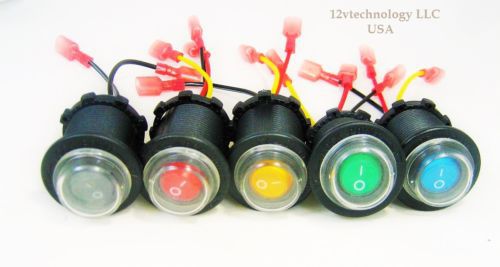

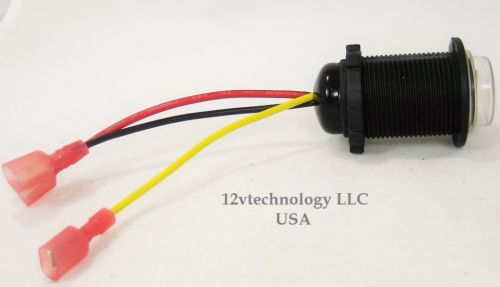

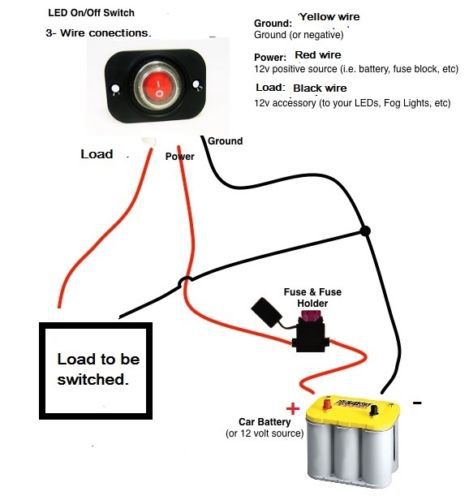

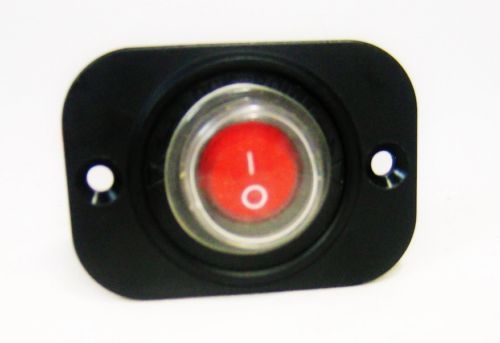

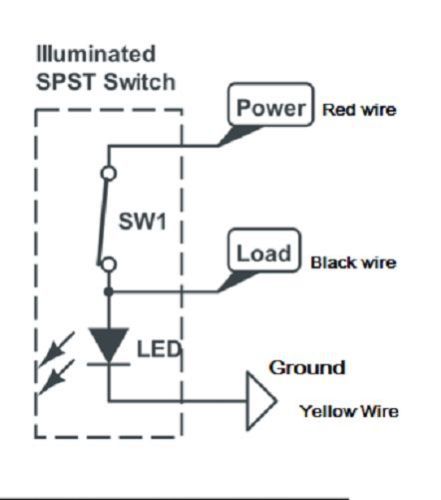

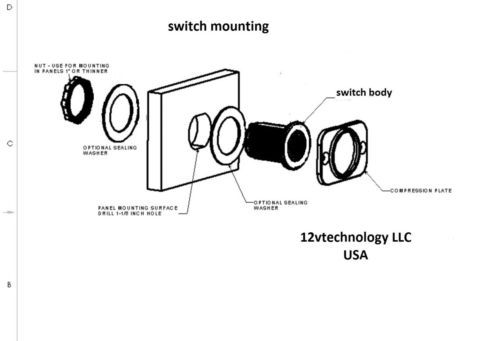

New and improved clear cover seal that protects the switch from water. Positive feel when switch toggles. Assembled and ships from the USA. Patent Pending. -Splash proof front and back. #SWR1a -Red Illuminated Waterproof Rocker Switch –SPST ( illumination is optional can be used a two wire SPST switch) -Nylon threaded switch housing mount in a 1-1/8” hole. Can be mounted in panels or dashboards up to 1-1/4” thick with the retaining nut and in panels of unlimited thickness with the mounting plate. -12 volt operation: Rated for 16 amps at 12 volts. -IP rating 63 -Has male 1/4 ” crimp style disconnect terminals. -Illumination is low intensity for easier night vision. -Three wire connection: Yellow wire goes to negative 12 volt power source. Black wire goes to one side of the load being switched. Red wire goes the positive side of the load being switched. -Other colors available at our other listings. Options: -Add a rubber occlusive sealing socket washer. Makes an extra waterproof seal when mounting the socket against a panel. The washer goes between the socket flange or nut, and the panel to seal the assembly. See listing 301066433426 . -Add wires with a fused 60 inch (5ft) wire harness to your socket assembly. The harness comes with of a fuse holder and fuse, and red and black wire connectors to attach to your socket and battery. See listing 121264213736. -Add a double mounting plate. Allows you to mount two socket products side by side for a professional installation. See listing 121267652997. -Add mounting plate black screws. Allows you to mount your socket with plate in a panel of unlimited thickness. See 121435313871 -Add a mounting hole bore. Allows you to drill or enlarge a hole in your panel or dash to mount this product. See 121486220109. -Add a Magic Socket Mounting Plate Stainless Steel Washer Assembly- with the Magic Washer the socket mounts in front of the plate and is held in place with the socket nut so the assembly becomes unified. Now the assembly is free standing and may be mounted as a free standing panel in any size opening. Buy 121555660699. -Add a heavy paper, actual size mounting plate, drilling template set to your purchase. Allows you to position the location of the holes that need to be drilled for your installation. See 121581701935. -Add a four hole quad mounting plate. Allows you to construct a custom square panel/ dashboard of four socket elements; switch, alarm, voltmeter, USB charger and special socket type. See 121644713148. -Add a custom label or marker. A label frame fits around the front flange face and allows you insert a labeled tag. See # 121742656759

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	12vtechnology
MPN	swr1a
Model	swr1a
