Cpld Core Board Altera Epm240 Epm570

US $49

???, ???, China
Jan 29th

Open on mobile:
QR code

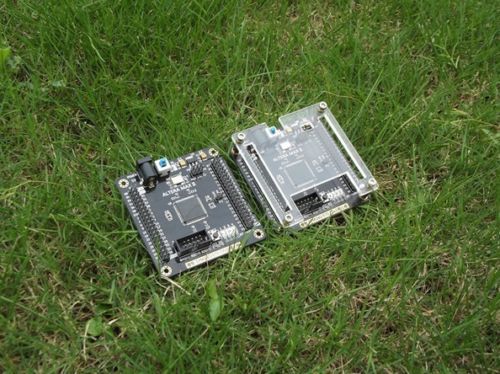

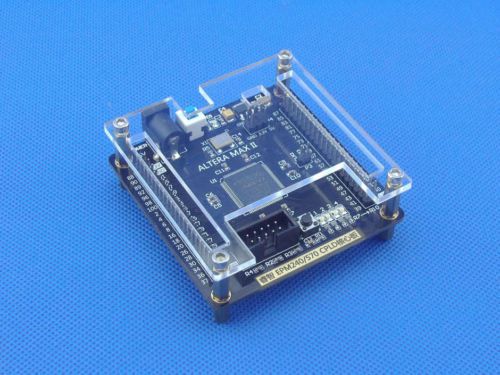

CPLD core board Altera EPM240 EPM570 This is actually the equivalent of core board minimum system board of ALTERA MAX II CPLD chip series, and with the support of Altera downloader: As Byte-Blaster and USB-Blaster (shop sale) together for product validation and development. In addition to the main chip on the board, but also stay out of JTAG and power interface, and use 2.54mm pitch 2 * 20 pin, leads all the pins, simply connect the 5V power supply can work, easy to use. As CPLD / FPGA is very low-cost entry-appropriate. Scope: individual self, complete set, CEC, product validation, development, etc. Hardware resources: Onboard the main chip EPM240T100C5N Active onboard 50MHz oscillator provides the master clock system works; Provide alternate clock pads (must provide own their own needs clock back on the PCB) Using 1117-3.3V voltage regulator chip, providing CPLD operating voltage; Careful decoupling design, using a large number of decoupling capacitors; Provide 5V DC power outlet; Red Power LED Self-locking button power switch; A system reset button Reset, may also be used as the user input keys; All IO port pin through 2 * 20 leads, 2.54mm pitch; All IO pin numbers are clearly marked, the course is not always see the schematic I / O pins correspond very convenient Shipping list: Core board x1 Power 5V/1A x1 Supporting transparent protective plate x1 Sets of studs and screws x1 Payment We accept the payment via PayPal only. Payment is expected within 5 days of the auction's end. Availability of the item can not be guaranteed if no payment received in 3 days. Please don't purchase if you are not intend to pay. Unpaid item will report to eBay and get the warning. . Shipping & Handling 1.Items are shipped from china.we will send out within 2 working days after receive the money. 2.We usually send the parcel by Singapore Post Air Mail or HongKong Post Air Mail. After send out,most country will arrived the parcel in 12-25 business days. We also can provide Express,such as Fedex,DHL,EMS,usually 3-7days to most country.If you need Expedited shipping,contact us. The global shipping is difficult to control sometimes,if you havent receive after 25days,contact us,we will check for you. 3.We send to the address of ebay add info,please check your add info of ebay is correct. 4.Some conutries,such as Italy,Brazil,we can ship to,but it usually needs more than 30days to arrive,if you dont care the long time of shipping,contact us. Warranty and Return 1.If you are not satisfied when you receive your item, please return it within 14 days for a replacement or money back. Please contact us before you return it. 2.If item is defective in 14 days, We will send you a replacement without extra charger, or offer refund after we receive the defective item. 3.If item is defective after 14 days, you can still send it back to us. We will send you a new one after receiving the defective item. But you have to pay the extra shipping free. Feedback please leave behind your positive feedback for us after you receive the item, no matter whether you are satisfactory with my item, we will leave behind the same to you. If you want to leave a negative feedback,please contact me at first, we trust that everything could be issued before you leave it. Contact us We work 6 days except Sunday and public holidays. Please feel free to contact us anytime if you have any questions , We will try our best to help you.
