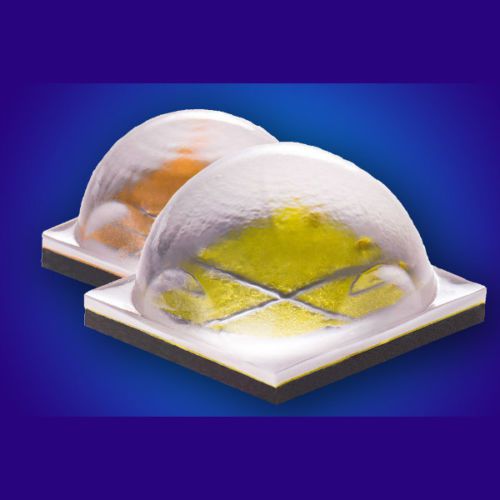

Cree Xlamp Xhp 70 32w 4000 Lumens High Power Led Emitter

US $29.99

  • Hong Kong, Hong Kong
  • Feb 25th
Open on mobile:
QR code
Description: Powered by Cree’s groundbreaking SC5 Technology™ Platform, the XLamp XHP70 LED is a member of Cree’s Extreme High Power (XHP) class of LEDs that redefines lumen density and reliability to radically reduce system costs by up to 40 percent. At its maximum current, the XHP70 LED delivers twice the light output of the industry’s brightest single-die LED, the XLamp MK-R LED, at a similar lumens per watt and without increasing the package footprint. The XHP70 LED also achieves longer lifetime at higher operating temperatures. The overall result is significantly lower thermal, mechanical and optical costs at the system level. Specification: Product name Cree XLamp XHP 70 LED Model XHP 70 Size (mm x mm) 7.0 x 7.0 Product options 6-V / 12-V Maximum drive current (A) 4.8 (6-V), 2.4 (12-V) Maximum power (W) 32 Light output Up to 4022 lm @ 32 W Typical forward voltage (V) 5.8 @ 2100 mA (6-V), 11.6 @ 1050 mA (12-V) Viewing angle (degrees) 120 Binning 85°C, ANSI White, 2-, 3- & 5-Step EasyWhite® Thermal resistance (°C/W) 0.9 Reflow-solderable Yes – JEDEC J-STD-020C-compatible RoHS and REACH-compliant Yes UL-recognized component Yes – Level 4 Enclosure Consideration    Package inlcuded: 1 x Cree XLamp XHP 70 LED
