Crestron Isys Touchpanel Interface Tps-tpi New Open Box!

US $1,499.99

Olathe, Kansas, United States
Mar 27th

Open on mobile:
QR code

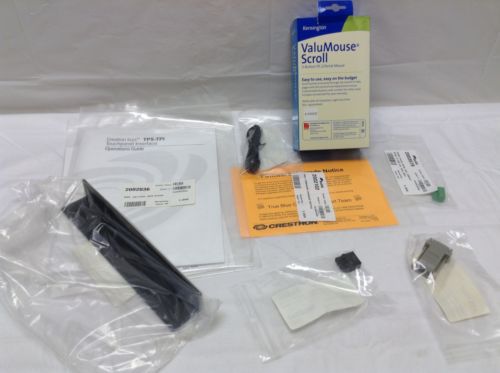

Customer Service: (913) 768 - 8000 Crestron Isys Touchpanel Interface TPS-TPI NEW OPEN BOX! Crestron Isys Touchpanel Interface TPS-TPI NEW OPEN BOX! Condition: New Open Box: Unit is brand new inside an original, opened manufacturer box. New inside the original opened retail box. Actual item pictured. The TPS-TPI is designed to allow system designers to interface non-Crestron touchscreens with the Crestron control system, transforming the third-party touchscreen monitor into a full-featured Isys touchpanel. The TPS-TPI may also work with plasma displays equipped with a touch-sensitive overlay, interactive white boards, graphics tablets, and more. The TPS-TPI includes support for touchscreen-based products from 3M/Microtouch®, SMART Technologies®, and others. Users also have the flexibility to navigate the graphical interface using an onscreen cursor driven by a serial mouse. Even without a touchscreen attached, the TPS-TPI makes an exceptional high-resolution graphics/display generator perfect for voting displays, kiosks, command centers, and more. Adding an RGB graphics card to the TPS-TPI enables the display of computer signals with resolutions up to 1600 x 1200, which may be scaled to any size window. Video capability is just as easily added, enabling the display of up to two simultaneous full-motion video windows. Audio features include built-in amplified stereo speakers, volume control, and line-level stereo input and output. Customized WAV files may be loaded on the TPS-TPI to provide audible feedback, button clicks, and voice prompts, which may be played through the built-in speakers or output to a sound system or external amplified speakers. An optional high-speed Ethernet card may be installed to enable communication over IP with the control system, or with multiple control systems throughout a campus facility or worldwide. Manufacturer Part #: TPS-TPI Processor CPU 32-bit Motorola ColdFire® Microprocessor Processing Speed 63 MIPS (Dhrystone 2.1 benchmark) Memory 16MB flash upgradeable to 32, 64, or 128 MB with plug-in memory modules; 32MB DRAM Graphic Engine Isys engine, 16 Bit non-palette graphics with color key video window capability, 65,536 colors (262,144 colors for video*), Synapse image rendering algorithm Ethernet* With TPS-ENETL : 10/100BaseT, autonegotiating, full/half duplex TCP/IP, UDP/IP Video and RGB* Video Accepts (1) TPS-VIDL-1 or (1) TPS-VIDL-2 card RGB Accepts (1) TPS-XVGAL card (See individual expansion card specifications) Audio Features Built-in amplified stereo speakers, line/headphone output, internal volume control and audio mixer, WAV file capability WAV file 8 & 16 bit PCM, mono & stereo, 8 – 44 kHz sampling rates Amplification 2 Watts per channel for built-in stereo speakers Connectors AUDIO INPUT (1) 6-pin 3.5mm detachable terminal block; Balanced/unbalanced stereo line-level input; Input Impedance: 20k ohms balanced, 10k ohms unbalanced; Maximum Input Level: 4 Vrms balanced, 2 Vrms unbalanced NET (1) 4-pin 5mm detachable terminal block; Connects to Cresnet control network RS-232 (1) 6-pin RJ11 female; Serial connection to PC for loading screen files; Bidirectional RS-232 up to 115.2k baud; Hardware and software handshaking support; RS-232 connection for touchscreen monitor, touch-sensitive overlay, or pointing device; Contact Crestron to confirm compatibility LAN (1) 8-wire RJ45 with 2 LED indicators (TPS-ENETL card required); 10/100BaseT Ethernet port*; Green LED indicates link status; Yellow LED indicates Ethernet activity NTSC/PAL INPUT (Balanced) (1) 6-pin 3.5mm detachable terminal block (TPS-VIDL-1/2 required); (2) Composite [or (1) S-Video] inputs, balanced*; 100 ohms balanced; Connects to any Crestron CAT5 balanced video source NTSC/PAL INPUT (Coaxial) (2) BNC female (TPS-VIDL-1/2 required); (2) Composite [or (1) S-Video] inputs*; 75 ohms terminated RGB INPUT (5) BNC female (TPS-XVGAL card required); R,G,B,HS/CS,VS connectors* AUDIO OUTPUT (1) 3.5 mm TRS mini phone jack; Connects to stereo headphones or external amplified speakers (not included); Output power: 12mW; Minimum impedance: 32 ohms VGA OUTPUT (1) DB15 HD female; RGBHV output; Connects to touchscreen monitor or display device Power Requirements Cresnet Power Usage 10 Watts (0.417 Amp @ 24 Volts DC) – without expansion cards Environmental Temperature 41° to 113°F (5° to 45°C) Humidity 10% to 90% RH (non-condensing) Enclosure Black metal, shelf or surface mount, removable mounting ears included Dimensions Height 9.45 in (24.00 cm) Width 15.20 in (38.61 cm) – with ears Width 12.49 in (31.71 cm) – without ears Depth 2.92 in (7.42 cm) Weight 3.9 lbs (1.77 kg) – with ears, without expansion cards Shipping Enjoy fast and reliable shipping when you buy your products from Bstock. Your order will be hand-packed at our warehouses in the heart of Kansas, minimizing delivery times and ensuring you get your purchases as soon as possible. We utilize a variety of couriers, but our preferred service is FedEx. And of course, we include tracking with your purchase. Payment Bstock has partnered with PayPal to offer you the very best in payment services. PayPal allows you to buy with confidence, knowing your payments are processed quickly and securely with state-of-the-art encryption technology. Returns Bstock understands that not every purchase is a good fit for every customer, and sometimes items we've ordered aren't quite the ones we want. On all purchases, except those specifically marked, we include a 14 day return policy, whereas the buyer pays the return shipping. Recent additions

“Unit is brand new inside an original, opened manufacturer box.”

Part

TPS-TPI
