Crius All In One Pro Flight Controller V2.0 Ver Pirate/mwc/arduplaneng In Us

US $38.36

United States
Mar 7th

Open on mobile:
QR code

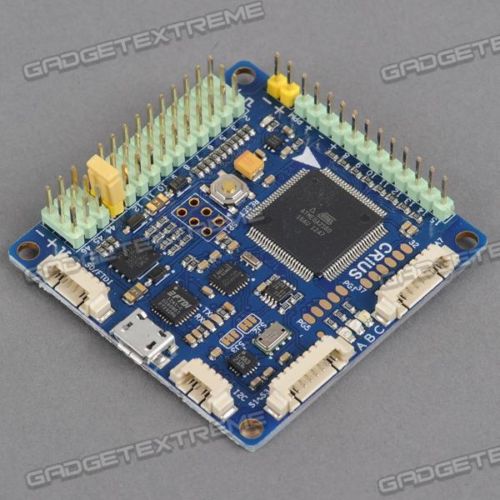

CRIUS All IN ONE PRO Flight Controller V2.0 Lastest Ver Pirate/MWC/ArduPlaneNG MultiWii Item loction:Oxford,CA,around 4-5 business days to US and Canada buyers Description: CRIUS All IN ONE PRO Flight Controller V2.0 Lastest Ver Pirate/MWC/ArduPlaneNG MultiWii Features: - Supported MegaPirateNG/ ArduCopterNGi 1/4 ?/ArduPlaneNG/MultiWii/AeroQuadand firmware - Up to 8-axis motor output - 8 input channels for standard receiver and PPM SUM - 4 serial ports for debug/Bluetooth Module/OSD/GPS/telemetry - 2 servos output for PITCH and ROLL gimbal system - A servos output to trigger a camera button - 6 Analog output for extend device - A I2C port for extend sensor or device - Separate 3.3V and 5V LDO voltage regulator - Built-in 16Mbit data flash memory chip to record the data automatically - ATMega 2560-16AU Microcontroller - MPU6050 6 axis gyro/accel with Motion Processing Unit - HMC5883L 3-axis digital magnetometer - MS5611-01BA01 highprecision altimeter - FT232RQ USB-UART chip and Micro USB receptacle - On board logic level converter - Match the standard of RoHS - Flight mode for Multiwii One of the following basic mode - Acro - Level - Alt Hold - Head Lock - Optional mode - HeadFree (CareFree) - GPS Hold (Need GPS receiver or Extend Board) - GPS Back to home position (Need GPS receiver or Extend Board) - Flight mode for MegaPirate - Acro - Alt Hold - Simple - Loiter (uses GPS) - Guided (uses GPS) - Position (uses GPS) - Circle (uses GPS) - RTL (uses GPS) - Auto(uses GPS) - Follow Me(uses GPS) - Input power selection - One of the following way - Connect 5V power cable from ESC or UBEC to the ESC/Servo port, the J1 jumper must be closed. - Connect 5V~12V power cable to the extend power port, the J1 jumper must be removed. When using Extend Board, AIO PRO must be powered from the extend power port. General: - Dimension: 50mmX50mm - Height: 11.6mm - Weight: 14.2g - Fixing hole spacing: 45mm - Hole diameter: 3.1mm Package included: - CRIUS AIO PRO v1.0 Flight Controlx1 - JR/3Pi 1/4 ?3P cablex1 - JR/3Pi 1/4 ?1Px3 cablex3 - 1.25mm 4P cablex1 - 1.25mm 6P cablex2 - 1.25mm 8P cablex1 Note: not included Micro USB cable. Shipping & Payment: Here Offer 100% Satifiation Service,Inlucde re-send item&refund payment; All items here offer 1 year warranty It is not my Duty for Custom Tax All items will be shipped via int'l air mail(( no tracking number for items under $50), the time normally takes 7-15 business days. may be later arrivel if the item is checked by custom; We only accept paypal payment.
