Dab Dab+ Fm Digital Radio Development Board Pro With Slideshow

AU $86.00

Sydney, NSW, Australia
Jan 29th

Open on mobile:
QR code

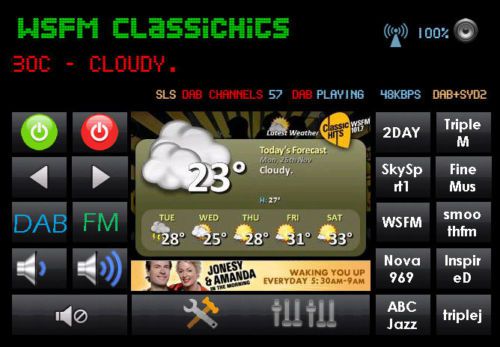

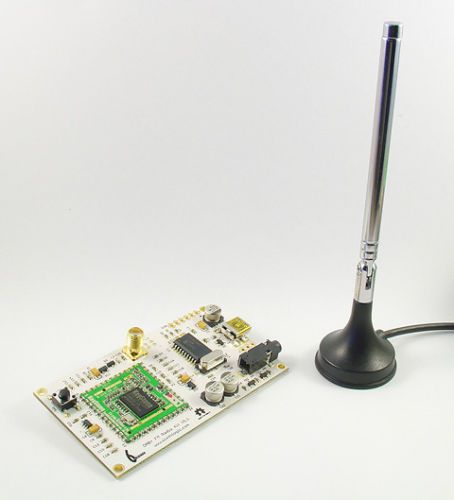

DAB+ FM Digital Radio Development Board Pro Overview Designed in Australia, the DAB+ FM Digital Radio Development Board Pro with SlideShow provides a platform for developing and evaluating DAB+, SlideShow and FM receiver. The board contains a Keystone T2_L4A_8650C DAB/FM module and a Microchip PIC18F14K50 microcontroller. The T2_L4A_8650C module is an ultra low power DAB/FM receiver module with the following features: ETSI EN 300 401 compliant receiver DAB/DAB+ sensitivity to -99dBm (typical) Decodes multiple audio services up to 256kbps without external RAM FM with RDS (RDS reception is subject to certain condition of power level and frequency deviation) Combined antenna input for FM / Band3 Support DAB L-band reception (*** Although the Keystone module supports L-Band, the SMA connector has no connection to the L-Band pin, customer will need to solder a separate antenna and other passive components to make it work.) Serial control interface RoHS compliant SlideShow The Microchip PIC18F14K50 provides a USB to Serial interface for the T2_L4A_8650C module to communicate with the host PC. Despite the sample code provided in this Development Board for communicating with the board is based on serial communication, user can analyse the serial communication and implements a driverless HID protocol by rewriting the firmware on the PIC18F14K50. Board Dimension 78mm x 45mm What can you do with it? Build a PC controlled DAB+ FM Digital Radio Build a CAR PC DAB+ FM Digital Radio Build a standalone DAB+ FM Digital Radio (requires external microcontroller) New SlideShow Feature Board will display SlideShow transmitted from the radio stations. SlideShow including weather, news, album cover, race odds, etc. Feature Summary KeyStone T2_L4A_8650C DAB/DAB+/FM radio module Microchip PIC18F14K50 USB Flash Microcontroller 12 Mhz crystal standard ICSP programming port for programming the PIC18F14K50 EXT port logic signal for controlling external audio chip power and mute status LED, RX (orange) and TX (green) power LED (red) Bootloader push button 1.2VDC, 1.8VDC, 3.3VDC LDO 3.5mm stereo jack SMA antenna connector Dimensions : 78mm x 45mm HARDWARE DESCRIPTIONS Power Supply Circuit The board is typically powered by 5VDC from USB. The PIC18F14K50 is drawing power directly from the USB. From the USB’s 5VDC, the power is further distributed into 1.2VDC, 1.8VDC and 3.3VDC LDO to the KeyStone T2_L4A_8650C module. The power of these three LDO is controlled by the SHDN pin. Microchip PIC18F14K50 This microcontroller is used to provide a Virtual Serial Port to the KeyStone module. It is flashed with a customised CDC RS-232 Emulation Demo firmware. Other than performing the standard serial emulation, it also control the power, reset and audio shunt of the KeyStone module. Reset Circuit Reset of the module is performed by RESET pin emulated by DTR of the virtual serial port. ICSP The ICSP programming port is the standard Microchip’s In-Circuit Serial Programming port and is compatible with Microchip’s PICkit. EXT EXT port has two 5V logic signals, ?SHDN and ?SHNT. They are used to control external audio circuitry’s power and mute. Push Button (SW1) This button, when pressed during a power-up, will trigger the PIC18F14K50’s USB HID bootloader in programming mode. Schematic & Getting Started Schematic and user manual can be downloaded from here. Demo Software VB.NET demo software complete with source code Open source demo software with C source code can be downloaded from here: VB.NET demo software source code (updated 9th December 2012) KeyStone DAB DAB+ FM Module Programming API PIC18F14K50 C firmware source code (updated 19th August 2012) Packing List 1 unit of DAB+ FM Digital Radio Development Board 1 unit of retractable antenna Pre-installed Software Microchip's USB bootloader (programming the board using a normal USB cable) Microchip's CDC RS-232 emulation firmware DAB+ Channels Received around Sydney, Australia 2SM Talk & Sport GorillaDanceHits ZOO MusicVariety 2DAY Triple M Radar New Music Battleship Radio Barry Comedy 2UE News Talk SkySportsRadio1 SkySportsRadio2 Sky Racing World 2MBS Fine Music Koori Radio 2RPH Digital 2OOO Languages WSFM ClassicHits Mix 106.5 Edge Digital WSFM Plus CW Mix 90's Mix 80's Sydney's 95.3 Nova 969 NovaNation Koffee 2GB 873 2CH EASY 1170 The Crack Inspire Digital 2SER 107.3 2MFM Muslim DR FBi Radio ABCNewsRadio ABC Dig Music ABC Jazz ABC Country ABC Extra 702 ABC Sydney ABCRadioNational ABC Classic FM ABC Grandstand triple j triplejUnearthed SBS Radio 1 SBS Radio 2 SBS Chill SBS PopAsia SBS Radio 6 DAB+ Channels Received around Melbourne, Australia - Reported by Customer RSN-Racing&Sport 1116 SEN KOOL 3MP MyMP Aussie Nova 100 91.5 FM NovaNation Koffee 3RRR Digital 3 Kool N Deadly LightDigital 3MBS Fine Music 3ZZZ Ethnic 3AW Magic 3AW+ Buckle Fox Triple M RADAR-New Music Main Stage-Soul Barry Comedy Gold104.3 Mix101.1 Edge Digital Gold Plus CW Mix 90's Mix 80's 3CR Digital IRIS VA Radio PBS Digital SYN youth radio DAB+ Channels Received around Perth, Western Australia - Reported by Customer 720 ABC Perth ABCRadioNational ABC Classic FM ABC Grandstand triple j ABCNewsRadio ABC Dig Music ABC Jazz ABC Country ABC NAIDOC triplejUnearthed SBS Radio 1 SBS Radio 2 SBS Chill SBS PopAsia SBS PopAraby SBS PopDesi SBS Radio 6 92.9 Mix 94.5 RADAR-New Music MainStage-Soul Buddha Radio 6iX Digital My Perth Digital HotCountry Perth 6PR Buckle 96fm Nova 937 NovaNation Noongar Radio Curtin DiGital InformationRadio RTRFM 92.1 6EBA World Radio Capital Digital Sonshine Digital DAB+ Channels Received around Central London, UK - Reported by Customer Chill Choice Heart Heart Slides LBC 97.3 Capital KISS MAGIC Real Radio XS Sunrise Radio heat radio EPG+Slideshow French Radio Ldn Absolute Rad 70s XFM KERRANG! Gold - London Punjabi Radio BBC London Spectrum Radio THE HITS Voice of Russia Absolute Rad 00s UCB Gospel Sout Al Khaleej UCBInspirational BBC Radio 1 BBC Radio 2 BBC Radio 3 BBC Radio 4 BBC Radio 5 Live BBC Radio 1Xtra BBC Radio 6Music BBC Radio 4Extra BBC AsianNetwork BBC WorldService BBC Guide BBC Travel Polish Radio Ldn Absolute Rad 60s LBC News 1152 Absolute C Rock Kismat Radio IBC Tamil Desi Radio Premier Gospel Gaydar Radio Rainbow Radio IBC Asia The Arrow - Rock Colourful Panjab Radio NOTE: Reception is location dependent. International buyer: *Germany buyers please buy directly from CarTFT.com, UK buyer please buy directly from Cool Components UK. Buyer is responsible for custom clearance and clearance fees, please check with your local authorities before bidding on this item. If the item is withheld by the custom, it is your responsibility to arrange for clearance. If the item is sent back to me, I could only refund the winning price, postage paid is not refundable. Please do not bid if this is an unacceptable term. Australia Post Registered mail has no tracking service, however it is insured up to AUD100, please take note.

Condition:	New	Brand	Sixth Logic
Model	SLG-001
