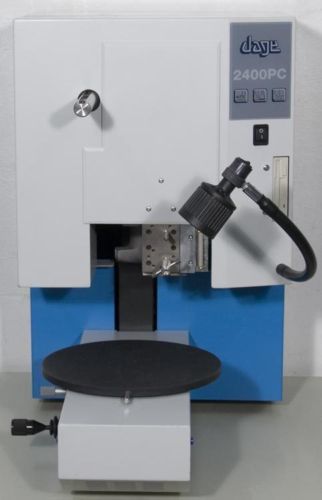

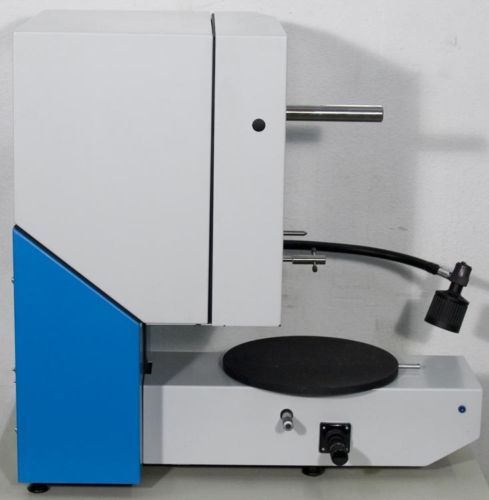

Dage Pc2400 Micro Bond Tester (die, Ball, Wire-pull) W/computer + 1 Cartridge

US $5,999.99

Phoenix, Arizona, United States
Feb 27th

Open on mobile:
QR code

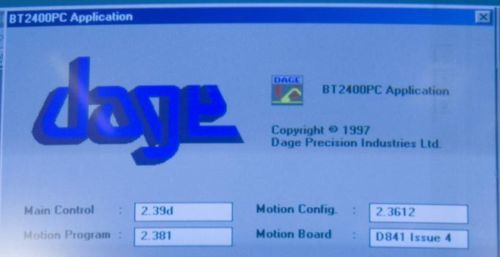

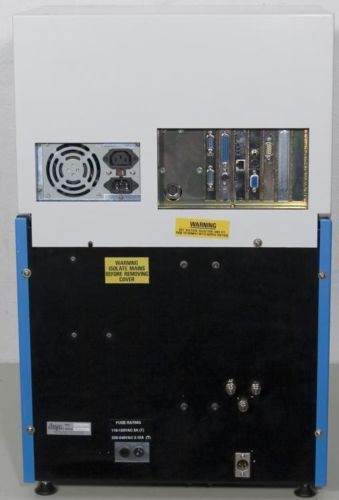

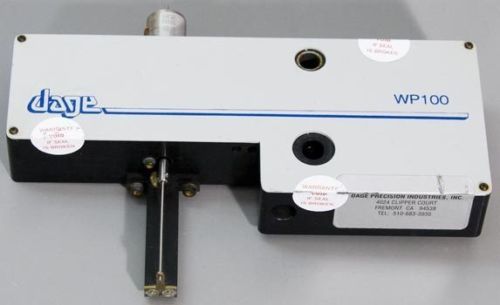

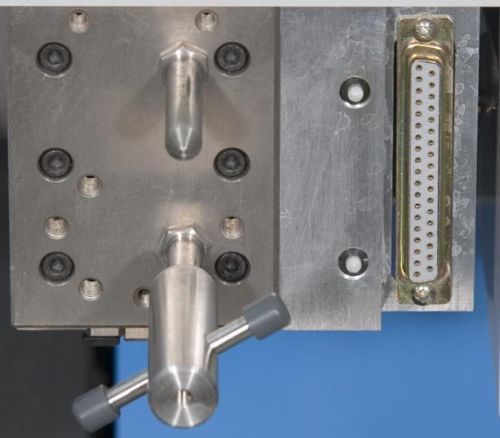

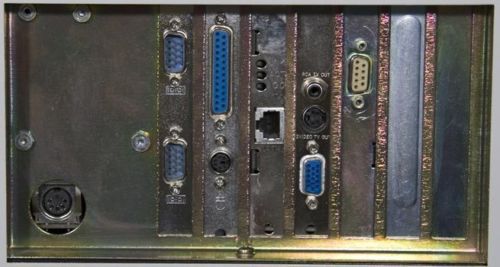

Click Here. Double your traffic. Get Vendio Gallery - Now FREE! Dage PC2400 Microtester for Ball Shear, Die Shear, and Wire-Pull Testing (Destructive or Non-Destructive) with Choice of Cartridges (BS5kg or WP100) Comes with a manual and what you see in the pictures. If you don't see it, you probably wont get it. Specifications are from Dage and may vary slightly due to upgrades, options, or revisions this unit may or may not have. The unit powers up but we do not have the means to fully test it. Cartridge choice of BS5kg or WP100. All other cartridges referenced in this auction can be purchased from Dage. We do not have the software in disk form, but it is installed on the computer. The monitor, keyboard, and trackball are NOT included! Additional systems available, only 1 sold in the auction. The Unit's Serial Number Tag Reads: Model Number: Series-PC2400 Serial Number: 950510 Power Requirements: 110-120 VAC @ 5 A, 220-240 VAC @ 3.15 A Software/Configuration Versions: Main Control: 2.39d Motion Config: 2.3612 Motion Program: 2.381 Motion Board: D841 Issue 4 Dage BT2400PC Application 1997 Windows 98 Cartridge Information: Model Number: 2400PC-BS5KG, Serial Number: 960174, This is a Ball Shear Cartridge for 5k grams Model Number: 2400PC-WP100, Serial Number: 960692, This is a Wire-Pull Cartridge for 100 grams YOU GET CHOICE OF 1 OF 2 CARTRIDGES INCLUDED IN THE PRICE! (That means you do not get all 2, you get 1) Features: Pentium motherboard installed versus standard EPROM board configuration Windows 95 software interfaced to system hardware by motion control card PC Monitor used versus typical LED-type display Automatic Calibration and Linearity Checks Advanced Load Cartridge Design Mouse-driven operation for machine set-up, control and analysis operations Floppy and hard drives include for introduction and storage of test configurations and results Comprehensive range of analysis screens and test result files allow data analysis directly on the PC2400T. Information can be printed using standard Windows print options. Results are automatically stored on the hard disk in CSV text file format and can be exported to floppy disk, RS232 port or directly to a factory mainframe via a network. Quick release design ensures that change-over time between test functions is minimized 100% Visual Inspection (Yield): All wafers which are bumped are inspected for yield and defects. An automated inspection system is used to scan and record all defects on the wafers. Bump Height and Uniformity: The general requirements for solder bump size are such that if they provide sufficient solder height in order to produce adequate chop stand-ff, enabling power underfill and increased reliability. In addition, sufficient bump-to-bump uniformity is required in order to provide a consistent image to the flip chip placement machine image recognition system, to ensure all bumps are adequately fluxed, and to ensure sufficient proximity to substrate traces such that sound solder joints are formed during assembly reflow. Typical testing protocol would be to test 1 wafer/lot, 5 die/wafer, and 20 bumps/die. Even though this process is automated, it still requires a significant amount of time to complete with the accuracy desired. Description: The PC2400 is a Microtester with a fully configured tower style machine control computer. Supplied with a manually adjustable X-axis table. The PC2400 is a multi-function, semi-automatic test facility, offering extremely versatile destructive and non-destructive testing (NDT) or ball-bonds, and wire pull. Applications include: Ball shear, aluminum wedge shear, low force die shear. The system caters for these types of bond test using up to 5 kg force. Die shear using up to 100 kg force. Wire-pull testing using up to 10 kg force. This versatility is achieved using a wide range of accessories and land cartridges. Shear Testing: The PC2400 has a unique 'programmable shear height' feature that gives consistently accurate positioning over a wide range of height applications. The height reference is taken, prior to the shear, from a soft landing of the shear tool on the substrate adjacent to the bond being tested. Normally, the interfacial bonding area of a wire's ball bond is in the order of 6 to 10 times the cross sectional area of the wire, therefore conventional wire pull tests cannot detect poor quality ball bonds which are potential failure points under normal operating conditions. Micro-shear testing enables the physical strength data for a ball bond to be correlated with weld areas, and subsequently related to life test results. As well as contributing to the control of wire bonding processes, micro-shear testing can also provide information on the metallization, alloying and cleaning of semiconductor front end work. Wire Pull Testing: A range of wire pull test cartridges allows the machine to test bond strength over a wide range of loads. Wire pull test cartridges are available from Dage in two basic forms: one using a hook for pulling, the other a tweezer grip. Computer Control: The PC2400 is controlled by an industry standard IBM PC compatible computer which is used to operate the machine under the direction of the operator, and to store, manipulate and display test data. The computer must be correctly configured to include the servo-motor-control card and the PC2400 application software, supplied on standard IBM compatible high density 3.1/2" diskettes. Product set-up 'recipes' and the results obtained using the machine are saved on the computer hard disk and, for additional security, can be copied to a removable diskette. The system records test results to enable quality audits to be carried out. Password protection is provided to safeguard result data, and also to prevent unauthorized access to important machine set-up functions. The machine program is designed to run under the Microsoft Windows operating environment. The application software must be run on the machine control computer but is network compatible and will support all Windows compatible cards. Machine Specifications - General Operating Parameters: Z Axis Travel: 73 mm (2.87") Work Holder: X Axis Travel: 25 mm (1.0") manual adjustment, 23 mm (0.9") motorized adjustment Y Axis Travel: 23 mm (0.9") Maximum Test Force: Z Axis: 10 kg Y Axis: 100 kg Minimum Detectable Load (From Software Version 2.20): 5% of currently selected test load range. (For destructive testing - 5% of the threshold parameter slider setting) Work Area (Swing Round Tool): 215 mm (8.5") minimum Keypad: 4 x 4 matrix Joystick: Self centering Illumination: 20W Halogen lamp Vacuum Base: 500 mm Hg (20" Hg) minimum (supply to machine) Sound Level: Continuous A-weighted sound pressure at the workstation < 70 dB(A) Die Shear Testing Specifications - Operating Parameters: Load Cartridges: A range of cartridges are available. Test load range for a cartridge can be selected to meet test requirements. Measurement Accuracy: ±0.5% of load cell rating Test Mode: Destructive or Non-Destructive Shear Mode: Automatic Shear Direction: Y axis, front to back Shear Tool (Standard): Tungsten carbide Landing Speed (Programmable): 0 to 1.0 mm/s (0.039 in/s) Landing Force: 3g to 10g (depending on landing speed) Shear Height: Range: 0 to 0.5 mm (0.019") Resolution: 0.00025 mm Accuracy (At Start of Test): ±0.00025 mm Accuracy (Though Test): ±0.0005 mm Shear Speed (Programmable Range): Cartridge dependent Y Axis Travel During Shear Test: Cartridge dependent Ball Shear Testing Specifications - Operating Parameters: Measurement Accuracy: ±0.5% of load cell rating Test Mode: Destructive or Non-Destructive Shear Mode: Automatic Shear Direction: Y axis, front to back Shear Tool (Standard): Tungsten carbide Landing Speed (Programmable): 0 to 1.0 mm/s (0.039 in/s) Landing Force: 3g to 10g (depending on landing speed) Shear Height: Range: 0 to 0.5 mm (0.019") Resolution: 0.001 mm Accuracy (At Start of Test): ±0.00025 mm Accuracy (Through Test): ±0.0005 mm Shear Speed (Programmable Range): Cartridge dependent Y Axis Travel During Shear Test: Cartridge dependent Pull Testing Specifications - Operating Parameters: Measurement Accuracy: ±0.5% of load cell rating Test Mode: Destructive or Non-Destructive Pull Mode: Manual, Step back, or Autohook Pull Direction: Z axis, vertical Z Axis Stroke: 73 mm Pull Tool (Standard): Hook or tweezer Pull Speed (Programmable): Range (up to 1kg rating): up to 5.0 mm/s NDT Overshoot: 0.5% FSD Machine Dimensions (not including computer, monitor, keyboard, or pointing device): Width: 365 mm Height: 710 mm (excluding optical equipment) Depth: 710 mm Weight: 38 kg. - does not include packaging for shipment Die Shear Cartridges: The standard tungsten carbide shear tols are available with varying tip widths. The width use should be at least equal to that of the bond under test. The cartridge provides a height reference facility: Model: Load Ranges: Standard Ranges (Selectable by Operator): DS50kg 0.25 kg to 50 kg with height referencing 5, 7, 10, 15, 20, 25, 35, and 50 kg DS100kg 0.5 kg to 100 kg with height referencing 10, 15, 20, 25, 35, 50, 70, and 100 kg Ball Shear Cartridges: The PC2400 will automatically detect and null the following range of application specific load cartridges. Model: Load Ranges: Standard Ranges (Selectable by Operator): BS500 2.5 to 500 gm with height referencing 50, 70, 100, 150, 200, 250, 350, and 500 gm BS5kg 25 gm to 5 kg with height referencing 500 and 700 gm, 1, 1.5, 2, 2.5, 3.5 and 5 kg Wire Pull Cartridges: Model: Load Ranges: Standard Ranges (Selectable by Operator): WP100 0.5 to 100 gm with autohook 10, 15, 20, 25, 35, 50, 70, and 100 gm WP1kg 5 gm to 1 kg 100, 150, 200, 250, 350, 500, 700 gm, and 1 kg WP10kg 50 gm to 10 kg 1, 1.5, 2, 2.5, 3.5, 5, 7, and 10 kg Tweezer Pull Cartridges: Model: Load Ranges: Standard Ranges (Selectable by Operator): TP100 0.5 to 100 gm 10, 15, 20, 25, 35, 50, 70, and 100 gm TP1kg 50 gm to 1 kg 1, 1.5, 2, 2.5, 3.5, 5, 700 gm, and 1 kg For More Pictures Please Click the Following: Picture 2 - Front View Picture 3 - Side View Picture 4 - Back View Picture 5 - Software Revision Menu Picture 6 - Cartridge Holder/Connection Picture 7 - Computer Connections & Interfaces Picture 8 - Air / Vacuum Connections Picture 9 - Serial Number Tag Picture 10 - 5kg Ball Shear Cartridge #1 Picture 11 - 5kg Ball Shear Cartridge #2 Picture 12 - 5kg Ball Shear Cartridge #3 Picture 13 - 100g Wire-Pull Cartridge #1 Picture 14 - 100g Wire-Pull Cartridge #2 Picture 15 - 100g Wire-Pull Cartridge #3 $100.00 minimum for packaging, handling, and order processing. Shipping to be determined by destination. Prior to shipment I need to know the following information: (1) Are you the end-user of this item? (2) If you are not the ultimate end-user of the item, please state the ultimate end user's name. (3) What is the ultimate country destination? If you have any questions please call Michael at 1-866-MHZ-ELEC (1-866-649-3532) Toll Free. Also, please click here to view or other auctions! 03/14/09 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

“The unit powers up but we do not have the means to fully test it. Cartridge choice of BS5kg or WP100. All other cartridges referenced in this auction can be purchased from Dage. We do not have the software in disk form, but it is installed on the computer. The monitor, keyboard, and trackball are NOT included!”

Brand	Dage
Model	PC2400
