Dayton 5uxj0 High-volume Booster Pump New Open Box

US $930

Antioch, Illinois, United States
Jan 30th

Open on mobile:
QR code

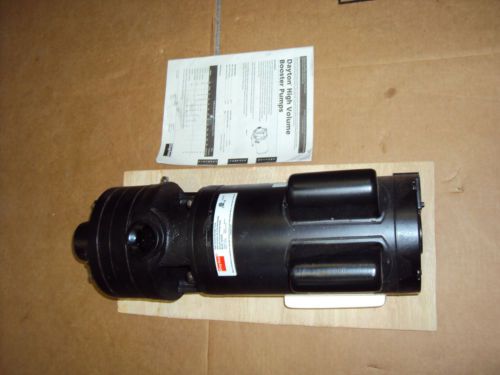

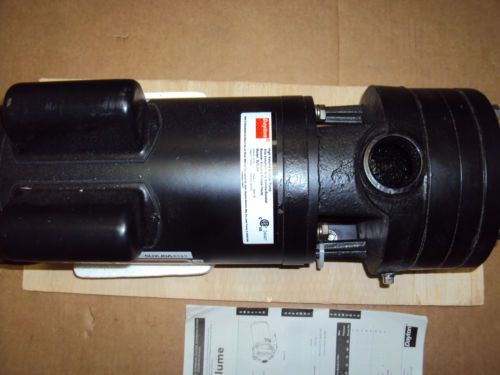

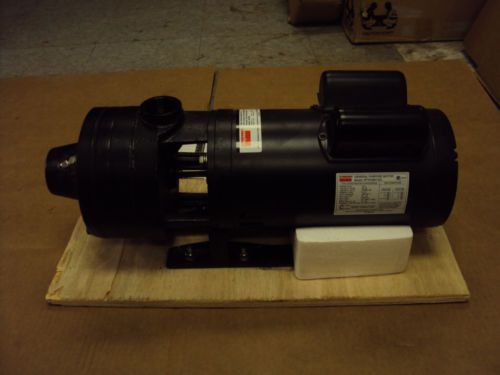

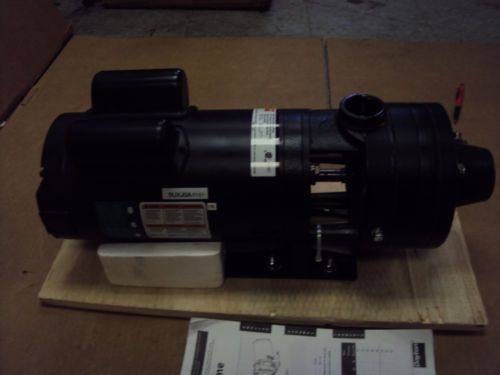

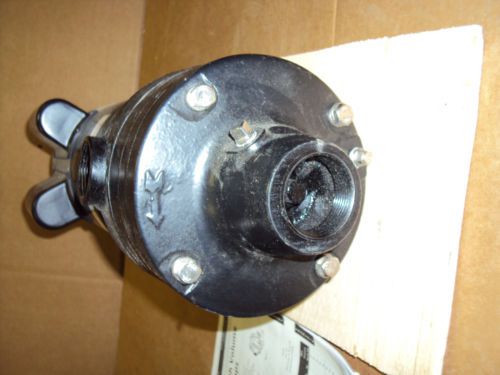

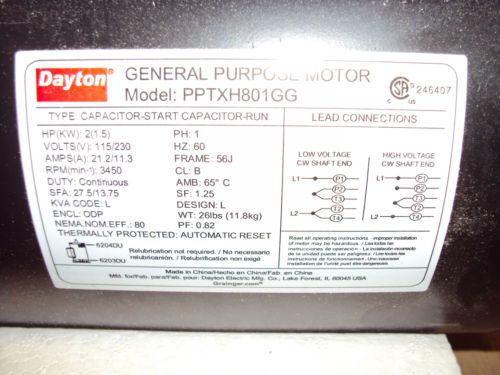

DAYTON 5UXJ0 High-Volume Booster Pump NEW OPEN BOX click to Enlarge click to Enlarge click to Enlarge click to Enlarge click to Enlarge click to Enlarge click to Enlarge click to Enlarge Description : DAYTON 5UXJ0 BOOSTER PUMP Technical Specs ItemPressure Booster Pump TypeHigh-Volume Motor EnclosureODP Housing MaterialCast Iron HP2 Phase1 Voltage115/230 Amps25/12.5 Hz60 Inlet (In.)1-1/2 NPT Outlet (In.)1-1/4 NPT GPM @ 25 PSI35 GPM @ 30 PSI32 GPM @ 35 PSI29 GPM @ 40 PSI40 GPM @ 50 PSI34 GPM @ 60 PSI27 Max. Pressure (PSI)65 Suction Lift (Ft.)25 Max. Case Pressure (PSI)160 Max. PSI Boost @ 2-10 GPM69 Max. PSI Boost @ 20 GPM62 Max. PSI Boost @ 30 GPM57 Max. GPM @ PSI45 @ 25 Best Efficiency GPM @ PSI27 @ 61 Min. GPM @ PSI27 @ 60 Pressure Range (PSI)65 Best Efficiency GPM @ Head (Ft.)27 @ 140 Best Efficiency Range GPM @ Head (Ft.)33-20 GPM @ 125-155 Ft Motor RPM3450 Motor Type Permanent Split Capacitor Duty Continuous Duty Wetted Materials Brass, Cast Iron, Stainless Steel, Buna N, Carbon, Ceramic Impeller Material Brass Impeller Type Closed Diffuser Material Cast Iron Seal Material Stainless Steel, Buna, Carbon/Silicon Carbide Seal Type Mechanical Shaft Material Stainless Steel Seal Application Clear Water Below 200 PSI Bearing Type Permanently Lubricated Ball Max. Liquid Temp. (F)200 Min. Inlet Flow Required2 GPM Max. Inlet Pressure (PSI)90 Stages2 Max. Fluid Viscosity31 SSU Plug or Connector TypeDirect Wire Length (In.)19-1/2 Width (In.)7 Height (In.)8-3/4 Motor Ambient Temp. Rating149 Degrees F Service Factor1.25 Max. Working Pressure (PSI)160 NEMA/IEC Frame56J For Use With Nonflammable Liquids Compatible with Pump Component Materials Application Pressure Boosting, Pressure Cleaning, Spray or Mist Systems, Reverse Osmosis, Water Circulation Agency Compliance CSA, CUS, UL Listed Manufacturers Warranty Length1 yr. Includes Manual SEE PHOTOS DISTRESSED PACKING ALL ITEMS THERE WITH FACTORY MANUAL Please note in many cases a stock photo is shown As With All Our Items PICKUP is AVAILABLE and PREFERRED RE: Freight Ship Items. Please email for Freight Quotes BEFORE Bidding Shipping : Most items ship within 3 business days of final payment Freight shipping may take longer Payment : Payment must be received within 5 days of winning bid inkfrog terapeak
