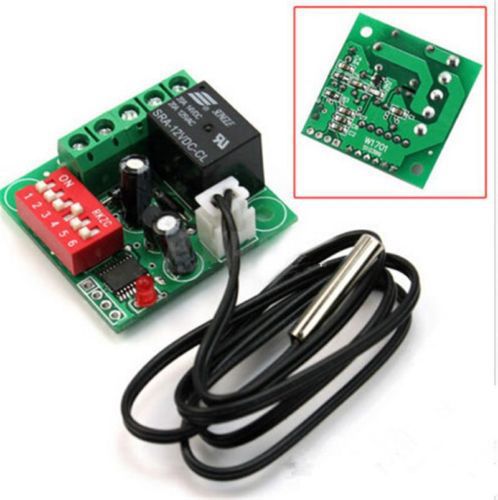

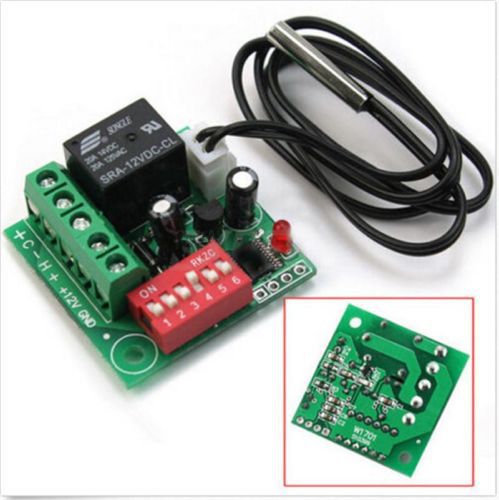

DC 12V Heat Cool Temp Thermostat Temperature Control Switch Thermometer 20-90°C, US $3.16 – Picture 0

DC 12V Heat Cool Temp Thermostat Temperature Control Switch Thermometer 20-90°C, US $3.16 – Picture 1

DC 12V Heat Cool Temp Thermostat Temperature Control Switch Thermometer 20-90°C, US $3.16 – Picture 2

DC 12V Heat Cool Temp Thermostat Temperature Control Switch Thermometer 20-90°C, US $3.16 – Picture 3

Dc 12v Heat Cool Temp Thermostat Temperature Control Switch Thermometer 20-90°c

US $3.16

HK, China
Jan 29th

Open on mobile:
QR code

Description Specification Model: W1701 Size: Approx. 1.44*1.44*0.71inch / 36.5 * 36.5 * 18mm Installation screw: M3 * 2 diagonal size 39.5mm Temperature range: 20-90 ℃ Control Mode: Heating, Cooling, Heat dissipation Control Accuracy: 0.1 ℃ Hysteresis Setting: 1-10 ℃ Refresh Rate: 0.5S Supply Voltage: DC 12V Output Voltage: DC 12V Output Power: Max 200W Static Current: ≤ 3MA, attract current ≤ 60MA Temperature Probe: 10K thermistor B25 = 10K 3950 0.5M Waterproof Sensor Environmental Requirements: -10 ~ 60 ℃ Humidity 20% -85% Can be used in the (liquid, mold, space) and other control heating, Also can be used (box, the device, water, pet rooms, air conditioning) and other control refrigeration. Package included 1x digital temperature control switch Instructions: Please connect the circuit according to the wiring diagram, power supply is DC12V (+12 V is positive , and GND is negative). The probe is connected to the object you want to control. For heating: Please connect 12V heater to the - H + For cooling: Please connect cooler to the + C - For heat-sinking: Please connect cooler or heatsink connected to the + C - Indicator Status : the red light is on indicating the cooling (+ C-) output, and the light is off indicating heating (-H +) output Preview Description Specification Model: W1701 Size: Approx. 1.44*1.44*0.71inch / 36.5 * 36.5 * 18mm Installation screw: M3 * 2 diagonal size 39.5mm Temperature range: 20-90 ℃ Control Mode: Heating, Cooling, Heat dissipation Control Accuracy: 0.1 ℃ Hysteresis Setting: 1-10 ℃ Refresh Rate: 0.5S Supply Voltage: DC 12V Output Voltage: DC 12V Output Power: Max 200W Static Current: ≤ 3MA, attract current ≤ 60MA Temperature Probe: 10K thermistor B25 = 10K 3950 0.5M Waterproof Sensor Environmental Requirements: -10 ~ 60 ℃ Humidity 20% -85% Can be used in the (liquid, mold, space) and other control heating, Also can be used (box, the device, water, pet rooms, air conditioning) and other control refrigeration. Package included 1x digital temperature control switch Instructions: Please connect the circuit according to the wiring diagram, power supply is DC12V (+12 V is positive , and GND is negative). The probe is connected to the object you want to control. For heating: Please connect 12V heater to the - H + For cooling: Please connect cooler to the + C - For heat-sinking: Please connect cooler or heatsink connected to the + C - Indicator Status : the red light is on indicating the cooling (+ C-) output, and the light is off indicating heating (-H +) output Preview Engineered for professional eBay sellers! On Dec-15-14 at 19:31:00 PST, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Buytra
Hysteresis Setting	1-10 °C
Model	W1701
Refresh Rate	0.5S
Size	36.5 * 36.5 * 18mm
Supply Voltage	DC 12V
Temperature range	20-90 °C
Output Voltage	DC 12V
Control Mode	Heating, Cooling, Heat dissipation
Output Power	Max 200W
Control Accuracy	0.1 °C
Package includes	1x digital temperature control switch
