Dc 3v-30v Dip Timer Control Switch Module Relay Led Timing Controller 6v 12v 24v

US $5.19

HONG KONG, Hong Kong
Jan 29th

Open on mobile:
QR code

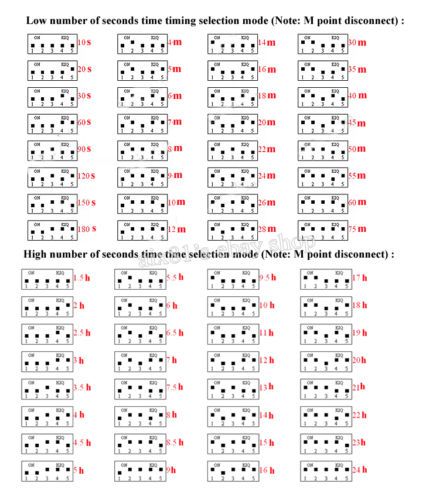

Welcome to my ebay store! You will find your favorite products. Pass by do not miss.thank you! Description Item description: 100% Brand new and high quality. Function Description: 1. Power-on reset automatically; 2. The delay time adjustment range: 10 seconds - 24 hours; 3. Current output voltage ratio parameter table: Drive Voltage↓ Drive Current ↓ 3V 300MA 5V 200MA 9V 100MA 12V 80MA 24V 40MA 4. Wide input voltage: DC 3.3V-30V; 5. The module operating current <1mA. 6. You can directly drive a relay 3V, 5V relay, 12V relay, 24V relay, LED lights and so on; 7. Choose low-input, high input and low output, high output, use the way through the short circuit; 8. timing accuracy than ordinary 555 timing, timing and other analog circuit simulation; 9. The full-precision placement machine processing, high-quality process to ensure quality; 10. Simple, easy to use; Note: this product does not have the cycle timing. 11. This module not only small size, large timing range, ease of use and the timing of the operation, do not consume a lot of time in the process of adjusting the time; 12. In order to make our customers more convenient to use, this product has another distribution right angle or angled pins 13. When there is no trigger energized work, DIP switches can be adjusted to select a time. 14. Size: 18mm×18mm×7mm. Pin spacing: 2.54mm. Application: Delay switch, timer, timing lights.(ep.control motor timing,relay timing, control LED light.) Precautions when using: 1. The above parameter data are at 5V test voltage parameters are slightly different variations; 2. This module is a non-precision timing, mind take carefully; 3. Signal input pin is short trigger signal 4. When ready to use, please note the direction of the power connector 5. Please add a current limiting resistor (otherwise it will burn lamp) If the peripheral using LED lights Package included: 1x Timer Timing module(Pin welding on the board) 1x User manul(chinese) Feedback > We maintain hightest buyer ratings > Positive Feedback will be much appreciated from you. > Any dissatisfaction, please contact us immediately! > Please do not leave neutral or negative feedback before we help you out. Payment > We accept PayPal only. > All major credit cards are accepted through secure payment processor PayPal. > Payment must be received within 7 days of auction closing. Shipping > We Ship to Worldwide, except Hong Kong, Italy, Nigeria..... > Items will be shipped within one business day on payment received. > Items are shipped from China using Airmail, delivery time depends on destination and other factors,reach most of the countries within 10 to 35 business days. Country Shipping Way Shipping Time Tracking Number United States USPS(ePacket) 7-12 Yes Russian China Post 15-35 Yes Other Country HK /Swiss Post Air Mail 15-45 No Brazil / Africa HK /Swiss Post Air Mail 25-55 No Returns > Defect: We will fully refund or send you a new replacement,please contact and return within 14 days. > Dissatisfaction: Please contact within 3 days, we will fully refund, after got your returned goods. > Missing parts/Q'ty: Please contact us immediately,for a new package arranged,or a partial refund issued. Contact us > If have any question, Please contact us by ebay message before leaving neutral, negative feedback or open any dispute, we will reply within 24hours, ensure that help you solve the problem, make you satisfied. > Our Working-time From 8:30 AM to 21:30 PM(GMT+08). Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Voltage	3V-30V
Timing range	10s-24h
Current	<1 mA
Type	DIP Switch Timer Control Switch Module
