Dc 50a 4 In 1 Lcd Digital Combo Panel Meter Voltage Current Monitor Kwh Watt

US $12.54

HK, Hong Kong
Jun 9th

Open on mobile:
QR code

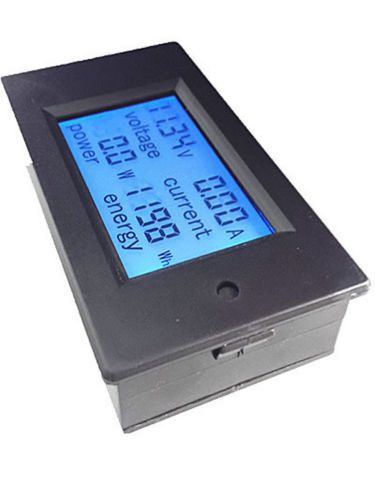

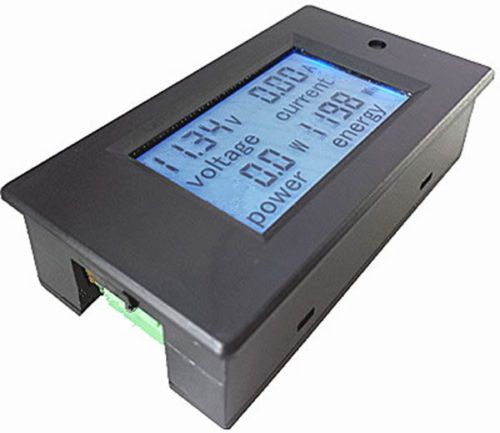

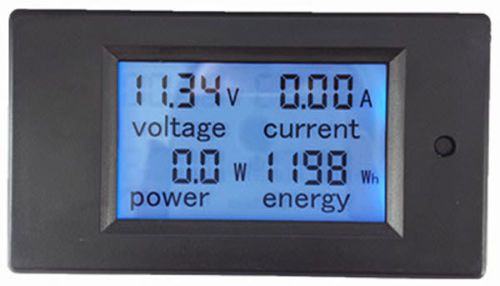

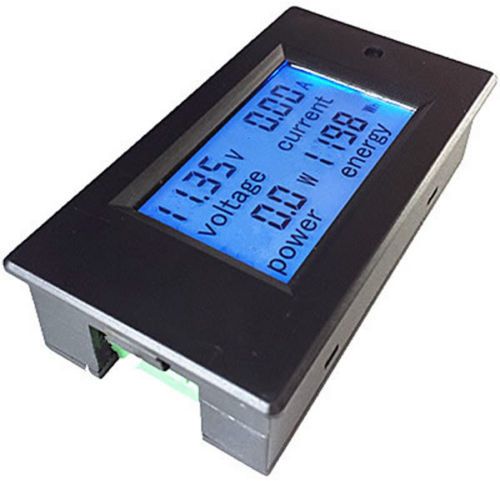

Home Payment Delivery details Terms of sales About us Contact us Store search Store category You may also like DC 50A 4 in 1 LCD Digital Combo Panel Meter Voltage current Monitor KWh watt Product Description Function 1. Electrical parameter measurement function (voltage, current, active power, energy) 2. Voltage alarm function (over voltage alarm threshold, backlight and voltage flashing to alarm) 3. The reset function of energy key 4. Store data when power off 5. Large-screen LCD (display voltage, current, active power, energy at the same time) 6. Backlight function Appearance and Key function Display Interface Display interface is large-screen LCD, it can display voltage, current, power, energy parameters at the same time Display format 1. Power: test range: 0~10kW - Within 1KW, the display format is 0.0~999.9W - 1KW and above, the display format is 1000~9999W 2.Energy: test range: 0~9999kWh - Within 10KWh, the display format is 0~9999Wh - 10kWh and above, the display format is 10~9999kWh 3.Voltage: test range: 6.5~100V Display format: 6.50~99.99V 4.Current: test range: 0~50A Display format: 0.00~49.99 Key 1.Backlight control Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off 2.Reset energy Step1: Long press the key until the power display area display “CLr”, then release the key Step2: At this moment, the energy is flashing to prompt this is the energy reset state, if short press the key again, then the energy value is cleared and exit the reset flashing state Step 3: If there is no operation within 5 seconds, it means the energy value is not cleared and will exit the reset state 3.Set voltage alarm threshold Step1: Long press the key until the power display area display “SET”, then release the key Step2: After enter this state, the voltage area display the current high voltage alarm value, the current area display the current low voltage alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operation over 3 seconds, it will switch the digit position automatically, from the high voltage alarm value to the low voltage alarm value, there are total six digits, the range of the voltage alarm threshold is 6.5~99.9V Step3: After finish the setting, long press the key until the screen display “PASS”,that means you set successfully and will exit the setting state automatically 4.Choose measuring range Step1: Long press the key until the power area display “Curr”, then release the key Step2: At this moment, the current area display “100A”, short press the key to switch between“100A”and “50A”, to prompt the range of the external shunt is 100A/75mV or 50A/75mV, please note that this meter can only use these two specification shunt Step3: Long press the key to exit the setting state or after no operation within 3 seconds it will store automatically and exit the setting state Precautions 1.This module is suitable for indoor, please do not use outdoor 2.Applied load should not exceed the rated voltage, current 3.Wiring order can’t be wrong Specification parameters 1.Working voltage: 6.5~100VDC 2.Test voltage: 6.5~100VDC 3.Rated power: 50A/10000W 4.Measurement accuracy: 1.0 grade Package Contents 1 x 4in1 50A DC Combo Meter With Shunt Payment Delivery details Terms of sales About us Contact us Payment We only accept payment through Paypal. Please pay for your item within 4 days of the auction end time. A non-payment dispute will be regrettably opened if full payment is not received. Delivery details We ship worldwide except Italy and Brazil due to their strict customs tariff policys. All items will be shipped to buyer's ebay address. Before you pay, please make sure your address in ebay matches the address you would like us to ship to. (If you want to change the address, pls. add a note when you make the payment) Any non-received items caused by invalid address registered on PayPal are not in our full refund or replacement policy. A notification email of dispatch will be sent to buyer after item is posted. Please email us if you don't receive our email after 5 days of full payment sent. All items will be shipped within 48 hours upon receipt of payment. You should be able to receive items within 3 weeks. Email us if not receive items after 30 working after full payment sent. Terms of sales 1. Our listing price includes the value of goods,packaging cost,and export taxes,not including international import duties. 2. Import duties,taxes,and charges are not included in the item price or shipping fee. 3. The import duties are buyers' responsibility.Please check with your country's customs office determine what these additional costs will be prior to your purchase. 4. All disputes arising from the import duties will be submitted to ebay for solution. About us Any questions, pls. contact us via ebay message or email us.We will reply your message within 48 hours. If you do not receive our reply within 48 hours, pls. post a message again because sometimes our message system may block some emails. Contact us If you are satisfied with our service, pls. kindly leave us a positive feedback and give us the Detailed Seller Rating with all "5 stars" in very area. Your recognition will encourage us greatly and serve you better. Should a problem arise with your order, please contact us before leaving feedback. We strive to keep all our customers satisfy. Thanks! Your feedback is critical to our success! On Sep-12-15 at 06:23:15 PDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Unbranded
Model	DC Combo Meter
MPN	Does not apply
Country/Region of Manufacture	China
UPC	Does not apply
