Dc 8a Step Down High Power Led Driver Solar Battery Charger Constant Current

US $16.50

Guang Zhou, China
Jan 29th

Open on mobile:
QR code

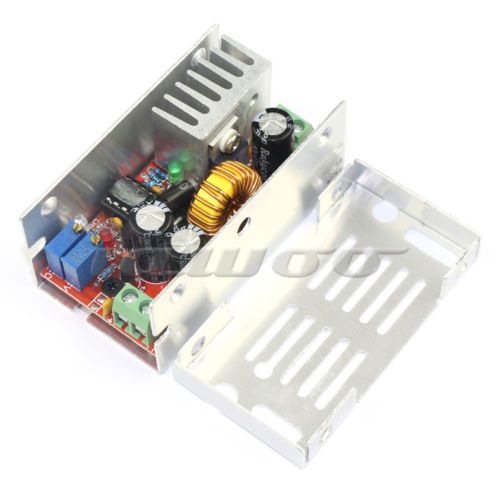

DC 7-40V to 1.25-36V 8A Constant Current Converter Step Down Power Supply for Solar Lithium Battery Charger LED Driver #090062 Description Application: DC to DC 8A high current buck power supply with constant current, constant voltage function. can be use as dc power supply, solar battery charger, Lithium Battery charger, with turn light indicator. can be use as high power LED driver module. Feature: Module name: 8A constant voltage constant current buck converter Module Properties: non-isolated step-down module (BUCK) Input Voltage: DC 7-40V Output voltage: DC 1.25-36V continuously adjustable Output current range: 0.05-8A (the default output current is 1A) Turn light current: constant current value * (0.1), such as the constant current value is 3A, Turn light current is set to constant current of 0.1 times (0.1 * 3A = 0.3A), when adjusted constant current value to 2A, then Turn light current is constant current of 0.1 times (0.1 * 2A = 0.2A). this version is 0.1 times fixed Operating temperature: -40℃ to +85℃ Operating Frequency: 180KHz Conversion efficiency: Up to 90% (efficiency depnd on the input and output voltage, current, pressure) Short circuit protection: Yes (Limit the current to the set current value) Over-temperature protection: Yes (over-temperature shutdown output automatically) Input reverse polarity protection: Yes (please do not reverse connection for long time) Output protection against anti-irrigation: none Charging (turn lights) indication: Yes (charging red, full charger blue, constant current green) Wiring: IN+ IN- as the input positive and negative, OUT+ OUT- as the positive and negative output Aluminum Case Size: 70MM x 39MM x 31MM Battery Charging method: Make sure the recharge battery float voltage and charge current, input voltage of the module. adjust constant voltage regulator, the output voltage about 5V. With a multimeter ( to 10A) Measuring output Short-circuit current, Also adjust the constant regulator allows Output current reaches a predetermined charge current value; Adjust Constant regulator allows Output voltage reaches the float voltage; connected to the battery, try charging. (1,2,3,4 step input connect power, output do not connect battery.) LED constant current driver Usage: Make sure LED current and the maximum operating voltage; adjust constant voltage regulator, the output voltage about 5V. With a multimeter ( to 10A) Measuring output Short-circuit current, Also adjust the constant regulator allows Output current reaches a predetermined LED working current value; Adjust Constant regulator allows Output voltage Reach LED maximum working voltage; Connected to the LED, test. (1,2,3,4 take steps input connect power, output do not connected LED.) Package Include: 1x DC Converter Payment Method We accept only Paypal for both domestic and international. We will ship to the shown address on you PAYPAL Payment notice,Please confirm your shipping address in the PayPal Account. If buyer want to delay the payment because of financial problem, please contact me by the ebay message within 3 days. Shipping Detail Ship by Post Air-mail within 3 working days after full payment is received. The shipment usually takes 15-45 business days to Worldwide. We also provide international Expressed delivery such as EMS, DHL and UPS,extra shipping fees is needed. The shipping time may vary, depends on receiver's location. Feedback Policy We will leave positive feedback to buyer as soon as buyer pays for the item. Leaving Negative feedback or Netural Feedback is never a good way to resolve problem .We hightly appreciate that you can contact with us before you leaving Negative feedback or Neutral feedback .We will offer help to resolve your problems as fast as possible. Customer Service Work Time If you have any questions,Please contact with us via eBay message or our customer service e-mail . please be advised that e-mails will be replied by our customer services officers Mon. - Fri. 11:00 - 20:00 and Saturdays 11:00 – 15:00(Excluding Weekends and Public Holidays) You may expect to receive a response to your inquiry within 24 hours. (Excluding Weekends and Public Holidays) Engineered for professional eBay sellers! On Dec-05-14 at 19:17:39 PST, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Input Voltage	DC 7-40V
Model	LED Driver
Output voltage	DC 1.25-36V
Feature	Constant Current
Operating Frequency	180KHz
