US $5.39
Hong Kong, Hong Kong
Apr 25th
Contact Seller
Complain
Open on mobile:

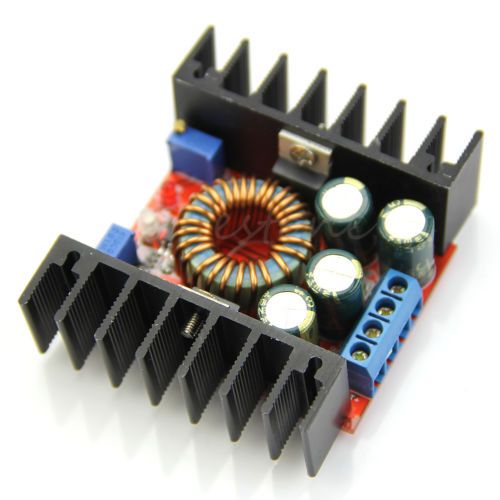

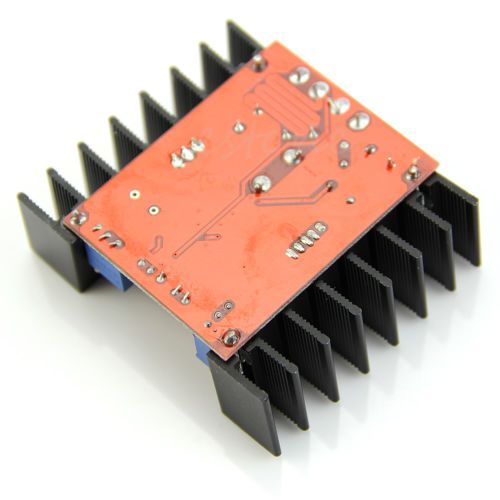

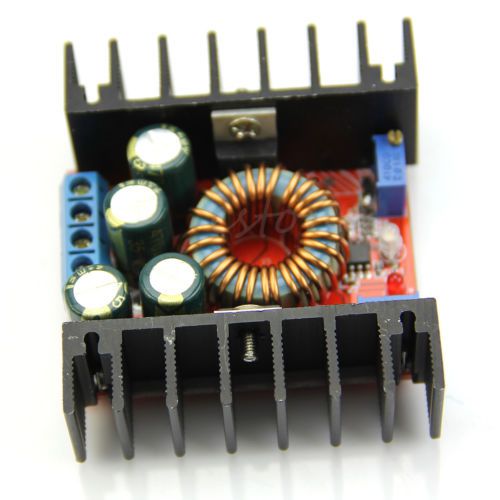

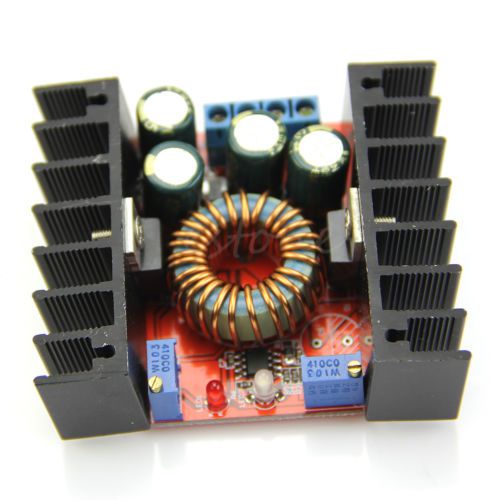

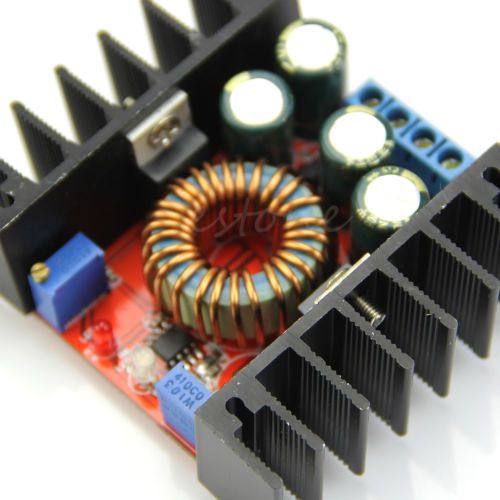

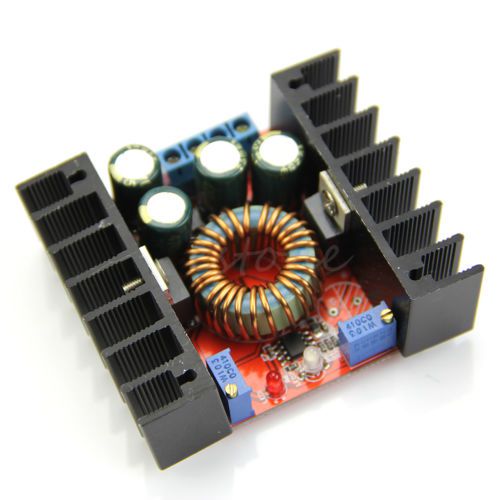

A¦a€“A°A?A»A?A§A 1/2 a€~A©A?Aµ 6 DC-DC 7-32V 10A Buck Converter Adjustable 200W For Battery/LED/Car Power Module Description: 100% brand new and high quality Module Properties: Non synchronous rectifier,non-isolated buck,constant current& voltage, CC CV charging mudule Input Voltage: 7-32V Output Voltage: 1.25V - 28V(adjustable) Output Current: 10A Max, 8A for long time working Output Power: 200W Working Temperature: -40°C to +85°C Working Frequency: 300 KHZ Tranfer Efficiency: Max 95% (Efficiency is related with input,output voltage,current and voltage difference .) Constant Current Range: 0.3 to 10A (adjustable) Turn Lamp Current: Constant current value*(0.1),turn lamp current connect with constant current value ,for example when the constant current is 3A, turn lamp current is set to constant current 0.1 time (0.1*3A=0.3A). When the constant current value is 2A, turm lamp current is set for constant current 0.1 time (0.1*2A=0.2A) This version is fixed to 0.1 time (+-10%), Direction for charing or full of Tranfer effciency: Max 95% ( Efficiency is related with input,output voltage ,current and voltage difference.) Working Frenquency:300KHZ Output Ripple: Ripple is about 50mV( No noise) 20M bandwidth (For reference only ) input 24V ,output 12V 5A test result. Working Temperature : Industrial grade(-40°C-+85°C)(Please pay attention to the power tube temperature and strengthen the heatsink system when operating ) No Lload Current: Typical 20mA ( 24V tranfer to 12V) Load Regulation Rate: ±1%(Constanct voltage) Voltage Regulation rate: ±1% The precision of constant current and temperature :Constant current value is less than 5% when the testing temperature from 25 degree up to 60 degree.(Constant current value is 5A) Dynamic response speed : 5% 200uS Adjustting direction of potentiometer : Clockwise (increase), anticlockwise(decrease) Indicator (lamp):Two colors,red is charging while green is full of Output short circuit protection : Yes ,constant current (Constant current value is set up presently) Input reverse connection protection: No Output anti-flow-backwards protection : No, you need to add diode for battery Connection: Terminal Direction for charging battery: Make sure the floating charge voltage ,charging current and input voltage of rechangeable battery you need Setting the constant voltage potentiometer,and put the output voltage on about 5V Monitor output short circuit current by 10A current of multimeter ,and adjusting output current to the expected charging current by constant current potentiometer Adjustting the output voltage to the floating charge voltage by constant voltage potentiometer Connecting with the battery and try to charge (Step 1.2.3.4 are for module input connected with power,while no load output disconnected with battery.) Direction for LED constant current driver: Make sure LED working current and max working voltage you need to drive Adjusting the constant voltage potentiometer and put output voltage on about 5V Mornitor output short circuit current by 10A current of multimeter,and adjusting output current to expected LED working current by constant current Adjust the constant voltage potentiometer to LED max working voltage by output voltage potentiometer Connecting with LED ,and try to drive (Step 1.2.3.4 for module input connected with power,while no load output disconnected with LED max working voltage.) Module Size: 56 * 65 * 22mm/2.2*2.55*0.86" Color is shown as pictures NOTE: Due to lighting effects, monitor's brightness / contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item Quantity:1pc Package includes: 1 x DC-DC Buck Converter 200W Payment: We accept payment through Paypal ONLY. If you do not have Paypal account, please registered with (http://www.paypal.com) Payment must be received within 5 days after auctions ended. Please do not bid if you are not intending to buy. Unpaid dispute will be filed to ebay for the non payable bidders. Shipping and handling: Return Policy: We are not responsible for custom duty or import tax. We will leave POSITIVE FEEDBACK after receiving the payment. Please contact us if you are not satisfied with the item after receive it. We could offer refund, and refund request is available only requests within a week after parcel received & returning the item as the same condition as received. We offer 100% refund if the item is broken before arrival, all you need to do is sending us the clear pictures to show it is broken. Defective situation must be noticed within 7 days after delivery. All emails will be answered within 1 business day. If you do not receive our reply, please kindly re-sent your email,and we will reply to you as soon as possible. All items sold by us are being described to the best of our abilities, as accurate as possible, and with utmost conscientiousness on our part.However, to avoid any potential oversights, I respectfully request your assistance in helping us to make this a mutually satisfactory transaction by Thoroughly reviewing item description and photos, and asking all questions Prior To Bidding. Please Note that size and color representation are subject to manufacturing variance and may not be exact. Also note that monitor settings may vary from computer to computer and may distort actual colors. Please read these terms thoroughly before placing your bid. Feedback: We will automatically leave a positive feedback to everyone who has complete the transaction and leave us positive feedback. Please do not forget to give us Five Stars on all of the Detailed Seller Ratings. Thanks! In the unlikely event you are not satisfied with the transaction, please contact us before you submit your evaluation. We believe that everything could be solved by communication. 1.in order to provide you the best service*****,please treat the transaction fairly.*feedback is simply what we pursue. 2.Please Do contact us first to get a better solution before you would leave a *neutral or *negative feedback 3.We strive for 5-star service by stating upfront our policies, our shipping rate& our shipping frequency. if you were pleased with this transaction, please respond with all 5 stars! if you are not pleased, simply let me know via e-mail rather than leave low score, and I'll work to make it that way 4.Please email me through 'MY MESSAGES' or "Ask Seller Questions" if you have any question about our listing or your purchase Contact us: We are in Shenzhen of Pearl River Delta which is developed place with economy and Trade We are a profession trade company. There are about 16000 kinds of products in my company,Our products include consumer electronics, Nail Art Tools, Clothes and shoes, cell phone accessories, computers accessories, car accessories, Motorcycle accession, toys & hobbies, jewelry, baby accessories other useful electronics items and etc If you have any problems, we are very glad to help you. We rare handling large volume emails every day. Please allow us to reply your email within 24hrs For the functional products in our shop (such as: Chargers, Data cables), which function is the same as description, but the actual color and shape may looks a little different from pictures because of the technical improvement and actual stock state. Please be advised before you bid. Copyright(c)2005 wangdecheng9898 All Rights Reserved On Apr-24-15 at 20:22:57 PDT, seller added the following information:
