Dc-dc Ccvc Cvcc 4v-32v To 1.2v-32v Step Down Constant Voltage Constant Current W

US $12.52

  • Shenzhen, China
  • Feb 16th
Open on mobile:
QR code

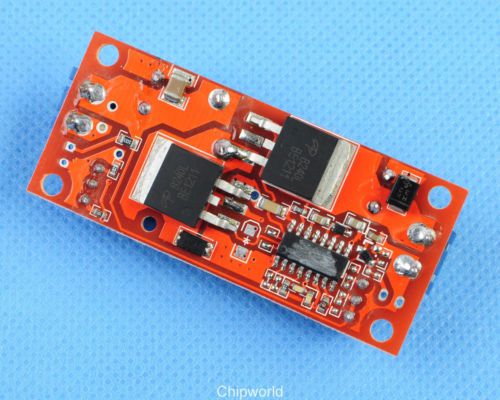

Product Name: NEW DC-DC 4V-32V to 1.2V-32V Step Down Constant Voltage Constant Current More Items In Our Store,Click Here!   SKU: 2750 Parsts No. : Package: Brand:   Quantity: 1 Module parameter: Module name:10A synchronous rectification step down constant voltage constant current. Module property:Non-isolated step down module(BUCK) synchronous rectification. Input voltage:4V-32V(max 36V)Please keep the voltage margin. Output voltage:1.2V-32V(adjustable) Dropout voltage between input and output:1V(Least) Output current:0.3A-10A(please keep less then 6A in long time,temperature can not beyond 60°C.Please drop voltage or use heat sink if environment temperature is higher) Working temperature:-40°C~+85°C Working frequency:150KHz Transfer efficiency:96%(max) Short circuit protection:Yes(limiting current as constant current value) Over temperature protection:Yes(automatic down output current) Input reverse connect protection:NO Output reverse connect protection:NO PCB size:60x26x20mm Set method of constant current and constant voltage: 1.Set output voltage:adjust constant voltage potentiometer(CV),set output voltage. 2.Set output current:keep anticlockwise rotate CC potentiometer in 20 circle.Then selection multimeter in 20A current tap position Note:Voltage should higher than 1.2V when set constant current,otherwise function of constant current will lose efficacy.     Any problem, please contact us freely       1) We accept PayPal payment ONLY.     inkFrog Analytics On Feb-08-15 at 22:54:33 PST, seller added the following information:
