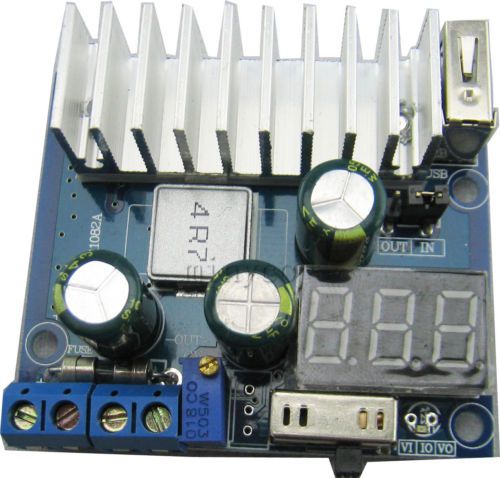

DC DC converter 100W Boost power supply Regulator USB output Charging voltmeter, US $15.80 – Picture 0

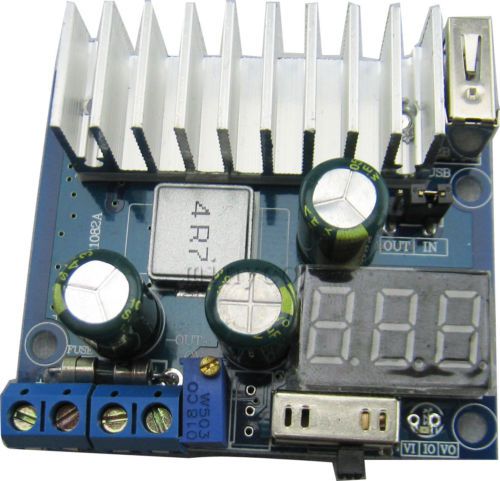

DC DC converter 100W Boost power supply Regulator USB output Charging voltmeter, US $15.80 – Picture 1

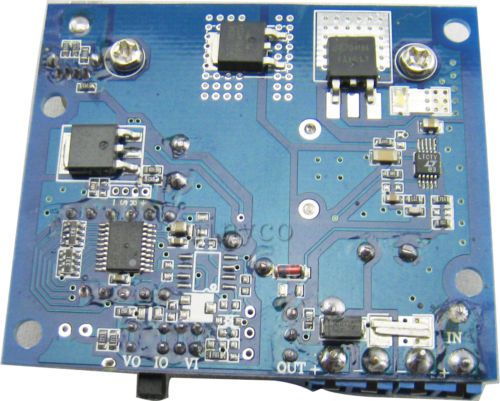

DC DC converter 100W Boost power supply Regulator USB output Charging voltmeter, US $15.80 – Picture 2

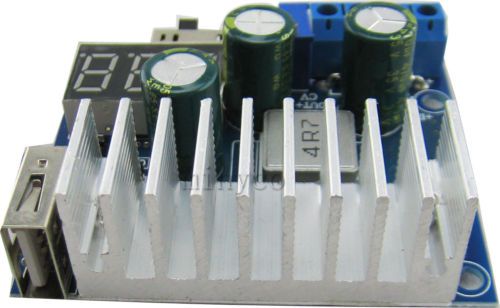

DC DC converter 100W Boost power supply Regulator USB output Charging voltmeter, US $15.80 – Picture 3

DC DC converter 100W Boost power supply Regulator USB output Charging voltmeter, US $15.80 – Picture 4

DC DC converter 100W Boost power supply Regulator USB output Charging voltmeter, US $15.80 – Picture 5

Dc Dc Converter 100w Boost Power Supply Regulator Usb Output Charging Voltmeter

US $15.80

Guangzhou ,Guangdong, China
Feb 26th

Open on mobile:
QR code

DC to DC converter 100W Boost step up Mobile power supply module Voltage Regulator with USB output for Charging voltmeter #13002 Description DC to DC converter 100W Boost step up Mobile power supply module Voltage Regulator with USB output for Charging voltmeter #1300206 Module parameters: Module Name: 100W boost module Module Properties: non-isolated step-up module (BOOST) Input voltage: DC 3-35V (the limit 36V) Input Current: 10A (MAX) Please enhance heat dissipation than 6AQuiescent Current: 15mA excluding voltmeters current (12V rise up20V, the output voltage is higher, the quiescent current will increase) Output voltage: DC 3-35V continuously adjustable Output Current: 6A MAX,Please enhance heat dissipation exceed 5A(Input and output voltage dropout related,The greater the voltage difference,Output current is smaller) Output power: = Input voltage * 6A, such as: Input 3.8V * 6A = 22.8W, 5V * 6A = 30W,12V * 6A = 72W, input 24V * 6A = 144W Operating temperature: -40 to +85 ° C (ambient temperature is too high, please enhance heat dissipation) Operating Frequency: 280KHz Conversion efficiency: Up to 96% (efficiency is related to input and output voltage, current, voltage difference related) Overcurrent protection: Yes (input exceeds 12A, automatically reduces the output voltage, have a range of error.) input Reverse Polarity Protection: None, (if required in the input string into the diode) Identification resistor: Tablet PC, pad, phone (some phones identification circuit is different, need to be adjusted) Voltmeter minimum resolution: 0.05V (10V following automatic switching decimal point) Installation: 4 pcs 3mm screws Wiring: Free welding output terminals Module dimensions: length 60mm *width 50mm *height 20mm Short circuit protection: (input 15A fuse) double circuit protection, use more secure. Applications: 1, DIY a power supply, input 12V, output can be 12-35V adjustable, with voltmeter, 2, the power for your electronic devices, can according to your system set output voltage value. 3, as the car power supply for your laptop, PDA, or a variety of digital products supply. 4, DIY a Mobile Power laptop power: Coupled with a large-capacity lithium battery pack 12V 5solar panels regulator. 6, DIY high current Mobile Power with a single lithium battery can be boosted to 5V, comes with USB port and identification resistor, and a large current of 2.5A output, Simultaneously to several cell phone charging. Instructions: 1.voltmeter, power supply options: you can choose via jumpers voltmeter supply is provided by the input or output provided (IN table is input, OUT is the output table) lower voltage can reduce the loss voltmeter. The jumper can be shorted with a jumper cap, remove the jumper cap, voltmeter does not work. 2.USB output port: USB interface board is connected directly to the output terminal for 3V l 5V, can be directly used to charge the phone, has been identified with resistance to note is that in using the USB output, make sure the output voltage is the voltage with your digital product line, remember! ! Otherwise it will burn your digital products. 3 shows the voltage switching: This module via a band switch to switch the display input voltage and output voltage, VI represents the input voltage, VO represents the output voltage. packing including: 1x DC to DC converter 3-35V to 100W Boost step up Mobile power supply module Payment We only accept payments via paypal. All payments must be prepaid, no Cash and COD payment. We will ship the item to the address on your paypal payment notice, Please confirm your shipping address in the PayPal Account. If you have any problem about payment , please contact us. Delivery details Item will be shipped within 3 working days after full payment is received. We ship worldwide with flat rate shipping by post Air mail, the shipment usually takes 15-45 business days . We can also provide express post by EMS(5-8 days) or UPS(4-5 days). The cost is higher than standard postage, extra shipping fees is needed. if you need express post please contact us ! About us We will leave positive feedback to buyer as soon as buyer pays for the item .Your satisfaction is our first priority. Please leave us positive feedback upon satisfaction of the item. Please email us before leaving negative and neutral feedback. We will try our best to solve the issue. We will leave positive feedback to buyer as soon as buyer pays for the item . Contact us we do try respond as quickly as possible. Due to time zone difference, please allow 12~24 hours to get your mail replied. If you have any questions, Please contact with us via ebay message or our customer service e-mail .thanks for your buying ,wishes you have a happy shopping from our shop ! Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	PRODUCT NAME	DC to DC converter 100W Boost power supply
Input Current	10A (MAX) Please enhance heat dissipation than 6A
Module Name	100W boost module
Output voltage	DC 3-35V continuously adjustable
Module Properties	non-isolated step-up module (BOOST)
Output Current	6A MAX,Please enhance heat dissipation exceed 5A
Model	Voltage Regulator USB output voltmeter
Module type	USB output for Charging
Input voltage	DC 3-35V (the limit 36V)
