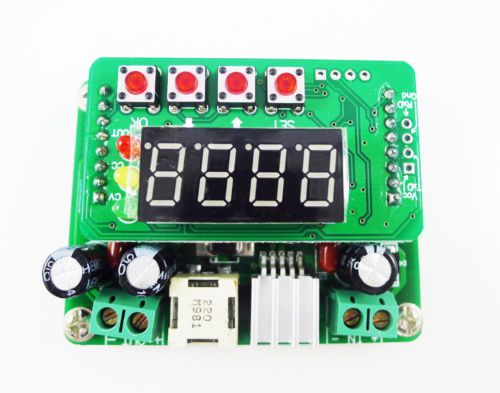

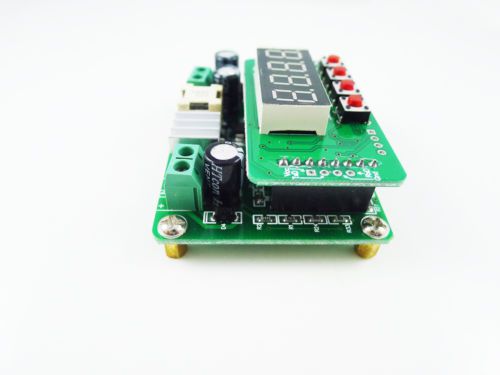

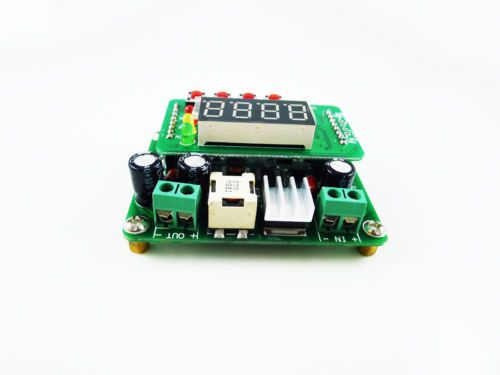

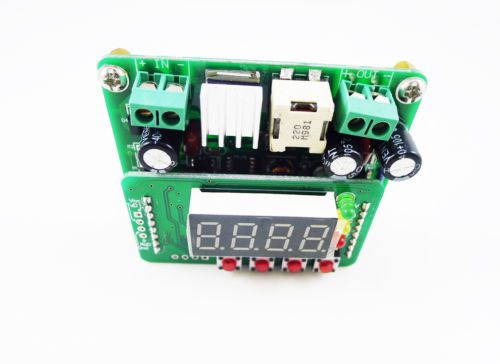

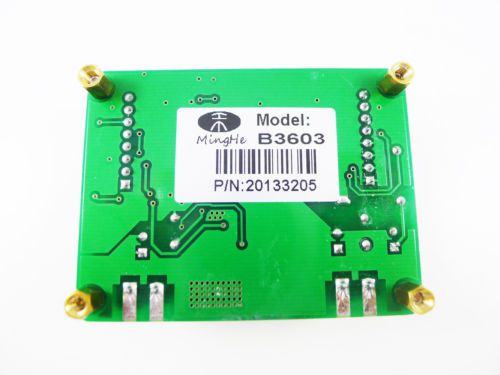

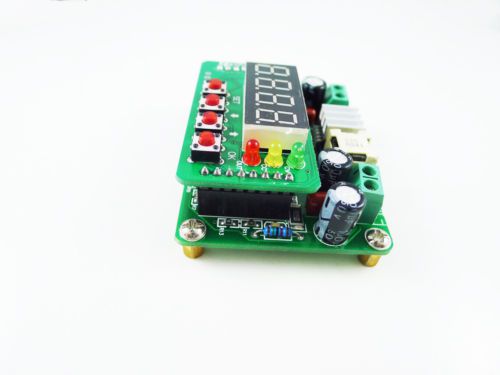

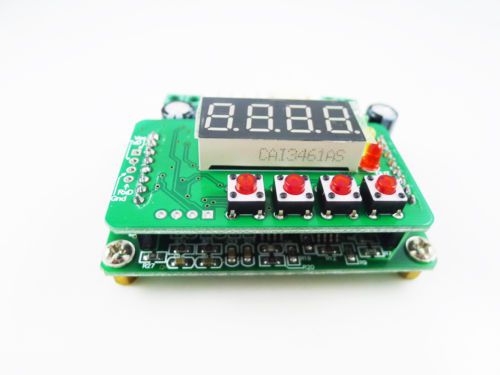

Product DC-DC Digital Control Step-down Module LM2596S 6V~40V to 0~36V 0-3A Product Description: Features: B3603 DC-DC CNC buck module is a fully digital display buck module- small size- high power- high efficiency- stable. Joined the high-speed micro-controller precision measurement and calculation- the output voltage and current value can be precisely regulated- built-in 10 groups memory locations- can be stored at any time- call up the parameters- easy to use. With four digit eight segment LED digital tube- you can display the voltage- current- power- capacity and other parameters in real time. Meanwhile- the module has an automatic output after power on and auto rotate display parameters function- etc.- can be turned on or off according to need of use. Description: Module type: Non-isolated Buck Input voltage: 6-40V (input voltage must 1.5V or more higher than output voltage) Output voltage: 0-36V Output current: 0-3A (maximum current is 3A- stable working current is 2A- continuous long high power working need to strengthen cooling) Voltage regulator / display resolution: 0.01V Power Display minimum resolution: 0.001W Switching frequency: 150KHZ Short circuit protection: Constant Operating temperature: -40 ° C to + 85 ° C Control: Digital Control + Digital Display Conversion efficiency: 92% Current Regulation / Display Resolution: 0.001A Capacity Display minimum resolution: 0.001AH Output ripple: <= 50mv Weight: 43g Display description: 00.00: voltage value- 00.00 ~ 36.00V 0.000: current value- 0.000 ~ 3.000A P.000- P0.00- P00.0- P000: power value- unit W- decimal point position changes with the power position changes. For example: P.123 means 0.123W- P1.23 means 1.23W- P12.3 means 12.3W- P102 means 102W. C.000- C0.00- C00.0- C000: capacity value- unit AH- decimal point position is changed with the change of the capacity. For example: C.123 means 0.123AH- C1.23 means 1.23AH- C12.3 means 12.3AH- C123 means 123AH. --0--- --1--- --2-: Special features 0- 1- 2 --y-: Open the special features --n-: Close the special function SA.- * (* means 0 to 9): Save the parameters to the storage location of 0 to 9 in any one storage location Lo.- * (* means 0 to 9): Recall stored locations 0-9 arbitrary set of parameters Usage: Connect the input and output correctly- ensure that the input voltage is within the required range- the reverse is strictly prohibited- if you are afraid of reversed damage you can concatenated more than 3A diode. How to set the voltage and current values: 1. Boot default display is Voltage Set Value. Voltage value display as "00.00"- unit is "V". Press the "SET" button to switch to the Current Set Value- the current value display format is "0.00"- the unit is "A"- press button to increase the set value- press the button to decrease the value- short press accurately set- long press can quickly set. 2. After the setting is completed press "OK" button to output. 3. Under the output state when display the voltage value press the button can increase the output voltage- pressing the button can reduced the output voltage. Press the button to increase the Current Setting Value when the current value is displayed- press the button can reduced current setting- short press accurately setting- long press can quickly setting. Under the output state short press "OK" button to switch display voltage and current value- long press "OK" button for 3 seconds to auto rotate display- long press again to cancel the rotate display. In the rotate display- press keys is invalid. 4. Under the output state- press the "SET" button to turn off the output. Above are a simple model of the module- which is the default mode- you can see it is very simple and easy to use- if you want to save the recall stored valuesa€?a€?- or see the power- capacity and other parameters in the state of the output- you need to conversion to full-function mode. Package included: 1 x B3603 CNC DC-DC Buck Module Terms & Conditions: Payment : We only accept PAYPAL payment . We will ship to address provided by PAYPAL.If you need to change your address,please change it in PayPal first as we will only ship to your PAYPAL address. Make sure your detail address and full name in PayPal is absolutely correct. Shipping: Most of items will be shipped via hongkong airmail/Singapore airmail/swiss airmail All items will be shipped within 1-2 working days after payment received and cleared(excluding sat,sun&Holiday) Import duties,taxes and charges are not included in the item price or shipping charges .These charges are the buyer’s responsibility. Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying. Return: Warranty: 30-day-warranty from the dispatched date. Please contact us through email before returning defective item. Buyers are responsible for the returning shipping costs under any circumstances. * Return items should include the original packaging and accessories. * Please contact us before leaving a negative feedback, giving us a chance to resolve your problem. * Once you leave positive feedback for us, we will return the same to you immediately :-) Customer Care & Feedback: Our number 1 priority is your satisfaction. Our aim is to make all our customers as happy as possible whilst shopping with us. If there is any queries or problems at all, please do not hesitate to contact us and we will make every effort to respond to all enquiries as soon as possible. If customers are not happy with a purchase, please do not leave negative feedback before contacting us. Please let us know and we will resolve any issues for you asap. Due to our high sales volume, feedback will automatically be left for you once feedback is received. We hope you have a satisfying shopping experience with us & look forward to serving you again in the near future. Thank you very much and Happy Shopping. Engineered for professional eBay sellers! On Jan-07-15 at 00:58:30 PST, seller added the following information:
