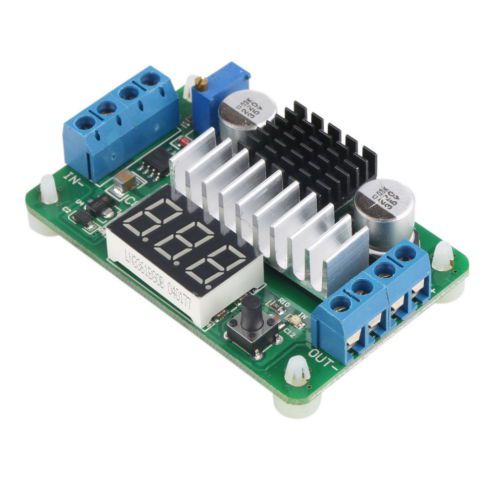

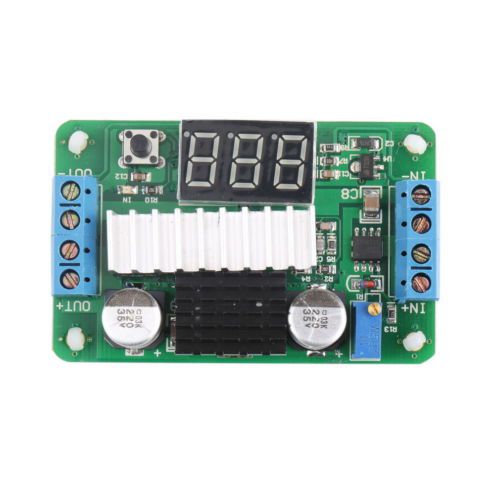

1. Input voltage range :3.5-30V Note: 30V maximum voltage limit must be aggressive in order to avoid accidental damage. 2. Output voltage range :3.5-30V (boost mode, the input must be less than or equal to the output voltage). 3. Input Current: 6A maximum 10A output power: 100W. 4. Note: According to the law of conservation of power output current under nominal conditions. 5. UIN * Iin * efficiency = Uout * Iout (UIN: input voltage Iin: input current). 6. Size: 66mm * 42mm * 18mm Weight: 35 g / pcs. 7. The voltmeter accuracy: ± (5 ‰ +1 word). 8. Static power consumption: Typical 15ma (input voltage output voltage and the digital tube color is closely related to the actual current deviation). 9. IN +: Input the cathode IN-: Input negative OUT +: the output cathode OUT-: Negative output. Features: 1: input and output voltage can be alternately displayed. 2: switched on can be freely defined. 3: with a button to turn off the digital control function, reduce power consumption. Working mode: Output voltage mode: the default boot display ** output voltage mode. * LED indicator turns off Input voltage mode: press the switch once to switch to the input voltage mode **. * LED indicator lights Alternating pattern: Once again press the switch input / output voltage alternating 3S alternately display data (press again to return to the display mode of the output voltage) Operation and digital display description: [0] represents the default the boot display output voltage [1] represents the default boot display input voltage [2] represents the default open to input and output voltage are displayed alternately Long press the button more than 2S digital tube display more information (in this case the key is released), the module automatically remembers the current state of the default power-on state. The digital tube close operation: long press button 4s until the digital tube display the contents of the LED is lit, the display section has been closed. Press the button again to restore the display Data test (voltmeter turned on): 3.7V turn 5V/2A efficiency of 82.5% 5V to 12V/2A efficiency of 88.4% 7.4V turn 12V/2A efficiency of 90.2% 12V switch 18V/2A efficiency of 93.6% 18V switch 24V/2A efficiency of 95.3% 24V turn 30V/2A efficiency of 97.1% Summary: The higher the input voltage, the higher the efficiency. Close the voltmeter boost module will get higher efficiency. Package includes: 1 x DC/DC Converter Note: A. If you need different color or similar items, please click the following photos to visit my eBay store to find it. Thanks. B. Please note the items only could be shipped to your registered address on EBAY. If you need to change address, please contact us cancel the transaction and purchase again after you modify your EBAY address, then we can shipped to your updated address. Shipping: We Ship to Worldwide, except Nigeria, and we do not ship to APO/FPO Items will be shipped within 1 business day on payment received. Items are shipped from Hong Kong using Airmail, reach most of the countries within 10 to 20 business days. Delivery time depends on destination and other factors, it may takes up to 20 business days. Country Delivery Time Working Days (not including holiday) 5-7 8-11 12-14 15-19 20-22 >22 Working Days + Saturday + Sunday 5-9 10-15 16-20 21-25 26-30 >31 United States Rate (item arrived) 5 .1% 50.1% 29.6% 10.5% 4.7% Refund United Kingdom Rate (item arrived) 9.9% 63.2% 19.1% 3.4% 4.4% Refund Australia Rate (item arrived) 21.4% 50.0% 14.3% 7.2% 7.1% Refund France Rate (item arrived) 10.5% 28.6% 43.8% 10.1% 7.0% Refund Germany Rate (item arrived) 11.1% 22.2% 30.3% 20.9% 15.5% Refund Canada Rate (item arrived) 0.0% 47.1% 31.4% 17.6% 3.9% Refund Spain Rate (item arrived) 3.5% 25.0% 47.9% 12.9% 10.7% Refund Payment: We accept PayPal only. All major credit cards are accepted through secure payment processor PayPal . Payment must be received within 7 business days of auction closing. We ship to your eBay address. Please make sure your eBay address is correct before you pay. REPLACEMENT POLICY: All the products we are selling include factory warranty, don't cover items that have been abused, burned and damaged in any form. Please contact us via eBay Message if you have NOT received item in 30 days, we will check it with post office, and then resend or refund any missing item. In the unlikely event that your product is faulty in anyway, you must contact us ASAP and then return it within 7 Days of receipt. The postage and packaging fee will NOT be refunded. We will not be responsible for the delivery or insurance charges incurred in returning item back to us. If you return an item purchased from us, it must be back in Factory Condition. This includes packaging, inserts, manuals etc. Please allow up to 5 Working Days for us to process your returned item. Contact US: If you have any questions, please feel free to email our service specialists 24 Hours a Day, 7 Days a Week. We will reply you ASAP. If no response within 24 Hours, please check the spam in your mail box. We greatly appreciate your POSITIVE feedback. Please do NOT leave negative feedback without asking for help. Our aim is to provide Top Level Customer Service, normally so we will try our best to solve any problem. Please DON'T leave negative or neutral feedback if you haven't received item in 30 days, because we have mentioned the shipping time repeatedly. Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items. On Jan-13-15 at 04:52:34 PST, seller added the following information:
