Dc Digital Combo Meter Voltmeter Ammeter 0-33v 0-999ma 1a 2a 3a High Precision

US $15.50

GuangZhuo, China
Jan 29th

Open on mobile:
QR code

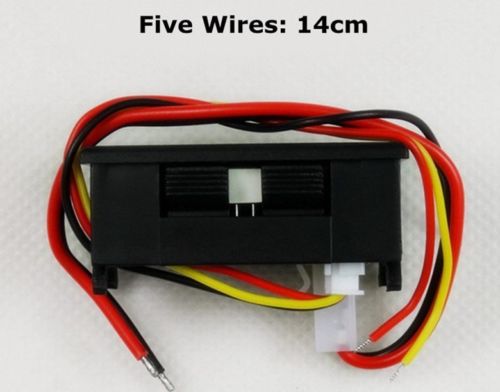

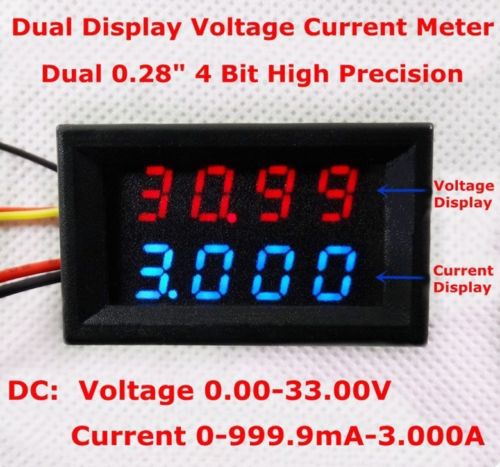

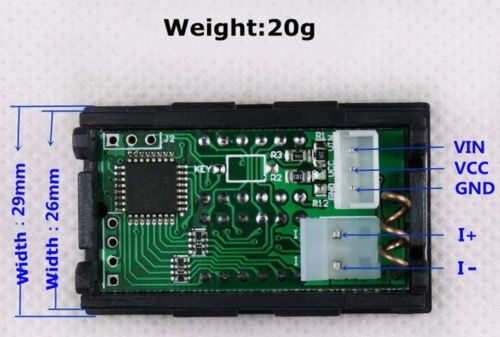

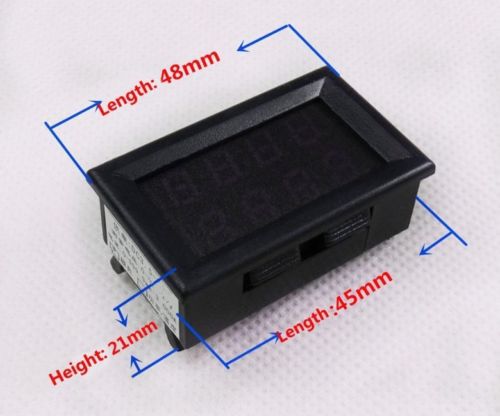

Key feature Top line display voltage, there are four fixed display precision. The measuring range is 0.00-33.00V, the minimum resolution is 10mV. Bottom line display current, there are four fixed display precision,it display *.***A, the resolution is 1mA. Lowe power consumption. It doesn't require external power if measure 3.5-28V. Instruction of wiring Red thin wire (VCC): Power input+ 3.5-28V. Black thin wire (GND): Power input- Measurement signal - 3.5-28V. Yellow thin wire (VIN): Measurement signal+ (0-33.00V). Red thick wire (I+): Current input+ (In series in power supply positive). Black thin wire(I-): Current input- (In series in power supply negative) Figure 1: Power the meter by isolated power. Figure 2: Power the meter by dc-dc converter. Figure 3: Power the meter by the same source being measured. Product Description Power Supply 3.5-28Vdc Measuring range Voltage 0-33.00V Current 0-3.000A Display Type 7 segment 4 digits Red & Blue LED Sampling rate 5 readings per second Accuracy Volt ± (0.5% + 2 byte) / Amp ± (0.3% + 2 byte) Resolution 0.01V, 0.1mA/0.001A Dimensions 48mmx29mmx26mm (L*W*H) Size of mounting hole 45mmx26mm (L*W) Operation temperature -10~65°C Ideal for use with Use in cars, boats, motorcycle and Testing Devices for measuring the voltage and current of battery & electrical system. Solar, Wind, HHO System The auction includes 1 x Digital panel meter 1 x 2 pin cable 1 x 3 pin cable Shipping Normally shipment by international Airmail , it normally take 7-12 working days to the UK, and it will be longer to Europe or other countries (districts). Please make sure your address in PayPal is matched with your shipping address. Return Policy All items have passed strict inspection before they go out. If you are dissatisfied for any reason, please return the product to us. We'll refund your money within 3 business days after we receive your products. Return items must be returned within 14 Business-Days from the date of arrived. Please inform us via email before posting your return package. Payment We only accept payment via PayPal, we will ship item to you as soon as we receive your cleared payment. If there is some problem about the product, please take communication with us before leaving neutral/negative feedback, we can do our best to resolve your problem. your comment is very important in our business success!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Technology	Digital
Display Type	4 digits 0.28" LED
Type	Amp & Voltmeters
Sampling Rate	5 readings per second
Display Color	Red (Top line), Blue (Bottom line)
Measuring Range	0-999.9mA-3.000A(Current) / 0-33.00V(Voltage)
