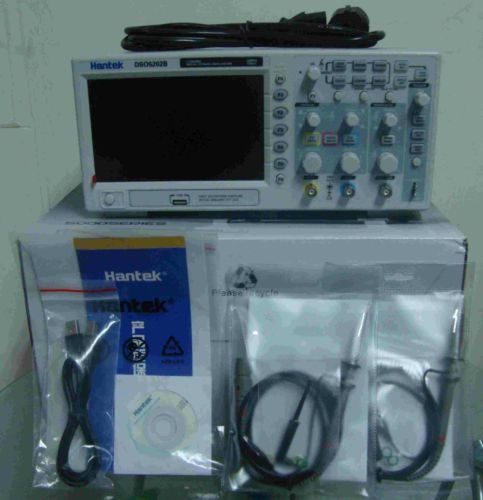

Digital 200mhz 1gs/s 2channel Bench Oscilloscope Scopemeter Usb 7'' Lcd Dso5202b

US $415.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

DSO5202B Features: • 200MHz bandwidths •1GSa/s Real Time sample rate • Large (7.0-inch) color display,WVGA(800x480) • Record length up to 1M • Trigger mode: edge/pulse width/line selectable video/slop/overtime etc. • USB host and device connectivity, standard • Multiple automatic measurements • Four math functions, including FFTs standard • Provides software for PC real-time analysis Specifications: Model DSO5202B Bandwidth 200MHz Real-time Sample Rate 1GSa/s Equivalent Sample Rate 25GSa/s Record Length(Sample Points) Single-channel: Maximum 1M; Dual-channel:Maximum 512K (4K,16K,40K optional) SEC/DIV Range 4nS/div-40S/div (in a 2, 4, 8 sequence) Delay Time Accuracy 500ps Vertical A/D Converter 8-bit resolution, each channel sampled simultaneously VOLTS/DIV Range 2mV/div~5V/div at input BNC Position Range ±50V(5V/div),±40V(2V/div~500mV/div),2V(200mV/div~50mV/div)±400mV(20mV/div~2mV/div) Rise Time at BNC =20ns) CH1,CH2: ±(0.3divxV/div) (within ±4 divisions from center of screen) EXT: ±(6% of setting + 40mV) EXT/5: ±(6% of setting + 200mV) Holdoff Range 100ns-10s Trigger Type Edge Trigger on the rising or falling edge Pulse Width Trigger (when >,<,=,?) on positive or negative pulses Pulse Width Range: 20ns-10s Video Trigger on an NTSC, PAL, or SECAM standard video signal Line Range: 1-525 (NTSC), 1-625 (PAL/SECAM) Slope Trigger (when >,<,=,?) on a positive or negative slope Set Time: 20ns–10s Overtime from the rising or falling edge Set Time: 20-10s Alternate Internal trigger on edge, pulse width, video or slope Measurement Cursors Manual: The difference between voltage cursors ?V; the difference between time cursors ?T; 1/?T calculated by Hz. Tracing: The voltage and time at a waveform point Automatic Pk-Pk, Max, Min, Mean, Cyc RMS, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width Display Type Right angle 7"TFT 16-digit color LCD Resolution 800*480 dots Contrast 16 gears, with the progress bar to show adjustment Interface USB host and USB slave Power Supply Voltage 100-120VACRMS(±10%),45Hz to 440Hz,CATII 120-240VACRMS(±10%),45Hz to 66Hz,CATII Power <30W Fuse 2A, T rating, 250V Mechanical Size Length: 313mm Width: 108mm Height: 142mm Weight 2.08KG (exclusive of packing and accessories) Accessories: Probes x2; Power cord x1; USB cable x1; Software x1; Note: we'll ship this item via Express mail service to USA, Canada, Australia, New Zealand, Ireland, Austria, Belgium, Denmark, Germany, France, Finland, Luxemburg, Italy, Spain, Malta, Norway, Sweden, Swiss, UK, Japan, Korea, Thailand, Indonesia, Malaysia, Philippine, Singapore. Clients from other countries pls contact with us in advance to confirm the different shipping charges before you bid.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	DSO5202B
Channels	2
MPN	DSO5202B
Sample Rate	1GSa/s - 1.9GSa/s
Type	Digital
Number of Channels	2
Bandwidth	100MHz - 349MHz
Country of Manufacture	China
