Digital Electric Watthour Meter 200a Sensus Icon Form 2s 4 Lugs

US $29.99

Disputanta, Virginia, United States
Jan 29th

Open on mobile:
QR code

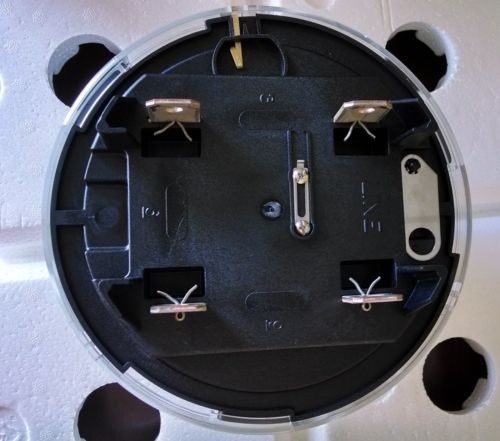

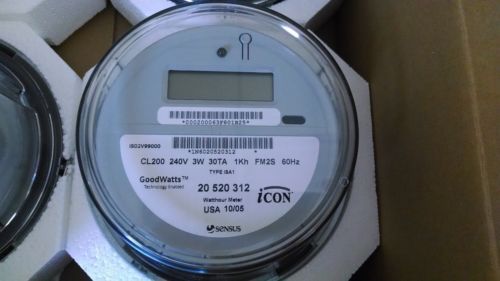

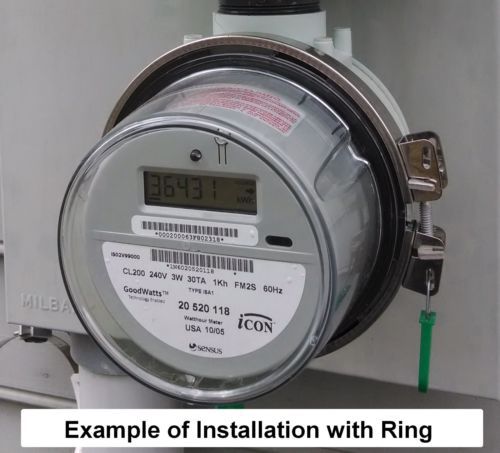

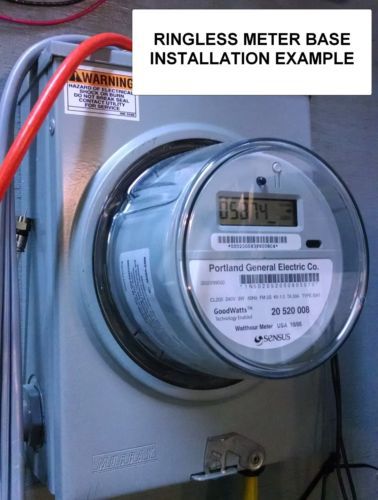

These are standard 200A Form 2S meters with 4 connection lugs on the bottom. CLASS 200 240VAC 60Hz 3W 30TA 1Kh Infrared LED pulse pulses for each 1 WH consumed. Can be used with a variety of electric meter monitors. LCD Display shows actual Kilo-Watt-Hours used. No multiplier needed. Fits standard meter bases that can be purchased at most home improvement stores and electrical supply centers. Can be used with both ring and ringless bases. Photos of both types of installations are included in this listing. Great uses: Marina's can use them to meter the power a boat uses while docked. Campgrounds can use them to meter the campers use at a site while visiting. Farms can use them to help submeter parts of the farm that use power to track costs associated with various farm operations. Properties with guest houses can keep tabs on the power consumed by the guest house. Your Home - You can have a licensed electrician mount this meter below the Utility meter and monitor the accuracy of their bills. Science Classes - these meters can be disassembled for students to study how electricity consumption is measured and how smart meters work. Submetering - if you have a large multi-tenant building, you can monitor the power used by each tenant's section Equipment Monitoring - if you have larger pieces of equipment and want to monitor their power use, these work great. Solar or Wind - meter the amount of power your solar, wind, or other renewable power generation equipment is using. Electric Cars - put a meter on your car charger so you can see exactly how much power the car is using. Pools and Spas - monitor the electrical use of these high energy consumers and measure your savings when you change the way you use them. Teenagers - submeter your teenager's room with all their electronic gear and bill them for the massive usage. Gifts - Buy one an gut it and put a digital clock in the display area and give it as a gift to a retiring utility worker. Not-so-good uses: Do NOT use this meter for any illegal activity. They are no help when you need to change a baby. They don't work well as serving platters. WARNING Any work on, or near, energized meters, meter sockets, or other metering equipment can present a danger of electrical shock. All work on this product should be performed only by qualified electricians and metering specialists in accordance with local utility safety practices, utility requirements, and procedures outlined in Chapter 14 of The Handbook for Electricity Metering (9th Edition). The information contained in this manual is intended to be an aid to qualified metering personnel. It is not intended to replace the extensive training necessary to handle metering equipment in a safe manner. Use extreme caution when servicing with power on Precautions All industry safety precautions must be observed during all phases of operation, service, and repair of the iCon RF Meter. Failure to comply with precautions or with specific warnings in this document violates safety standards of design, manufacture, and the intended use of the metering instrument. Seller assumes no liability for the customer’s failure to comply with these requirements. Residential Electronic Meter - Preliminary Specifications Configuration Form 2S Normal Operating Conditions Nameplate Voltage Vn = 240 VAC Rated Frequency Fn = 60 Hz Power Factor PF = 1.0 Ambient Temperature Ta = 25C +/- 5C Class 200 Test Amps TA = 30 Amps Environmental Specifications Temperature -40C to +85C under the glass Humidity 0 to 100% RH (non-condensing) EMI 15 Volts/m, 25 MHz to 100 MHz Input Specifications Voltage Range 80% to 115% of Vn (192VAC to 276 VAC) Potential Circuit Burden < 5VA, including meter burden at 276 VAC Current Range 0.1 Amps to 200 Amps Current Circuit Burden < 0.25VA at Test Amps Frequency Range 95% to 105% Fn Input over-range requirements Voltage withstand 2.5kV RMS for 60 seconds Current withstand Temporary (0.1 seconds), 7000 Amps peak Continuous (5 hours), 220 Amps RMS Surge withstand Capability (SWC) ANSI C12.1-1995, Sect 10.2.8 Communication RF Network interface 2.4 GHz, IEEE 802.15.4, IPV6 Operating characteristics Burden Power Supply: Less than 3 watts Per phase current burden: 0.1 milliohms typical at 25xC Per phase voltage burden: 0.03 watts @ 240 VAC Accuracy (typical) ANSI Class 0.2 Meets ANSI C12.1 accuracy requirements Miscellaneous Per phase starting current: Class 200, 50ma. Minimum recognized outage: 100 ms Absolute maximums Voltage Continuous: 288 VAC Surge Voltages: ANSI C37.90.1: Oscillatory 2.5 kV, 2500 strikes Fast Transient 5 kV, 2500 strikes ANSI C62.41: 6 kV @ 1.2/50 us, 10 strikes IEC 801-4” 4 kV, 2.5 kHz repetitive burst for 1 min. Dielectric (ANSI C12.10): 2.5 kVrms @ 60Hz, 60 sec. Current Continuous: 120% of meter class Temporary (1 sec): 200% of meter class Applicable standards ANSI C12.1 – 1995 American National Standard Code for Electricity Metering ANSI C12.10 – 1997 American National Standard Code for Watt-hour Meters ANSI C12.20 Energy Management Accuracy ANSI C37.90.1 Surge Withstand Capability (SWC) IEE C64 The blah, blah, blah stuff.... Your feedback is highly valued. We ask that you be fair and reasonable in understanding that despite our best intentions, sometimes things happen beyond our control no matter how rare it may be. If we correct an issue please take it into consideration when leaving feedback. If you have any problems with any aspect of the buying process (be it product information, or shipping issues) we ask that you contact us first before you leave feedback so we can make it a positive experience. To contact us click the Ask a question link near the bottom of each listing. Multiple Shipping Discounts will only be applied to items that are paid for at the same time. We ship almost everything the same day. Delaying payment on additional items will result in multiple shipments. Why don't I offer "Free Shipping"? There is no such thing as FREE shipping. It just means that the shipping costs are included in the price of the item. When you sell hundreds of items, you can average that cost across all of your customers and embed it into the item's price. For the low volumes that I sell, I would have to charge higher than the average cost to ensure we don't lose money on shipping costs. This means that those living closer to me are penalized all the time. I want to bring you this item for the lowest possible cost and then shipping is shared equitably. This probably means that I will lose some west coast sales. But I think it is best overall.

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Was briefly installed for testing. Is like brand new and 100% certified to work flawlessly.”
