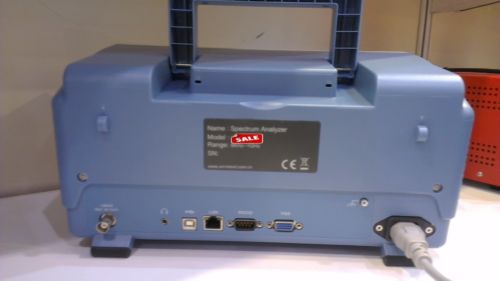

Digital Spectrum Analyzer 9KHz-3GHz & Tracking Generator 6.5''TFTLCD USB LAN VGA, US $4,500.00 – Picture 1

Digital Spectrum Analyzer 9khz-3ghz & Tracking Generator 6.5''tftlcd Usb Lan Vga

US $4,500.00

Shenzhen, China
Feb 24th

Open on mobile:
QR code

English panel and menu is available. Both AC 110-240V version are available. UTS2030D Spectrum Analyzer 9KHz-1.8GHz with tracking signal source UTS2000 Series is a kind of portable spectrum analyzer with high performance. It can be used for many sorts of parameters such as measuring spectrum purity, signal distortion, parasitism, intermodulation and many kinds of modulated signal analysis such as the transmitted power of the transmitter, bandwidth, harmonic wave/anharmonic wave, the uplink / downlink frequency of the satellite communications equipment, and adjacent channel power in tactical radio, etc. It is often used in the fields such as communication, radar, navigation, electronic countermeasures, frequency management and signal detection, etc. Characteristics Frequency range: 9kHz-3GHz RBW: 10Hz-3MHz (1-10 continuous step) Preamplifier Mullti-window and local-scale measurement display Five-trace-line display Various communication interface USB LAN VGA GPIB RS232 Compact structure with light weight (only 4Kg except battery) Appearance of rich colors Equipped with trace source [UTS2000(D) Series] Functions: Phase noise measurement. Signal recognition. Modulation signal measurement. Harmonic distortion measurement. Adjacent channel power measurement. Occupied bandwidth measurement. Channel power measurement. 3dB bandwidth measurement. Chromatogram. Frequency Measurement. Key Technology UTS2000 Series spectrum analyzer adopts digital intermediate frequency technique, microwave integrated technique, intelligent power technology, intelligent power technique, digital filtering technique, high speed data acquisition technique, emc technique, graphics and system software design technique, which greatly improve the machine's performance. General Technical Specifications Model UTS2010 UTS2010D UTS2020 UTS2020D UTS2030 UTS2030D Frequency Frequency 9kHz-1GHz 9kHz-1.8GHz 9kHz-3GHz range Frequency 1Hz resolution Frequency ±(Frequency scale reading x frequency standard accuracy+1%xxsweep range+10% x RBW+0.5x [sweep reading range/ (flying spot-1)]+1Hz accuracy Internal aging rate: <2ppm/year reference temperature drift: <1ppm 15to35 (10MHz) (RBW) Range 10Hz to 500kHz (1-10sequence), 1MHz-3MHz Selectivity RBW=<500kHz <5: 1 typical value(digital implementation, next to Gaussian shape) (60dB/3dB) <5% typical value Accuracy (VBW)Video 10Hz to 3MHz, 1-3-10 sequence bandwidth Display average noise level(DANL) Model UTS2010 UTS2010D UTS2020 UTS2020D UTS2030 UTS2030D Frequency Preamplifier Close/Open 100kHz -90dBm -110 dBm -95 dBm -110 dBm -90dBm -110dBm 1MHz -125dBm -139 dBm -122dBm -139 dBm -120dBm -140dBm 100MHz -122dBm -136 dBm -122dBm -136 dBm -125dBm -145dBm 500MHz -122dBm -140 dBm -125 dBm -140dBm -125dBm -145dBm 1000MHz -120dBm -133 dBm -120 dBm -136 dBm -122dBm -140dBm 1.4GHz -118 dBm -134 dBm -120dBm -138dBm 1.8GHz -115 dBm -130 dBm -123dBm -140dBm 2.2GHz -121dBm -138dBm 2.5GHz -121dBm -138dBm 3.0GHz -120dBm -137dBm Phase noise Frequency offset 10kHz -80dBc/Hz Frequency -90dBc/Hz offset 30kHz Frequency -115dBc/Hz offset 1MHz Model UTS2010 UTS2010D UTS2020 UTS2020D UTS2030 UTS2030D sweep time Sweep range Sweep range 100Hz =<SPAN<= 1GHz 10ms to 3000s zero sweep 1ms to 3000s range sweep model Continuity,single Frequency counter Counter 1Hz,10Hz,100Hz,1kHz resolution Counter Frequency indication x frequency indeterminacy standard accuracy+counter accuracy Amplitude accuracy 20C to30C Overall amplitude accuracy(90%) ±1.2dB ±1.5dB ±1.5dB Input signal range 0dBm ~-50dBm Amplitude Model UTS2010 UTS2010D UTS2020 UTS2020D UTS2030 UTS2030D Max safe Average continuous power Average continuous power Average continuous power input level +23dBm +23dBm +27dBm Max input 50Vdc DCvoltage Input 0 to 30dB step to 1dB attenuator 0-30db, 0 to 30dB, step to 1dB 0 to 39dB, step to 3dB 1dB compression +7dBm point Stray and residual response TOI >30MHz +13dBm SHI +30dBm Input related <-60dBc stray signal Residual <-85dBm responses Signal generator Frequency 100kHz~1GHz 100kHz~1.8GHz 100kHz~3GHz range Model UTS2010 UTS2010D UTS2020 UTS2020D UTS2030 UTS2030D Output -30dBm ~0dBm -30dBm ~0dBm -30dBm~0dBm power step to 1dB step to 1dB step to 1dB Flatness Tracking Tracking Tracking output signal source signal source signal source 100kHz to 1GHz 100kHz to 100kHz to ±3dB 1.6GHz ±3dB 3GHz ±3dB Independent 1.6GHz to Independent source 150MHz 1.8GHz ±6dB source 150MHz to 1GHz ±3dB Independent to 3GHz ±3dB source 150MHz to 1.8GHz ± 3dB Input/Output RF N type 50 input/output USB USB 1.1 (host), USB1.1 (device) LAN 10/100 Base-T , RJ-45 connector RS232 9 pin D-SUB (positive) Model UTS2010 UTS2010D UTS2020 UTS2020D UTS2030 UTS2030D Reference 10MHz, BNC positive, output power 0dBm to +10dBm output power 0dBm±2dB input/output VGA 640x480 60Hz 15 pin D-SUB (negative) GPIB USB-GPIB IEEE-488. USB-GPIB option AM/FM demodulation Headset jack General characteristics Internal 128MB data storage Display 6.5 inch TFT LCD Max weight 4 kg Size 330(W)x163(H)x165(D)mm Work 0 to 40C temperature Storage temperture -20V to 70C Input voltage range: 220VAC± Input voltage range: 220VAC± Input voltage range: 110 ~220VAC± Power 15% AC Frequency range: 15% AC Frequency range: 15% AC Frequency range: 50Hz to 40Hz to 60Hz consumption:35W(max) 40Hz to 60Hz consumption:35W(max) 60Hz consumption:20W(max) Note: the lead time for AC 110V UTS2010D will be 3-4 weeks.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	2030D
Unit Type	Complete Systems & Mainframes
MPN	2030D
Country of Manufacture	China
Analyzer Type	Spectrum Analyzers
