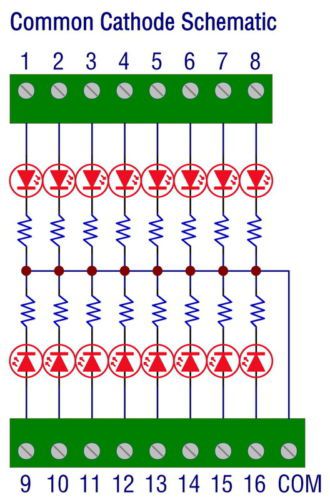

Din Rail Mount 16 Channel Common Cathode Led Indicator Gate Module, 12v Version

US $15.99

  • Hong Kong, Hong Kong
  • Jan 29th

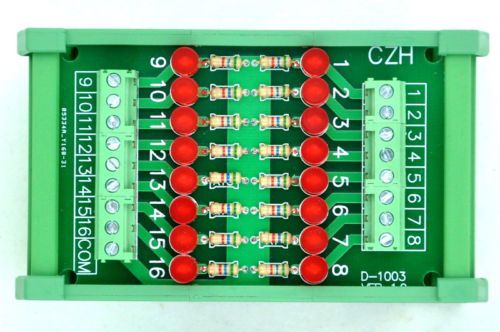

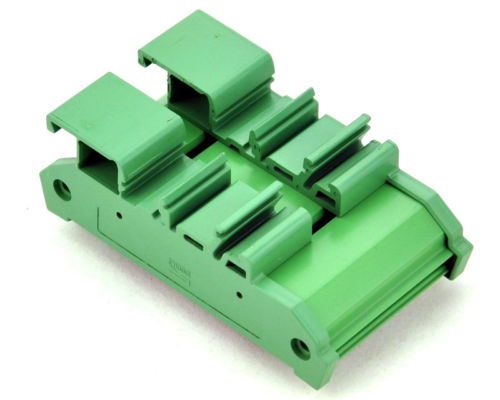

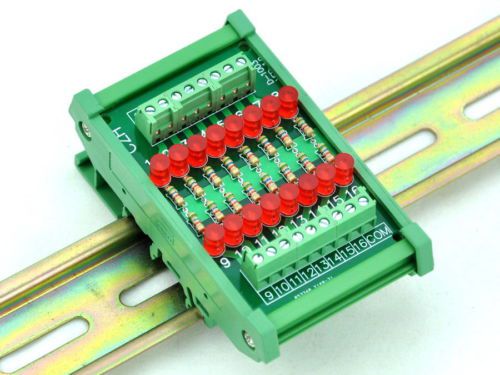

  Description DIN Rail Mount 16 Channel Common Cathode LED Indicator Gate Module, 12Vdc Version. Operating voltage: 7 ~ 22Vdc. Diameter 5mm cylindrical red LEDs. 2400 ohm 1/4 watt resistors. Pitch 3.81mm/0.15" screw terminal block. FR-4 fiber glass PCB, dual copper layers. High quality PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails. DIN mount case can be taken apart for panel mount use. PCB  size: 72 x 47.35 x 13mm(W x L x H). Module size: 87 x 50 x 35mm(W  x L x H). Operating Temperature:  -20?C to +70?C 100% new, never used. Terminal block specifications:         Wire range: 26 ~ 16AWG.         Strip length: 5mm.         Screws: M2, steel, Cr3+ Zn plated.         Pin header and Cage: Brass. These picture  is 24Vdc Version
