Din Rail Mount 16 Spdt Power Relay Interface Module, Omron 10a Relay, 24v Coil.

US $41

Hong Kong, Hong Kong
Jan 29th

Open on mobile:
QR code

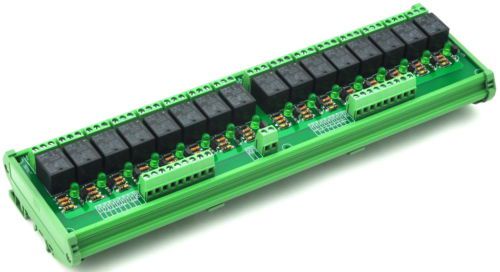

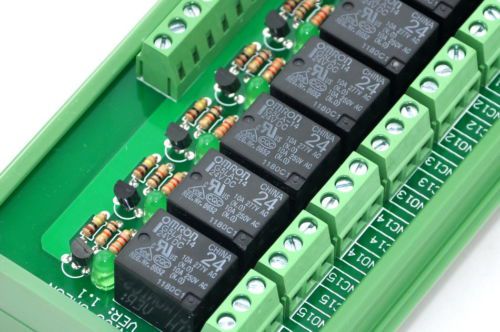

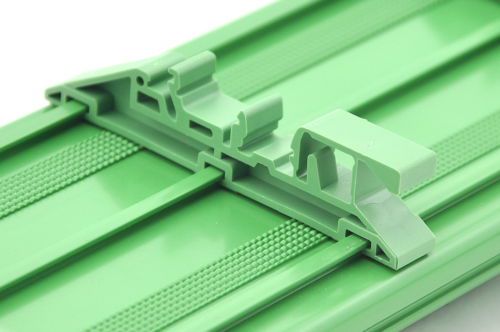

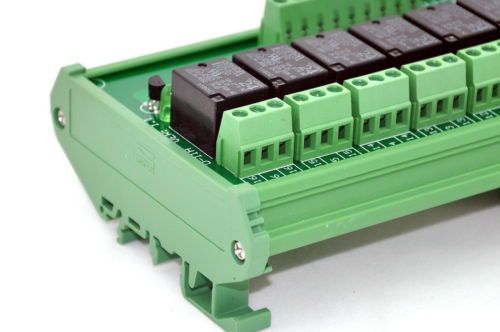

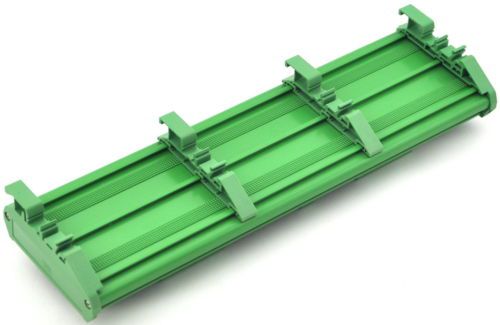

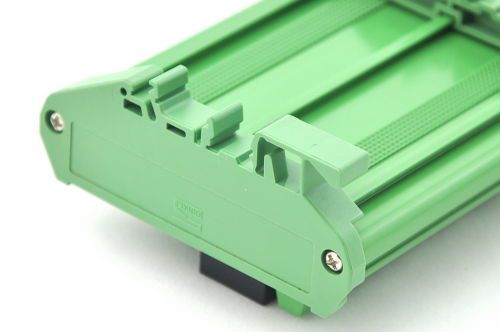

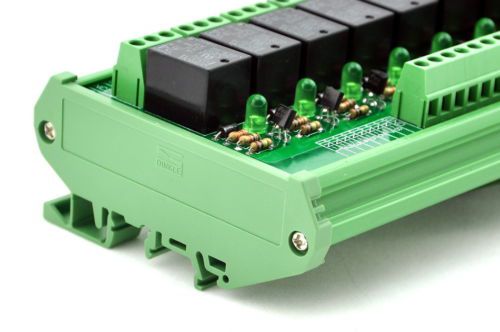

Description 1 Piece Din Rail Mount 16 SPDT Power Relay Interface Module. 24V Version, OMRON G5LA-14 24V Power Relays. LED indicator for each relay channel. Screw terminal block. Din rail mountable - for width 35 / 32 / 15mm rails. High quality PCB carrier. FR-4 fiber glass PCB. External dimensions: 300 x 90 x 49mm(L x W x H). PCB dimensions: 296 x 72 ( L x W ). 100% new, never used. Power Supply: 24V DC / 560mA (relay all ON). Input control signal voltage: 0V - 0.5V Low stage (relay is OFF), 0.5V – 2.5V (unknown state). 2.5V - 20V High state (relay is ON). Input control signal high state current: 2.5V: 0.1mA. 3.3V: 0.18mA. 5V: 0.35mA. 12V: 1.1mA. 20V: 1.9mA. Relay Spec: Coil: Voltage: 24V DC, Coil Resistance: 1600 OHM. Contact Rating: 277 VAC / 10 Amp or 30 VDC/10 Amp. Manufacturer: OMRON Type: G5LA-14 24V DC. Datasheet: Click here. This is a very simple module board, no paper specifications, any questions, feel free to tell me. Wire connection and PCB size: VCC: Power supply input, 24V DC. GND: Power supply ground and control signal ground. IN-X: Control signal input, Low: relay OFF, High: relay ON. COM / NO / NC: Control signal state low, the relay OFF, COM - NO disconnected, COM - NC connected. Control signal stage high, the relay ON, COM - NO connected, COM - NC disconnected. Schematic (a relay) Engineered for professional eBay sellers!
