Din Rail Mount 50-pin Half-pitch/0.05" D-sub Female Interface Module, Dsub, Scsi

US $36.00

  • Hong Kong, Hong Kong
  • Jun 9th

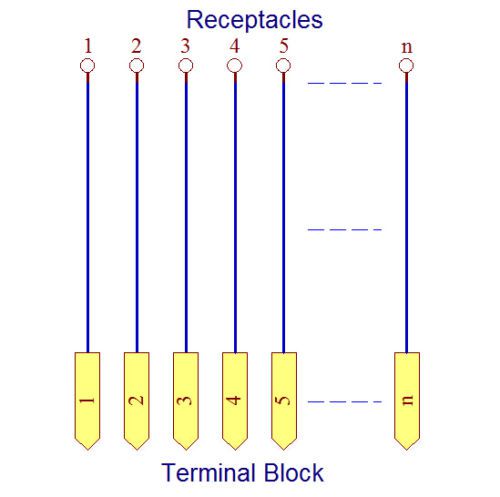

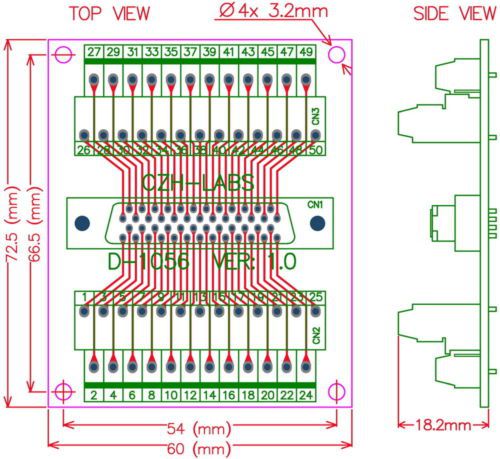

Description DIN Rail Mount 50-pin Half-Pitch/0.05" D-SUB Female Interface Module. This item has been assembled and electrical test passed. 50-pin pitch 1.27mm/0.05" D-SUB female connector. 50-position pitch 3.81mm/0.15" screw terminal blocks. High quality DIN rail mount carrier, can support width 35mm /32mm / 15mm rail. FR-4 fiber glass PCB, dual copper layers. Rated voltage: 50V. Rated current: 1A / per pin. Operating Temperature: -20?C to 50?C Dimensions: 83 x 63 x 43mm (W x L x H). 100% new, never used. Receptacles connector specifications:     Half-pitch D-SUB female connector (0.050 series D-type connector).     Pin pitch: 1.27mm/0.05"     Row to row pitch: 2.54mm/0.1"     Support cable type: Latch bracket & #2-56 screw bracket type.     (other, we can supply M2.6 screw bracket version, if you need M2.6 screw bracket version please contact me). Terminal block specifications:     Wire range: 26-16AWG.     Pitch: 3.81mm/0.15"     Strip length: 5mm.     Screws: M2,steel,Cr3+ Zn plated.     Pin header and Cage - Brass.
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Electronics-Salon / CZH-LABS
MPN MD-D1056DBT-1
Model MD-D1056DBT-1
UPC Does not apply
