Din Rail Mount 8 Channel 6 Amp Ssr Module Board, In 4~32vdc, Out 100~240vac.

US $350

  • Hong Kong, Hong Kong
  • Jan 29th
Open on mobile:
QR code

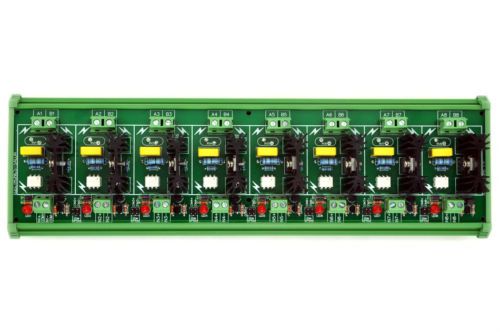

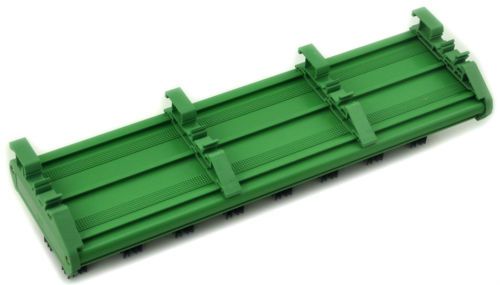

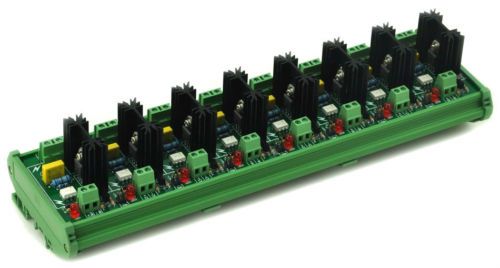

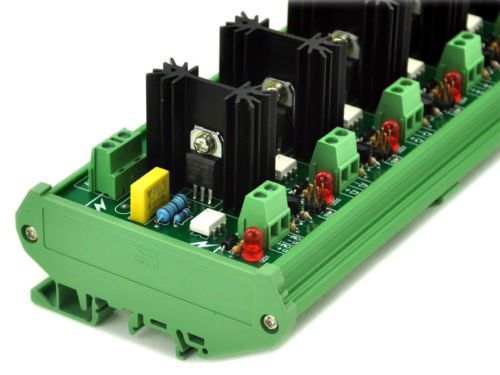

  Description DIN Rail Mount 8 Channel 6 Amp SSR (Solid State Relay) Module Board. This item has been assembled, and electrical test passed. LED indicator for relay action. Fairchild MOC3043 Phototriac and ST BTA12-600B triac. Jumper cap options for relays in common negative or common positive configurations. High quality PCB housing/carrier, DIN rail  mountable - for width 35 / 32 / 15mm rails. DIN mount case can be taken apart for panel mount use. High quality FR-4 fiber glass PCB. PCB dimensions:  L 296mm x W 72.5mm x H 39mm / 11.65" x 2.85" x 1.53" External dimensions: L 300mm x W 90 x H 68mm /  11.81" x 3.54" x 2.68" Input signal control  terminal:                 Action voltage: 3 ~ 32 VDC.                 Current: 6mA at 5VDC, 8mA at 12VDC, 11mA at 24VDC, 13mA at 32VDC.                 Turn off voltage: 0 ~ 0.8 VDC.                 In-Out isolation surge voltage: 7500V. Output terminal:                 Load voltage range: 100 to 240 VAC (50/60Hz).                 Max. on-state average current: 6 Amp.                 Max. on-state current: 12 Amp (< 10 seconds).                 Non repetitive surge peak on-state current: 120 Amp (<20mS).                 Max. on-state voltage drop: 1.5V.                 Max. off-state current: < 2mA / at 220VAC.                 Off-state max. allow voltage: 400V.                 Isolation: Phototriac.                 Zero cross: Yes.                 Load type: General purpose. Terminal block specifications:                Wire range: 24 ~ 12 AWG.                Strip length: 7mm.                Screws - M2.5, steel, Cr3+ Zn plated.                Pin header and Cage - Brass. This is a very simple module, no paper specifications, any questions please feel free to contact me. Attention  High-Voltage: Heatsink is insulated, but you  still need to pay special attention to the output terminal block and components  of within the PCB white border. One Channel Output Load Wiring Diagram Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items. Engineered for professional eBay sellers!
