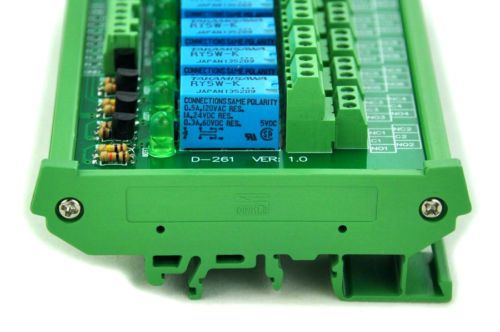

Din Rail Mount 8 Dpdt Signal Relay Interface Module, Dc12v Version.

US $190

  • Hong Kong, Hong Kong
  • Jan 29th
Open on mobile:
QR code
Description 1 Piece DIN Rail Mount 8 DPDT Signal Relay Interface Module 12V Version, FUJITSU TAKAMISAWA RY12W-K high quality signal relays. LED indicator for each relay. Screw terminal block, for 26~16AWG wires. High quality PCB housing/carrier, DIN rail mountable - for width 35 / 32 / 15mm rails. DIN mount case can be taken apart for panel mount use. FR-4 fiber glass PCB, dual copper layers. External dimensions: 153 x 87 x 43mm(L x W x H). PCB dimensions: 150 x 72.5mm ( L x W ). 100% new, never used. Operating Voltage / Current(max.): DC 12V / 240mA. Input control signal voltage:                      0V - 0.5Vdc, low level, relay not action.                      0.5V - 2.5Vdc, unknown state.                      2.5V - 24Vdc, high level, relay action. Input control signal high level current:                      2.5V: 0.1mA.                      5V: 0.35mA.                      12V: 1.1mA.                      20V: 1.9mA Relay Spec:            Manufacturer: FUJITSU TAKAMISAWA.            Type: RY12W-K            Contact Material: Gold Overlay Silver-Palladium.            Contact Rating: 120VAC / 0.5A, 24VDC / 1A.            Datasheet: Click here Wire connection and PCB size:          VCC: Power supply input, DC 12V.         GND: Power supply ground and control signal ground.         IN-X: Control signal input, Low: relay not action, High: relay action.         COM / NO / NC:                 Control signal state low, the relay OFF, COM - NO disconnected,  COM - NC connected.                 Control signal stage high, the relay ON, COM - NO connected, COM  - NC disconnected. This is a very simple module board, no paper specifications, any questions, feel free to tell me. Schematic Engineered for professional eBay sellers!
