Disc Wireless Aec6 Mammo

US $550.00

Deerfield Beach, Florida, United States
Jan 30th

Open on mobile:
QR code

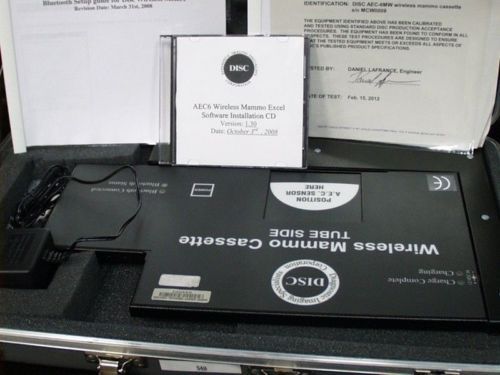

DISC specializes in quality control and calibration instruments which identifies and solves problems with existing radiological systems. AS SEEN IN PHOTOS WITH SOFTWARE for more info http://www.disccorp.mb.ca/products/Wireless_AEC6_Mammo.html Wireless AEC6 Mammo Technical Specifications X-ray energy dependence: Simulates relative light output of Green Rare Earth Screens within +/- 3% over kVp range of 20 to 32 kVp and a patient equivalent thickness range of 2 to 8 cm (within specified operating rates). Digital range: Mammo AEC#; 0 to 6553.5 AE6 MamchexMinimum GRN AEC# Rate: 15.0/sec (approx 1.5 mR/sec cassette exposure rate) Maximum GRN AEC# Rate: 3000/sec (approx 300 mR/sec entrance exposure rate) Power On/Off: Manual switch Controls: Software Reset control. Functions: Measures Mammo AEC#; Calculates Optical Density Value from Mammo AEC#. Power requirements: Internal Rechargeable 9.6V batter pack. Typical battery life: Greater than 15 hrs. Operating environment: 59 degrees to 95 degrees F (15 to 35 degrees C) Electronic Cassette: Dimensions: 10x12x0.5" (24x30x1.3cm) Weight: 3.9lb (1.8kg) Software: Microsoft Excel Template Software CD including Instruction Manual. "The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies". "If so, do not bid on this item unless you are an authorized purchaser. If the item is subject to FDA regulation, I will verify your status as an authorized purchaser of this item before shipping of the item." If you have questions about legal obligations regarding sales of medical devices, you should consult with the FDA's Center for Devices and Radiologic Health: Links: http://www.fda.gov/cdrh/devadvice/ or http://www.fda.gov/cdrh/industry/support/index.html Phone number: 800.638.2041 email:dsmica@cdrh.fda.gov Thank you for your cooperation. Hi Tech International Group, Inc. is Located in Deerfield Beach, FL, USA. Tel 954-426 8512 Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	disc
Country of Manufacture	Canada
Model	Wireless AEC6 Mammo
