Discounted Paxstarter Dip40 Development Board W/ Pic16f887 (same As Pic16f877a)

US $14.00

Stillwater, Oklahoma, United States
Jan 29th

Open on mobile:
QR code

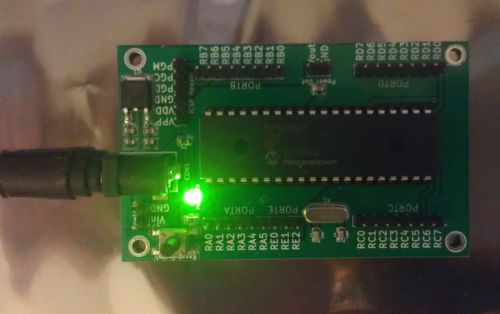

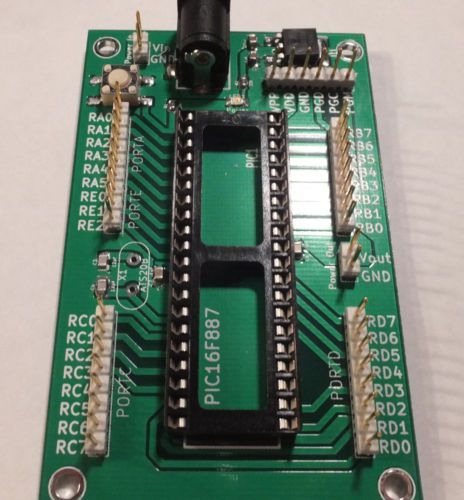

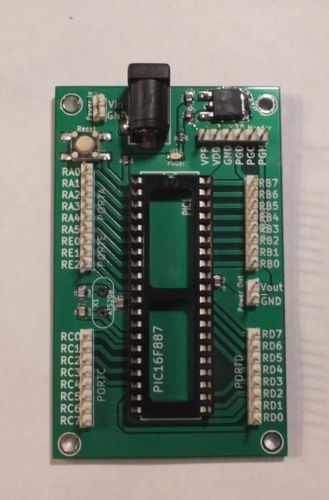

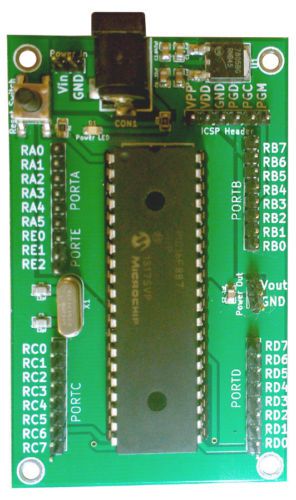

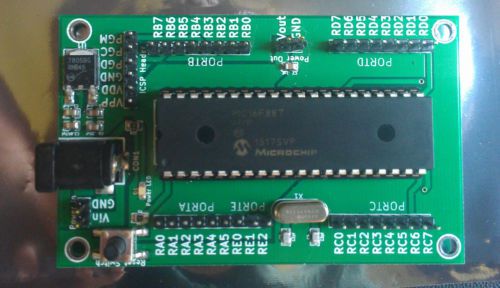

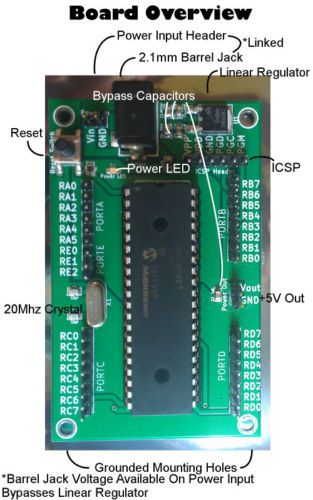

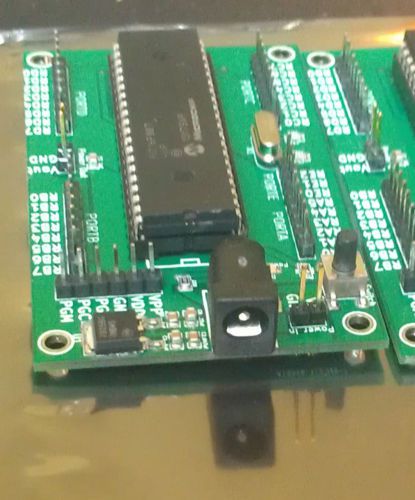

This board is great for beginners to experts. It is a circuit complete with everything you need to run your PIC and project! And it is designed, made, and shipped quickly from the United States! This package includes a new Microchip PIC16F887-I/P microcontroller and a PAXStarter DIP40 project development board. (The PIC16F887 is the same as the PIC16F877A with added enhancements. See this side by side comparison from Microchip's website.) The board includes a 20mhz crystal, ICSP header, barrel jack power input or optional 2 pin power input header, power output for your breadboard, and more. It has everything you need to run your PIC project and connect to your ICD so you can start coding faster. Why worry about mounting a PIC when you can just plug this in and go? The board even plugs right into a programmer/debugger, saving development/testing time and serving as a programmer adapter board four 40 pin PICs. And the board itself can work with many of Microchip's 40 pin (PDIP) PICs. It has a 40 pin socket to allow you to replace the chip as needed. This board also has several bypass capacitors on board to help prevent interference! Quantity discounts available. Use the best offer feature. Get 5% off for buying 2-3, 10% off buying 4-5, 15% off for buying 6+. Note: This board is marked clearance and discounted due to a small cosmetic defect which can be seen in some of the pictures. (The ones without the chip mounted to them.) It's hard to see at first glance, but the PORTB is on the wrong side of the pins in the upper right hand side. It should say PORTB on the left side of the header. Instead it was accidentally put on the right side, over some text. We prefer to recycle as much as we can, and since there is nothing functionally wrong with the board. We thought, why not just offer it at a discount? Hopefully you think it's worth it too. PIC16F887-I/P IC (Already Mounted) 20Mhz Crystal Oscillator In-Circuit Serial Programmer - ICSP Header (ICD Style) - For programming/debugging. Bypass Capacitors on Power Input, Regulator, and Output. LED Power Indicator 2.1mm Barrel Jack Power Input Power Output Header (For Breadboard/Other Devices) Reset Button for PIC Markings for Pins Grouped by Port 40 Pin DIP IC Socket Compatible with many DIP40 Microchip PICs Grounded Mounting Holes Apply +7v to +35v Power Input Through Power Input Header or 2.1mm Barrel Jack On Board Linear Power Regulator: Can handle up to 1A Current If you use a barrel jack, you can draw the input voltage from the power input header pins! Note: At higher power/voltage levels, the power regulator can get hot. Be careful when handling! Note 2: Make sure your wall wart can handle the current you're planning to use. The label should specify. 2-Pin Power Output Header on Right Side Provides +5v and Ground Bypass Capacitor Mounted Next to Header Pins The 6-Pin ICSP Header, including PGM pin, can connect to an ICD header. Note: Do not apply power through the ICSP header. Set your ICD to self power. Otherwise power could go into the wrong side of the linear regulator. The 4 Mounting Holes Are Connected to the Ground Plane The IC Socket Requires a Chip Puller to Safely Remove the IC. If Using A Different PIC, Check Pin Out, Voltage, and Crystal Speed To Make Sure it is Compatible. A full manual is currently being written. It will be posted on-line when complete! A link will be given with the item and posted here. A pin out map and compatibility list is at the bottom of this listing. If you have any suggestions, please let us know! Your thoughts will be added to future revisions. Please use care when handling any electronic items. Take precautions against static discharge and electrocution! We are offering a 30 day DOA/satisfaction warranty on the board. If the item does not work as advertised or expected, please let us know so we can help you! For returns or replacements, buyer is responsible for return shipping to us. We will pay for replacement shipping back to you for damaged replacements. Please double check your address! Buyer is responsible for shipping charges if an item is returned to us due to a bad address! If an item is returned to us without an RMA# within 30 days, we will automatically refund the cost of the item minus shipping. The seller (x86grl) is not responsible for any damage caused by using this board, and any warranty / refund or any other financial responsibility of any kind is limited strictly to the cost of the board itself. The buyer and/or user are responsible for the use of this board! Please do not electrocute yourself! Ask an electrician for help, especially with any high voltage or current projects! We want you to enjoy electronics -- not be hurt by them. If you have questions about this item or how to use it, please ask. We are glad to help! This board is made and shipped from the USA! For multiple items I will happily combine items to reduce shipping costs to you. If the calculated shipping amount looks too high, contact us for an accurate quote. We don't make money on shipping, and we don't want you to have to spend too much either. The item will be sent via USPS unless otherwise requested. The item will be sent in an anti-static bag. Please use care when handling any electronics. Shipping outside the US-48 may be higher than listed. Please contact me for a quote first if you are in Alaska/Hawaii or outside the USA. I can't ship until shipping is paid. (Sorry!) For International shipping, buyer is responsible for any import taxes, duties, VAT, etc. International buyers wanting USPS Registered Mail service (for tracking/confirmation), please add $12.95 to the price of shipping. If you know of any cheaper international shipping options, please let me know! If you need other shipping options, let me know so I can add them. Use This Map For Programming or to Check New PIC Compatibility Vpp (ICSP) / MCLR (Reset Button): Pin 1 RA0: Pin 2 RA1: Pin 3 RA2: Pin 4 RA3: Pin 5 RA4: Pin 6 RA5: Pin 7 RE0: Pin 8 RE1: Pin 9 RE2: Pin 10 Vdd (+5V): Pin 11 Vss (GND): Pin 12 Oscillator 1: Pin 13 Oscillator 2: Pin 14 RC0: Pin 15 RC1: Pin 16 RC2: Pin 17 RC3: Pin 18 RD0: Pin 19 RD1: Pin 20 RD2: Pin 21 RD3: Pin 22 RC4: Pin 23 RC5: Pin 24 RC6: Pin 25 RC7: Pin 26 RD4: Pin 27 RD5: Pin 28 RD6: Pin 29 RD7: Pin 30 Vss (GND): Pin 31 Vdd (+5V): Pin 32 RB0: Pin 33 RB1: Pin 34 RB2: Pin 35 RB3: Pin 36 RB4: Pin 37 RB5: Pin 38 RB6: Pin 39 RB7: Pin 40 This Is a Listing of Pin Out Comatible PICs. Double Check Datasheets, Pin Out, Voltage, and Crystal Speed Requirements Before Plugging In a New PIC! PIC16F1517 PIC16LF1517 PIC16F1519 PIC16LF1519 PIC16F724 PIC16F727 PIC16LF724 PIC16LF727 PIC16F74 PIC16LF74 PIC16F77 PIC16LF77 PIC16F747 PIC16LF747 PIC16LF777 PIC16F871 PIC16LF871 PIC16F874A PIC16LF874A PIC16F877A PIC16LF877A PIC16F884 PIC16F887 PIC16F914 PIC16F917 PIC18F4220 PIC18LF4220 PIC18F4221 PIC18LF4221 PIC18F4320 PIC18LF4320 PIC17F4321 PIC18LF4321 PIC18F4331 PIC18LF4331 PIC18F43K20 PIC18F4410 PIC18LF4410 PIC18F4420 PIC18LF4420 PIC18F4423 PIC18LF4423 PIC18F4431 PIC18F4450 PIC18LF4450 PIC18F4455 PIC18F4458 PIC18LF4458 PIC18F4480 PIC18LF4480 PIC18F44K20 PIC18F44J10 PIC18LF44J10 PIC18F4510 PIC18LF4510 PIC18F4515 PIC18F4520 PIC18LF4520 PIC18F4523 PIC18LF4523 PIC18LF4553 PIC18F4580 PIC18F4550 PIC18LF4550 PIC18F4553 PIC18LF4553 PIC18F4580 PIC18LF4580 PIC18F4585 PIC18LF4585 PIC18F45K20 PIC18F45J10 PIC18LF45J10 PIC18F4610 PIC18F4620 PIC18LF4620 PIC18F4680 PIC18LF4680 PIC18F4682 PIC18LF4682 PIC18F4685 PIC18LF4685 PIC18F46K20

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	PAXStarter DIP40
Manufacturer	Pax Electronics
