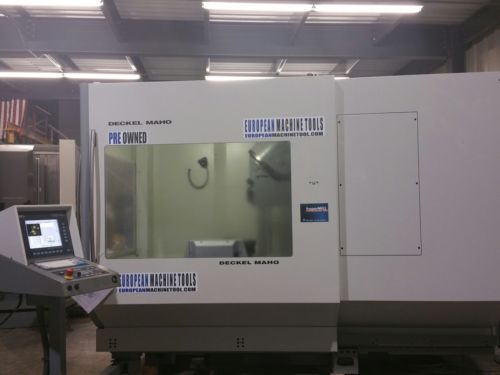

Dmu80p Deckel Maho 5 Axis Cnc Machine Dmg,dmu80p 5 Axis

US $16000

Hartland, Wisconsin, United States
Jan 30th

Open on mobile:
QR code

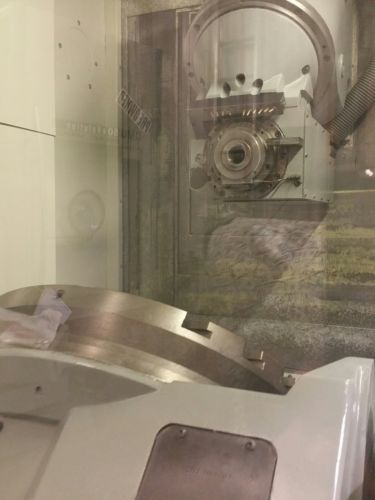

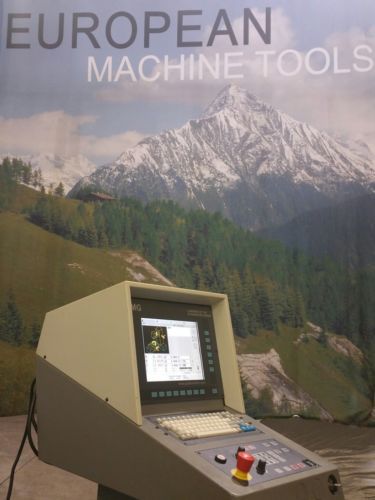

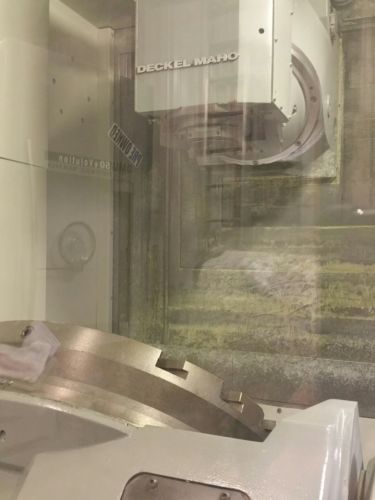

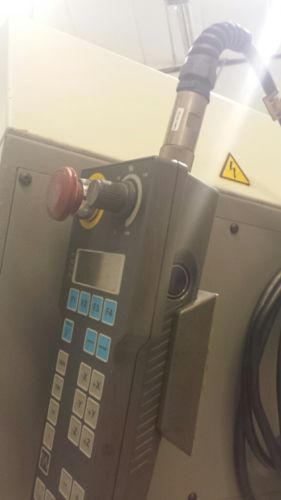

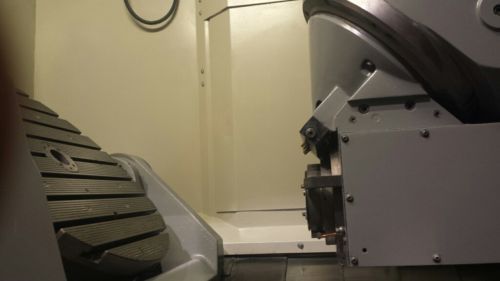

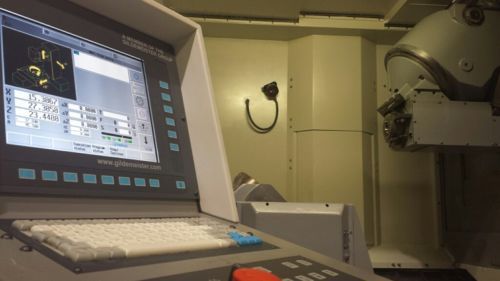

www.europeanmachinetool.com IN STOCK EUROPEAN MACHINE TOOLS. Used Deckel Maho,Used Hermle,Used Mikron, Questions feel free to Visit us or call us 262-327-0800 IN STOCK EUROPEAN MACHINE TOOLS . WE HAVE IN STOCK DMU125 FD MILL-TURN DECKEL MAHO CNC MACHINES. WE HAVE IN STOCK MIKRON UCP600 5AXIS VARIO CNC MACHINES WE HAVE IN STOCK HERMLE 600 and 851 and 1000 MACHINES 3 and 5 side machining. 1x used DMG DECKEL MAHO DMU80P 5-Axis Universal Machining Center: Build Date: 1998, First sold & installed as a demo model in Y: 2001 Single owner machine from a AS 9100 & ISO 9001 Certified Aerospace Parts Producer Made in Pfronten, Germany Mill plus Heidenhain / CNC Control with electronic hand wheel, SW Level with G7 -DESIGN CONCEPT- This is a UNIVERSAL machining center meaning it is two machines in one: both a vertical AND horizontal machining center. The universal milling head on this machine is automatic and programmable. It can be swiveled in 5 seconds from vertical to horizontal, and in combination with the rotary swivel table makes 5-sided 5-axis machining in a single set up possible. Setup time is reduced, the need for multiple setups is eliminated and accuracy and precision are improved. The P Series machines are intended for fully automatic manufacturing of highly complex work pieces in a single set up. Ideal for both small and large batches with the high production components including high pressure CTS (Coolant Thru The Spindle) and chip conveyor. -WORKING RANGE- X axis (longitudinal)…………………………….. 31.5? (800 mm) Y axis (transverse)………………………………. 27.6? (700 mm) Z axis (vertical)………………………………… 23.6? (600 mm) -NC SWIVEL ROTARY TABLE- Clamping surface…………………………. 24.8? diameter (630 mm) Maximum table load……………………………. 1,320 lbs. (600 kg) Rapid speed rotary axis…………………………………. 9.3 rpm Rapid speed swivel axis…………………………………. 7.3 rpm Rotation range…………………. 360 x 0.001 degree (Full 4th axis) Swivel angles To spindle -45 degrees, from working spindle +30 degrees -AUTOMATIC UNIVERSAL MILLING HEAD- Automatic swivel from horizontal to vertical in approximately 5 seconds. The auto swivel head makes this machine 2 machines in one because both vertical and horizontal machining is possible with one work piece clamping. Together with the NC Swivel Rotary table 5-Sided, 5-Axis machining is possible with one work piece clamping. -MAIN DRIVE- Type……………………………………… AC controlled/digital Power 40% duty cycle (S3)………………………….. 20 hp (15 kW) Power 100% duty cycle (S1)……………………….. 13.5 hp (10 kW) Spindle speed range……………………………….. 20-12,000 rpm Number of gear steps………………………………………. None Maximum spindle torque………………………… 95 ft/lbs. (121 Nm) Spindle bearing diameter front……………………… 3.15? (80 mm) Spindle taper……………………………………………. CAT40 Clamping force……………………………………….. 2,250 lbs -FEED DRIVES- Type………………………………………. Brushless AC/Digital Feed rate (x-y-z)………………….. 0.04-590 ipm (1-15,000 mm/min) Rapid feed (x-y-z)………………………….. 79 ft/min (24 m/min) Feed power (x-y-z)……………………………………. 2,250 lbs Anti-collision clutch………………………………………… z Ball screw thread x/y/z………….. 1.6 x 0.5/1.6 x 0.5/1.6 x 0.5 inch -30 POSITION TOOL CHANGER- Magazine type…………………… Chain, horizontal, double gripper Number of pockets…………………………………………… 30 Maximum tool weight………………………………. 22 lbs (10 kg) Maximum tool diameter with no neighboring empty pockets… 4? (102 mm) Maximum tool diameter with neighboring empty pockets…. 6.3? (160 mm) Maximum tool length………………………………. 13.8? (350 mm) Tool change time……………………….. Approximately 7.5 seconds Chip-to-chip time CAT40 Approximately 7.5 seconds vertical, 12.5 sec horiz -HEIDENHAIN GLASS SCALES X/Y/Z AXES DIRECT PATH MEASURING SYSTEM- Input Resolution………………………………………. 0.001 mm -HEIDENHAIN ROTARY ENCODERS B/C AXES DIRECT PATH MEASURING SYSTEM- Input Resolution………………………………………. 0.001 mm -EXTERNAL FLOOD COOLANT PUMP ON OUTSIDE OF SPINDLE- Pump output external jets flow rate……. 5.3 gallon/minute (20 l/min) Coolant tank capacity………………………….. 50 gallon (189 l) -EQUIPPED WITH- Fully enclosed protection cabin Prep for Renishaw MP10 infrared parts measuring probe Coolant tank with coolant pump -DIMENSIONS AND WEIGHT OF MACHINE- Transport dimensions, approximately……… 10’9? L X 10’4? W X 8’2? H Transport weight, approximately……………… 21,504 lbs (9,754 kg) Information: are subject to verification by the Buyer, as is, Under Power EMT.LLC Hartland Wisconsin FOB: Open Truck EMT.LLC Hartland WI CALL/ PH: 262-327-0800 OR VISIT US AND SEE THIS MACHINE UNDER POWER. SOLD AS IS, VIDEOS AVAL. www.europeanmachinetool.com QUESTIONS? CALL TOLL FREE 855-855-2947 OR LOCAL 262-327-0800

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	DECKEL MAHO,DMG
Model	DMU80P 5 Axis CNC Mill-PLUS-HEIDENHAIN
