Donkey Steam Engine Boiler 20 Inch Diameter With Pump Whistle Off Grid Still

US $7,600.00

Sammamish, Washington, United States
Mar 4th

Open on mobile:
QR code

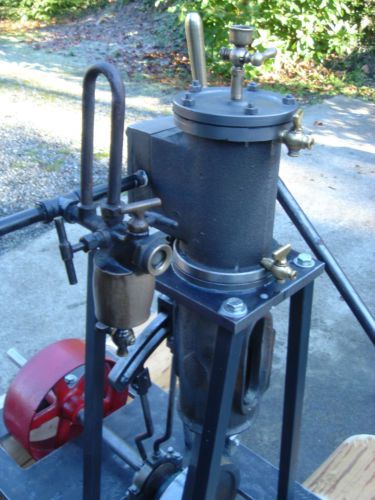

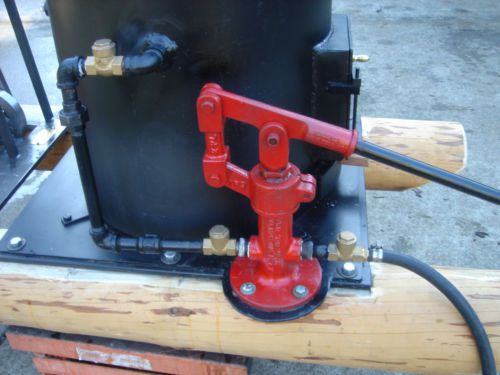

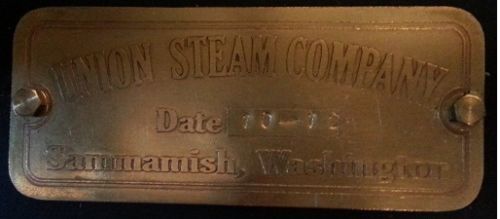

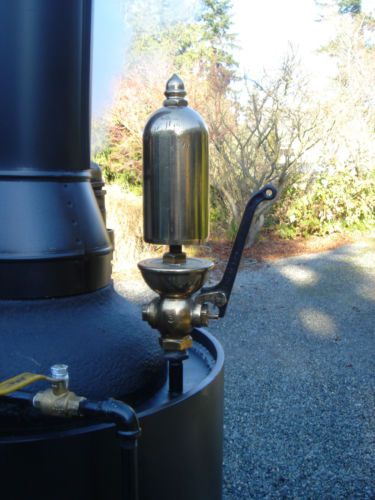

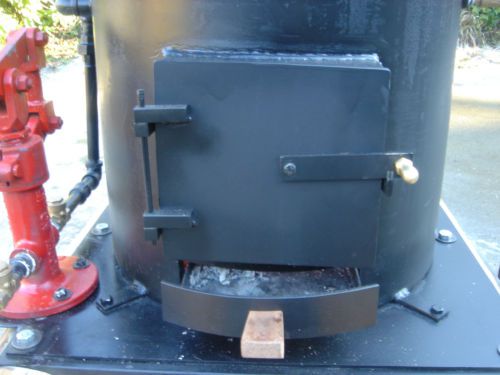

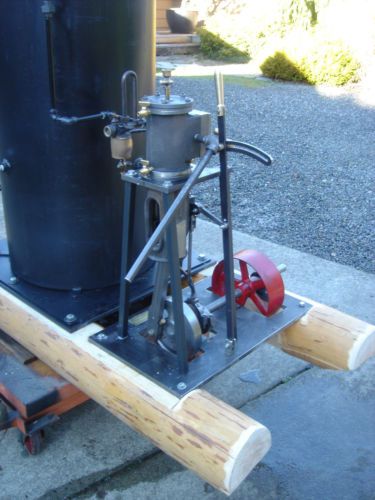

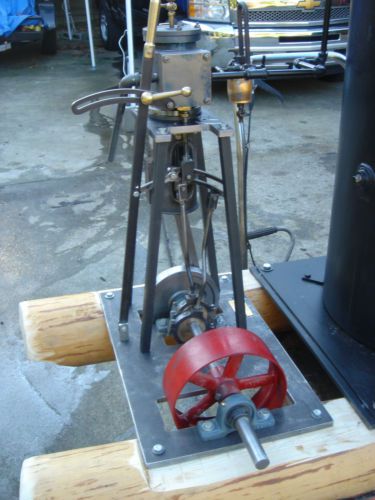

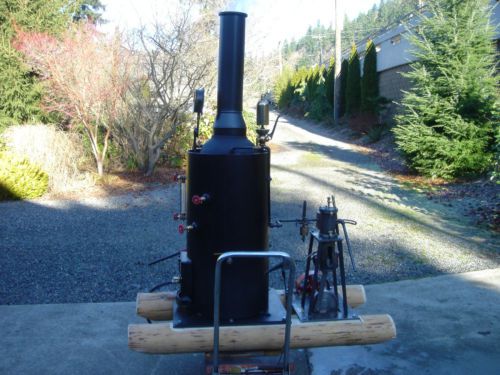

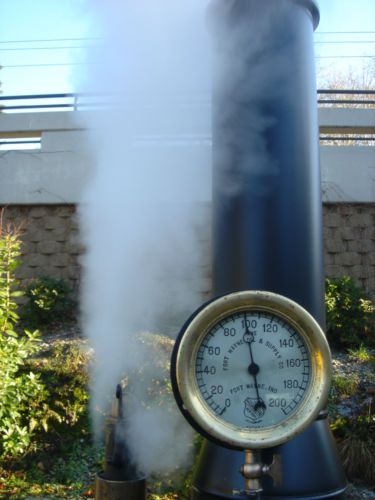

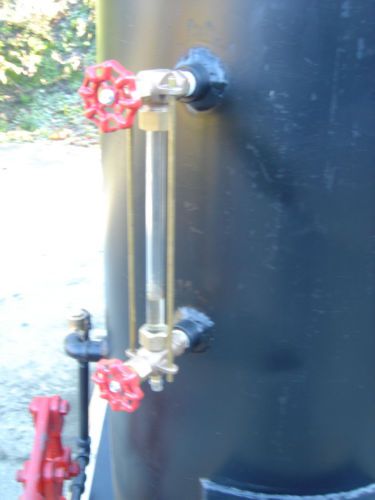

Donkey Steam Engine and Boiler 20" Diameter with Pump, Whistle Off Grid Still Feed Pump Gauge This brand new steam boiler is the 27th fire-tube boiler I have built. The boiler itself is 20" dia. x 38" tall, made of 3/8" steel. It measures 80" high to the top of the stack. The pop-off valve is set at 110 lbs. The boiler has 25 1-1/2" diameter copper tubes rolled in; they are 24" long. The firebox is nearly 20" in dia. x 12" tall with plenty of room for large pieces of wood or lots of coal. Ash pan and grates are built into the firebox and base. A special feature on this boiler is the blower ring. With the addition of this item the draft is increased by ten times. The amount of air moving through the fire is amazing. It also includes a large hand pump. A boiler of this size would cost in the $10,000 range from a boiler shop and that is just for the boiler -- not including the hand pump,water sight-glass, tricocks, antique 3" diameter brass whistle, pop-off valve and early 1900's pressure gauge. The last photo is the builders plate. The boilers are not certified. I do pressure test each boiler to 250 lbs. I have built and sold over 40 boilers with no problems and been a welder for 42 years. They are all equipped with steam pressure relief valves. I can install valves to go off at 90 to 150 lbs. I have owned 3 one hundred year old antique boilers. They all were built with 1/4" steel. My boiler are constructed with 3/8" steel and have copper tubes roller in. They are built last over 100 years. The steam engine is my 6th large, fully-machined and assembled steam engine with forward and reverse. The cross slide guide and engine cylinder were made from castings. The crankdisk, eccentric, piston and rings, and all moving parts for the engine were machined from steel and bronze raw material. The engine has forward and reverse with a bore of 3 inches and a 4-inch stroke. The overall length of the engine alone is 26" (width 14" and height 28"). The flywheel is 10" in diameter and weighs 125 lbs. I estimate the hp at 3-4, depending on boiler pressure. Peeled log skids: The steam engine and boiler are mounted on a constructed peeled log base in the style of logging steam donkey skids. The logs are 8" in diameter by 62" long. The lifting table is not included. Shipping by Fastenal freight has saved about half the cost of normal LTL freight haulers. **Shipping: I will remove small parts that might be damaged or lost in transport, strap it securely to a pallet and deliver it to a shipping terminal in the Seattle area.

Condition:

New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...

Country of Manufacture

United States
