Douglas Sd10 Pot/pan Washer

US $1,799.00

Detroit, Michigan, United States
Jan 31st

Open on mobile:
QR code

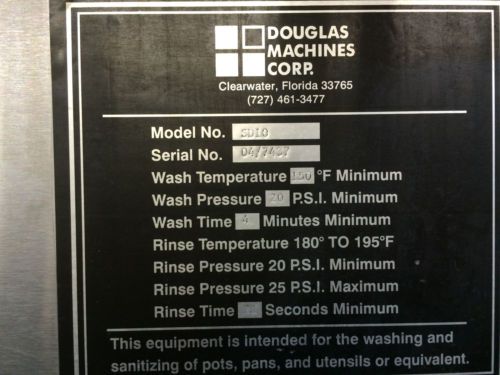

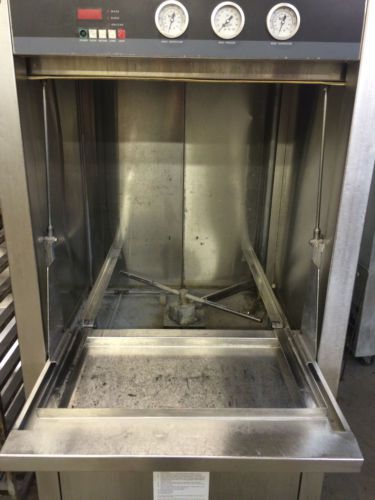

Douglas Machine Pot Utensil Washer Model SD-10 Engineered with a split-door design, the Douglas Machine Model SD-10 is push button easy to operate and loaded with convenient features. It has a heavy-duty 5 H.P. pump and a generous 10 pan capacity. This machine even holds up to 140 quart mixing bowls. It is also equipped with a digital display to monitor key performance functions and make the machine easier to operate and maintain. Model SD10 Serial 04/7437 Electrical 480 Volt - 3 Phase, 29 Running Amps, 40 Amp Minimum Service Breaker Dimensions 36" X 36" X 71 1/8" Approx Ship Weight 1500 lbs Features: Design & Operation: Designed for batch type operation where the wash rack is loaded with items to be cleaned. After the door is closed, the short, medium or long wash cycle is selected then which initiates a 150° F. recirculating detergent wash followed by a 180° F. final fresh water sanitizing rinse. The final sanitizing rinse water flows into the recirculated wash tank for reuse and freshening causing excess water to overflow to drain. A buzzer and unload light indicates cycle completion. The door is then reopened for unloading and reloading for the next cycle. Booster heaters maintain proper operating temperatures. Cabinet: 36” wide x 36” deep x 71 1/8” high (96 7/8” with gas heated rinse tank). Door Opening: 26” wide x 28 1/2” high. Wash Chamber: 24 3/8” wide x 27 3/8” deep x 28 1/2” high. Constructed of #16 gauge, 300 Series STAINLESS STEEL with a #3 finish. All seams are tig welded. Seams, where needed for watertight construction, are continuously welded. All other seams are stitch welded for strength. All welds are cleaned inside, cleaned and buffed outside. Door: Front loading, split type design for easy loading and unloading. The top half of the door system rises while the lower half folds down to create a space-saving drain table. Door is interlocked with limit switch to prevent machine operation while door is open. Constructed of #14 and #18 gauge, 300 Series STAINLESS STEEL with a #3 finish. Recirculating Wash Tank: Constructed of #14 gauge, 300 Series STAINLESS STEEL, heated by 12 KW electric immersion heaters (infrared gas, live steam or steam coil options are available). Complete with low water protection, automatic fill, 1 1/4” NPT overflow connection, 1 1/4” gate drain valve, thermometer, pressure gauge and is thermostatically controlled. 25 gallon tank capacity, sloped to drain. Shipping Please use the freight calculator provided above. Enter zip code, whether you're at a residential or business location, and if a liftgate is needed to unload your item. To inquire about shipping cost to your location contact FREIGHTQUOTE 1-800-323-5441 If you’d like to make your own shipping arrangements please have your shipping company e-mail the Bill of Lading. We will print a copy for the driver. Our warehouse is equipped with forklift and loading dock. If you ship items yourself or would just like to get the best shipping prices for what you order ask Tony to set up a free account for you! Please allow 10 business days after payment has cleared for shipment. Guarantee Everything is sold as-is (unless noted.) No warranties expressed or implied. Most of our items are cleaned and tested by our technician. By placing bids, making offers, or purchasing from this online store it is understood that you have read all of the above and agree to the terms. Item may be picked up at our warehouse during our regular shipping/receiving hours with adequate notice to prepare your item for loading. We reserve the right to end our auctions early at our sole discretion Specifications: Door Style: Split-door Wash Pump: 5 HP Floor Space: 36" wide, 36" deep Door Opening: Sheet Pan Capacity: 26" wide, 28 1/2" high 10 per cycle, 100 per hour

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Douglas
Model	Sd10
