Dranetz Bmi Encore 61000 Pq W/1 Bmi 5537 Current Modules ^no Software Included

US $2,150.00

Youngtown, Arizona, United States
Mar 11th

Open on mobile:
QR code

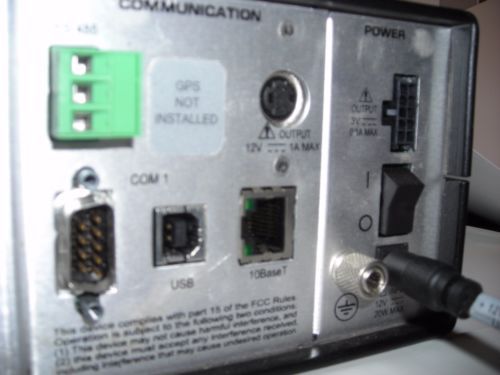

DRANETZ ENCORE SERIES 61000-PQ POWER QUALITY ANALYZER. COMPREHENSIVE POWER QUALITY MONITORING APPLIANCE with 1 DRANETZ/BMI 5537 CURRENT MODULENOT ABLE TO TEST EXCEPT THAT IT POWERS UP AND SEEMS TO FUNCTION. Seller was ubable to test further due to lack of software and/or required training. Equipment is in excellent physical condition and appears hardly used at all NOTICE***NO SOFTWARE IS INCLUDED!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! BID PACKAGE INCLUDES ONLY WHATS LISTED HERE AS IS or WHAT YOU SEE IN THE ABOVE PICTURES: ________________________________________________________________________________ INCLUDES: 1 DRANETZ ENCORE SERIES 61000 PQ CONSOLE 1X Power Quality Analyzer ENCORE SERIES 61000 model no. #61STD HOST MODULE 61HC NO GPS INPUT MODULES INSTALLED AS FOLLOWS: qty. 3 # 61MPZ qty. 1 # 61MVS 1 12V OEM DRANETZ AC ADAPTER 1 DRANETZ BMI 5537 Current Modules NEW W/CABLE and TERM BOARD MISC CALIBRATION LOG AND MANUFACTURER ENCLOSED DOCUMENTS ________________________________________________________________________________ DOES NOT CONTAIN MANUALS OR SOFTWARE!!! THIS IS NOT A COMPUTER. FOR MORE INFO ON THIS 61000 PQ LOOK AT MY PICS TO SEE INSTALLED COM CARD AND MODULES IN CONSOLE FOR OVERALL CONFIGURATION INSTALLED FROM FACTORY as these are custom ordered and configured. Seller has no experience in or knowledge of the use of this monitoring equipment and should be used only by trained persons knowledgeable in its use and trained specifically for its use. Please email any questions thru the ebay email system and I will respond same day or that evening. See below for more specs. COMPATIBLE WITH CURRENT AND LEGACY DRANETZ BMI PRODUCTS (4) differential inputs, AC/DC • Sampling: 512 samples/cycle, 16bit A/D, synchronous sampling. Range: 1-600 Vrms, +/- 1000VPK • Frequency: 16/20Hz, 50Hz, 60Hz, 400Hz (optional) • Full Scale Accuracy: 0-600V 0.1% reading +/- 0.05% full scale, 7KHz bandwidth for low/medium frequency transients 100-300V AC 0.1% reading for IEC61000-4-30 • Input impedance: 10M? to ground • Choice of connections: Screw terminals, safety connectors, D connector for use with (optional) remote pod with screw terminals. Choose one. • Optional: Anti Aliasing filters • Optional: High Speed transients (total of 2 slots) - Sampling: 1MHz - Accuracy: +/-10% reading, +/- 0.5% full scale CURRENT MODULES • Channels: (4) differential inputs, AC/DC • Sampling 512 samples/cycle, 16 bit A/D. Range: Full scale current = 1.5Vrms, crest factor of 3 • Accuracy: 0.1% reading +/- 0.05% full scale, 3KHz bandwidth for low/medium freq. transients. Does not include CT. • Choice of connections: TR connectors, D connector for use with (optional) remote 5A or 1A pod with screw terminals or 5A/20X pod with feed through tubes. Choose one. • Optional: Anti Aliasing filters • Optional High Speed transients - Sampling: 1MHz - Accuracy: +/-10% reading, +/- 0.5% full scale VOLTAGE TRANSDUCER INPUT MODULE • Channels: (4) differential inputs, DC coupled • Sampling: 100KHz. Range: 0-24VDC • Accuracy: 0.1% reading +/- 0.05% full scale plus transducer accuracy • Input impedance: >100K? to ground • Connections: Screw terminals CURRENT INPUT TRANSDUCER INPUT MODULE • Channels (4) differential inputs, DC coupled • Sampling: 100KHz. Range: 4-20ma • Accuracy: 0.1% reading +/- 0.05% full scale plus transducer accuracy • Connections: Screw terminals DIGITAL INPUT MODULE • Channels: (8) • Sampling: 1KHz. Range: 0-135V AC/DC • Triggers: Edge, level • Connections: Screw terminals RELAY OUTPUT MODULE • Channels: (4) • Max voltage 250VAC/DC • Type: Form C MONITORING/COMPLIANCE • IEC61000-4-30 Class A, IEC61000-4-7, IEC61000-4-15 • EN50160, NVE, IEEE1159, IEEE1453, IEEE519, IEEE1459 • IEC61000-3-6/7 REVENUE ACCURACY • ANSI C12 - ANSI C12.1 Accuracy compliant - ANSI C12.20.0.2 compliant • IEC - IEC 60687 0.2S compliant - IES 60687 accuracy. HARDWARE: RS • V & I RMS (Sag/Dip, swell, interruption) 1 cycle resolution, 1/2 cycle steps as per IEC61000-4-30 - Reference: L-L, L-N - Pre/Post cycles : 30 pre (max), 10,000 post (max) • Transients: - Waveshape Triggers: Cycle by cycle, RMS deviation - High speed transients (optional) - Peak transient • Journals (stored parameters): High, low, very-high, very-low MEASURED PARAMETERS (NOT LIMITED TO THE FOLLOWING) • Power - V, I, W, VA, VAR, TPF, DPF, Demand, Energy, etc. • Harmonics/Interharmonics/Distortion (per IEC61000-4-7) - Harmonics individual harmonic spectrum to the 63rd for V & I - Vthd, Ithd, Vtid, Itid, K factor, TDF, TIF, more - 5 user specified frequencies - Unbalance: Symmetrical components, worst from ave. • Flicker (per IEC61000-4-15, IEEE1453): Pst, Plt, sliding Plt COMMUNICATIONS: • 10/100BaseT Ethernet, RS232, RS485, USB (future functionality) • Optional GSM/GPRS, Analog modem • Protocols: XML, Modbus TCP/RTU, HTTP • Time synchronization: NTP, optional GPS USER INTERFACE • Remote: Web browser via Encore Series Software:. Primary UI for setup, trends, reports, real time. Available languages; English, Spanish, French, German, Italian. Instrument web browser for metering. English only. • Optional Local Display: 1/4 VGA touch screen remote display, rack mounted display. Languages: 12 GENERAL SPECIFICATIONS • Size (HxWxD): 4" x 11" x 8" (10.2cm x 28cm x 20.3cm), Weight: 4.2 pounds (1.9 kg) • Operating Temperature: -10? to 60? C • Storage Temperature: -40? to 85? C • Humidity: 10 to 95% non-condensing • System Time Clock-Crystal controlled-1 ms resolution • Power supply: 12VDC - 15 minute internal UPS - AC supply: 90-264 VAC 47-63 Hz - Optional 125VDC, 220VDC, 48VDC • Memory 1GB, internal SYSTEM CONTROLLER • Industrial grade computing platforms: InfoNode model 5502 (CF memory), 5504 (hard disk). Choose one. MISCELLANEOUS OPTIONS • Enclosures: Weather resistant, rack, wall, switchgear, desktop.

Condition:	For parts or not working: An item that does not function as intended and is not fully operational. This includes items that are defective in ways that render them difficult to use, items that require service or repair, or items missing essential components. See the seller’s listing for full details. ...	Brand	DRANETZ
Current Range	0 to 6000A
Model	ENCORE SERIES
Input Voltage	1 to 600VAC/DC
MPN	61000 PQ
Terminal Connection	Safety Jack
ManufacturerPartNumber	ENC-TR-S
Manufacturers Warranty Length	1 Year
SKU	G7134653
Memory	1 GB
Item	Energy Meter Starter Kit
Interface	Multiple
Number of Channels	8 (Expandable)
Max. Watts	100 TW
Phase	1 to 3
