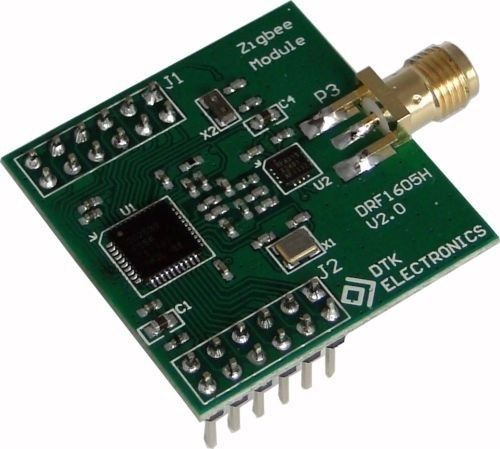

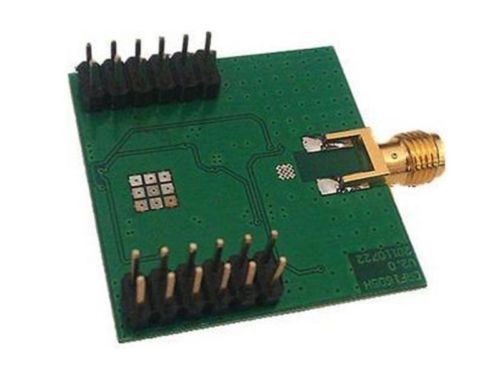

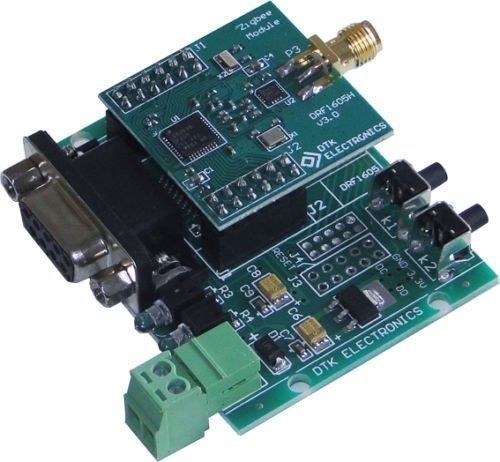

DRF1605H Zigbee Module 1.6km Transfer CC2530 Wireless Module UART to Zigbee Description 100% Brand new The Advantage: 1, NetWork creation automatically: after power on, the Zigbee network can create automatically and the net can repair by itself. 2, Data transmitter simply: the are two different methods to send data, first is clarity transceive, second is point to point. 3, Simply used: customer can use it as UART cable and ignore ZigBee protocol. 4, UART Interface (TX & RX) to Zigbee 5, Built-in RS485 direction control 6, High power module,the distance can reach 1600M 7, Customer can use it with ZigBee USB mother board as follow 8, As the pin distance is 2.54mm or 2.54*n, thus it can connector to versatile board 9, Any MCU can connect to this module, just need MCU has UART ( TX & RX @ 3.3V ). Electronic Parameters: Input voltage Standard : DC3.3V Range: DC 2.6-3.6V Temperature range: -40C~85C Serial port rate: 38400bps(Default), 9600bps, 19200bps, 38400bps, 57600bps, 115200bps Radio frequency: 2.4G(2460MHz), Can changed(2405MHz - 2480MHz,Step:5MHz) Wireless protocol: Zigbee2007 Distance Visual distance: 1600 Meters Working current Sending: 110mA(Max) 50mA(Average) Receiving:35mA(Max) Standby: 40MA(Max) Users can customize the low-power module (standard module does not have this feature) Receiver sensitivity: -110 dBm Chip: CC2530F256,256KFLASH Configurable Point: Can be configured as Coordinator,Router Default:Router,PAN ID=0x199B,Radio Channel=22(2460MHz) Interface UART 3.3V (TX & RX) Built-in RS485 direction control, RS485 chip can directly drive RS232 chip can directly drive Direct USB to RS232 chip driver Mechanical parameters: (Top View,Uint:mm) Internal Structure and the Pin: (Top View ) Appearance: Connections : DRF1605H fully compatible with DRF1605 pin, can be connected to USB baseboard, RS485 baseboard. Customers needn't to change any design, can be used directly DRF1605H replace DRF1605. Zigbee Module's Network Zigbee network node has three network forms: Coordinator, Router, End Device. Coordinator: used to create a Zigbee network, when a node joins, the assigned address to the child node, Coordinator usually defined as a device does not power down, no low-power state for the module DRF1601, DRF1602, DRF1605. Each Zigbee network needs and only needs a Coordinator, different networks PAN ID (network ID) should not, if there is room for two in the same Coordinator, PAN ID if they are the same as the original, and the latter on the power of the Coordinator of PAN ID will automatically add one to avoid PAN ID conflict. Router: responsible for forwarding data packets to find the most suitable routing path, when a node is added, the node can assign an address; Router is usually defined as a power supply device, not a low power state for the module DRF1601, DRF1602, DRF1605. Each Zigbee network may require more than one Router, Router can each send and receive data can also forward data when a network all by the Coordinator (1 unit) and Router (more) form, this network is the real MESH network (network like network), each node sends all the data is automatically routed to reach the target node. When a ZigBee network formation (MESH network): Router to obtain the address (Short Address) is constant, can be used as point to point data transmission using the address; Even if power-down Coordinator, Router still maintaining the network, so between the Router and the Router is still able to communicate; Coordinator power-down even when there are new nodes added, still able to get through the existing Router address, join the network; Router is usually referred to as FFD (Full Function Device) (all-nodes) Network nodes: 1 Coordinator + n Router, supports a total of 9331 nodes: Zigbee MESH (mesh) is characterized by 1, the network consists of a Coordinator + n Router 2, each node both send and receive data, can also act as a router, forwarding data 3, the network can be any communication between nodes, even if all other nodes off (including the Coordinator), these two nodes can communicate 4, each node within the network (Coordinator, Router) are maintained with the network function, as long as one node is running, the new node can join the network by this node 5, node joins, the automatic distribution of the Zigbee network address, and keep the same address 6, route calculation is automatic forwarding of data does not depend so join the network node through which Zigbee network networking and network testing Basic concepts: Zigbee module has two types of nodes, namely Coordinator (master) and Router (from node) Each Zigbee network consists of a Coordinator (master) and N-Router (from node) With a Zigbee network, all nodes must have the same channel and PAN ID (network ID) Module factory default configuration: Module factory all of the node type Router (from node), PAN ID = 0x199B, channels = 22 (2460MHz) First use process: 1. Choose one module and change it to Coordinator (using the configuration software), than restart it 2. Change the Coordinator's PAN ID to your set of values (such as 0x1234) (range: 0x0001 - 0xFF00), mainly to prevent conflicts with the default values (default is 0x199B), than power off it. 3. Change the Router's PAN ID to the same value (just look for the network with the same PAN ID) (or to 0xFFFF, automatically search for any network), than power off it. 4. Turn on the Coordinator first (a long bright light, a light flash) 5. Than open the other Router's power supply (two lights flash), about 3 seconds, can automatically join the network (two long bright light) Change the network: 1, if you want the Router to join a new network, change the Router's PAN ID to new (same as Coordinator or 0xFFFF), then restart it, it can join new network automatically. 2, Do not try to be a Coordinator to join an existing network, even if you can join the network is not strong, Coordinator may withdraw from power-down after reboot network; 3, when a network is running properly, do not try to re-set the Coordinator's PAN ID, even if the same PAN ID, because the Coordinator after the restart, scan to the same PAN ID of the network, its PAN ID will automatically +1 to avoid PAN ID conflict. In order to visualize the process of ZigBee network building, DRF1601/1602/DRF1605/DRF1605H set compatible with TI's Sensor Monitor software, through TI's Sensor Monitor software to monitor and test the module's network connection. (1), Take a Coordinator connect to PC through the serial port, open the Sensor Monitor Software and click the RUN icon to run, then you can see that the icon turns red Coordinator, said the Coordinator and the PC successful connection. (Note: TI Sensor Monitor software only supports serial baud rate of 38400) (2), Take a Router module and power on, click the TEST button, this time, Router module sends an test data to Coordinator, Coordinator will send the data via the serial port to the PC, and TI Sensor Monitor software will display this Router point, as shown: (DRF1605 / DRF1605H the TEST button is J2- Pin3 (SW1), short it with grand) (3) Similarly, take others Router module power on, they will automatically find and join the network, press the TEST button, after the network is structured as follows: (4), Coordinator can directly assign six Router's address, after it, other Routers can join network through the fist 6 points, each of Router can assign 6 address to other Routers and allow them to join network. (Address:50 F8) These Routers which assigned address by front Routers, not affect by the front Routers, don't care them is in power on or power off, all Router can calculate data path automatically. Zigbee Modules Data Transmission There are two method to send data: (1), transparent data transmission: Just need the first byte is not transmitted 0xFE, 0xFD or 0xFC, then automatically enter transparent data transmission mode; Coordinator from the serial data received will be sent automatically to all nodes; A node receives the data from the serial port will be automatically sent to the Coordinator; (2), point to point data transmission: Zigbee network between nodes within any, can be point to point transfer instructions, to transmit data; Format: 0xFD + destination address + data length + data 1, transparent data transmission: (Are the most important functions for DRF1600 series Zigbee module) (1), if the first byte is not 0xFE, 0xFD or 0xFC, then automatically enter transparent data transmission mode; (Extension: the packet header and not the same as instruction set, also as a transparent data transmission, but suggested that when the user using data transparent transmission function, the first byte of data packets set a non 0xFE, 0xFD, or 0xFC, such as 0xA7) (2), Coordinator of the data received from the serial port will be automatically sent to all nodes; a node receives the data from the serial port will be automatically sent to the Coordinator; (3), between any node and Coordinator, similar to the cable connected directly (in most cases, a Coordinator and a Router can instead of a RS232 cable directly; (4), to support variable-length packets (without setting), the maximum does not exceed 256 bytes / packet, the packet is generally recommended that each application within 32 bytes. Transparent data transmission performance: With the increase of the distance between modules, the transfer rate will be reduced Coordinator sends to Router is broadcast, transmit rate will be slower General application, recommended that each packet of 32 bytes each transfer interval 200-300ms 2, point to point data transmission: Send Format: Data transfer instructions (0xFD) + data length + destination address + data(up to 32 Bytes) Example: FD 0A 14 3E 01 02 03 04 05 06 07 08 09 10 FD:Data transfer instructions 0A:Data Length,10 Bytes 14 3E:Destination Address 01 02 03 04 05 06 07 08 09 10:Data Receive data format: Receive all the data that from the sender, and add two bytes at the last for source address Example: FD 0A 14 3E 01 02 03 04 05 06 07 08 09 10 50 F5 FD:Data transfer instructions 0A:Data Length,10 Bytes 14 3E:Destination Address for sender and the self address for receiver 01 02 03 04 05 06 07 08 09 10:Data 50 F5:Source address Point to point data transmission can be send between any points in the network: 1. Even Coordinator power off, the point to point data transmission also can send between Routers. 2. After Router joined the network, the address (Short Address) will not change; 3. Length of the byte data area must be equal to the length of the data, or data transmission errors (as a transparent transmission, sent to the Coordinator); 4. Up to 32 bytes of data area, or data transmission errors (as a transparent transmission, sent to the Coordinator); 5. Destination address = 0xFF 0xFF, was broadcast transmission, will be sent to all nodes within the network; 6. Destination address = 0x00 0x00, then sent to the Coordinator Point to point data transfer performance: Setting Instruction for DRF1600 Series Zigbee Module (Commands are seeing User Guide) User also can use Zigbee Module configure software to Setting Zigbee Module Order Information: There are 2 type of ZigBee point at network as Coordinator and Router. As normal, one Zigbee net work just need one Coordinator to create this network, Router can send and receive data, and also can as bridge as other point. ALL the modules are Routers as default setting. You can change the type by yourself. Package: DRF1605H x1 Antenna x1 Payment & Warranty We only accept payments via PayPal. Warranty & Return: 1.If you are unsatisfied, you can return the item in original conditions (New, Never Used),then we give you the refund or replacement. Please bear in mind that postage costs are non refundable and any exchanges will incur an additional postage charge which lies with buyer. 2.If the item arrives at your door with apparent damage,please do contact us and take photo on it, we will replace the damage item. 3.If you can determine that a product is defective before using it, we may be able to accept it back for exchange or refund. however, you must contact us firstly. 4.All the item accept return in 30days. We know that sometimes when order problems arise,it can be very frustrating,we are there with you every step of the way to make your experience more pleasant. Please feel free to contact us for solution,when you have any questions. Please don't open case directly or give Neutral or Negative feedback (including low rating feedback) directly, Otherwise you will be on the blacklist in the future. Shipping All items will be shipped within 1~2 business day after payment. Items shipped to United States are via USPS (Economic EMS Chinese Post). Items shipped to other countries, we offer two shipping methods for you to choose.One is ordinary AirMail without tracking number(Economy Int'l Shipping),And the other is Registered AirMail with tracking number (Standard Int'l Shipping).We highly suggest you choose registered mail ,because it can be tracked. Parcel will marked as 'GIFT' Ship to address provided by ebay if no special notes from buyer . Delivery Time: Normally, It Takes About 10-20 Business Days to Arrival for most Countries. *5-14 days to USA. *10-25 days to Australia / Canada. *14-30 days to major cities in Europe . *4 - 8 weeks to Italy , Brazil ,Russia. However, it may delay due to industrial strike action, severe weather, custom reasons or peak seasons, such as Christmas/New Year Holidays. eBay Cross Border Trade powered by Channel Effect
