Dt6605 Digital Insulation Megger Megohmmeter Insulation Resistance Tester

US $335.88

KOWLOON BAY, Hong Kong
Jan 29th

Open on mobile:
QR code

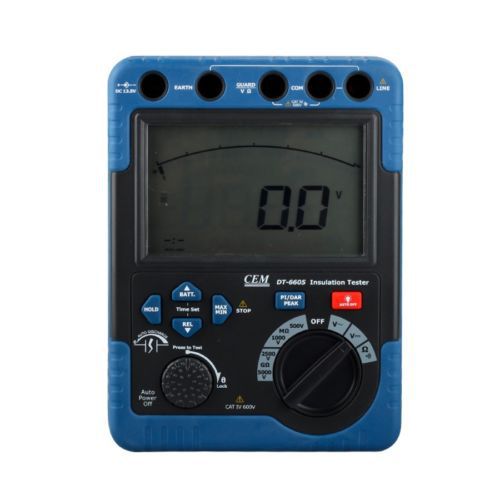

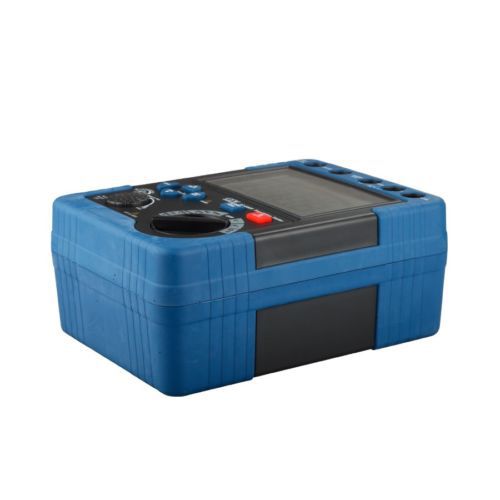

DT6605 Digital Insulation Megger MegOhmMeter Insulation Resistance Tester Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge Click to Enlarge DT6605 Digital Insulation Megger MegOhmMeter CAT IV 5000V 60 Giga Ohm New Tester Please Note: a) Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. b) Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying. Feature: 1. Wide range measurements from 500V to 5000V and up to 60Gω. 2. Large 6000 counts digital display with bargraph and backlight. 3. Polarization index measurement (PI). 4. Auto ranging & Timer measurement function. 5. Indication of output voltage and discharge voltage. 6. Auto-discharge function and voltage output warning function. 7. Auto power off and battery check. 8. MAX/MIN, PEAK, Relative value & Data hold functions for DC/AC voltage measurements. 9. Safety standard IEC61010-1 CAT IV 600V. Specification: Function Insulation resistance Voltage Resistance Range 500V 1000V 2500V 5000V AC/DCV Measuring range (Auto ranging) 0~6.000Mω 0~6.000Mω 0~6.000Mω 6~60.00Mω 0~600.0V (50~1kHz) 0~600.0ω 600~6000ω 6~60.00Mω 6~60.00Mω 6~60.00Mω 60~600.0Mω 60~600.0Mω 60~600.0Mω 0.6~6.000Gω 0.6~6.000Gω 600~6000Mω 600~6000Mω 6~60.00Gω 6~60.00Gω Accuracy ±5%rdg ±3dgt ; ±20% (>6Gω or more) ±1.5%rdg ±5dgt ±1.5%rdg ±10dgt Short Circuit Current 1.3mA approx - Rated test Current (at load Resistance) 1mA-1.2mA 0.5Mω 1mA-1.2mA 1Mω 1mA-1.2mA 2.5Mω 1mA-1.2mA 5Mω Open circuit voltage 500VDC/+20%-0% 1000VDC/+20%-0% 2500VDC/+20%-0% 5000VDC/+20%-0% - Continuity check Buzzer sounds at 50ω Display 6000 Counts Current consumption About 1000mA (During measurement) 25mA approx. Withstand Voltage 5320V AC for 5 seconds Safety standard IEC 61010-1 CAT IV 600V Pollution Degree 2 Power supply DC12V : R14 x 8 Dimensions 198 ( L) x 148 (W) x 86 ( D) mm Weight 1438g approx. Package: DT6605 Insulation Tester Test leads Instruction Manual 120V/250V AC adaptor Contact Me Thanks for your cooperation and contacting. If any problems either with the item or shipment, please feel free to contact us through “My Messages” or“Ask Seller Questions”. Our reply will be within 24 hours.If we can not reply you,maybe we are not in office,or we don't receive your letter,so pls send it again! Customer Service Available: Please wait for our response before you take action to open eBay case or PayPal dispute.Your satisfactory is our top concern. We sincere apologize for the inconvenience caused by time difference. Feedback Dear friend, thank you for your orders, please leave us a feedback on the eaby if you think the item is good after you received.And if there is any things (shipping package, quality) you think is not good enough just feel free to contact us, we will try our best to slove your problem. Any good suggestions will be welcome we are glad to improve our serves with your help. And you also can email us to share your experience to use those product. The item will be shipped out within 1 working days after payment was received. And it will be sent out by express. Normally the estimated delivery time is 3-7 working days by DHL and 7-12 working days by EMS. If you want any other Express shipping way, pls leave a message to us! If you don't receive the item after 15days, please feel free to contact us, we will do our best to solve the problem for you. 1. We prefer to accept paypal as our payment method. It is quick and safe. 2. Please make payment within 3 days after biding, or all non-pay bidders will result in a non-paymemt buyer alert from Ebay and unpaid transaction would be closed. 3. We will send item to your Confirmed Shipping Address in Paypal. If you want to post to other address, please inform us ASAP when making payment through Paypal. We will NOT be responsible for any delivery failure due to unclear, unconfirmed or incomplete addresses given. inkfrog terapeak i000000
