== Dual Axis == Digital Protractor Gauge Surface Inclination Angle Meter Cube

US $69.99

United States
Jan 30th

Open on mobile:
QR code

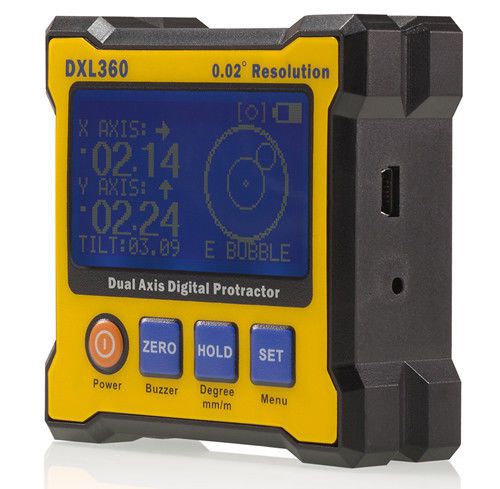

DXL360 V2 Digital Protractor Inclinometer Dual Axis Level Box 0.02° Resolution "Can Buy It Now in my ebay store" Model: DXL360 Brand: MIB www.mib-tech.com Features: 1) DXL360S/C: High accuracy ±0.05°, high resolution 0.01° DXL360: ±0.1°, resolution 0.02°, detail check specification 2) Dual and Single axis with user friendly LCD display angle 3) Rechargeable 4) V Shape metal case for easy to fit at the corner or pipe. 5) 5 Side Magnetic base 6) Audible alarming at settable angle range 7) Any angle measurement *DXL360s/c only 8) USB / Bluetooth to pc connection need adapter for DXL360 and DXL360s/c. Specifications Accuracy: DXL360S/C: 0 to 20°: ± (0.05°) 20 to 70°: ± (0.1°) 70 to 90°: ± (0.05°) DXL360: 0 to 20°: ± (0.1°) 20 to 70°: ± (0.2°) 70 to 90°: ± (0.1°) *After Calibrated Measuring range: Single axis: 360°, Dual axis: ±40° Resolution: DXL360S/C: 0.01° DXL360: 0.02° Any Angle Measurement 0.5° Accuracy *DXL360s/c: Gyro Rotation Speed *DXL360s/c: <50°/s Response time: <0.4 second Audio sound: 60dB @ 30cm Zero offset drift angle per °C: 0.0058° (typical) Operating temperature: 0 to 50°C Storage temperature: -10 to 60°C User Interface: Mono-color LCD with backlight Supply Power: Rechargeable Li-Polymer 3.7V Charger port: 5V 500mA Mini type-B USB port Power Consumption: Standby: 10uA, Operation: 20mA. Standby Battery Life: 4000 hours Operating Battery Life: 40 hours Dimensions (in mm): 70(L) x 70(W) x 23(H) Magnetic Base: affix at 4 corner Magnetic Force: N48 Weight: 120gram Application -Interior decoration -Construction area -Plumbing -Floors & Stairs -Woodwork Including: 1 pcs DXL360 Protractor 1 pcs Charger (US or EU type, we will ship according to your country type) 1 pcs USB cable (Charging only Not for PC communication) *** If you need PC communication a adapter is optional to purchase SVRS232 PC Adapter (TLL-90, DXL360 series inclinometer) Features: Connect TLL-90, DXL360 series inclinometer to computer by USB. Using SV-PC interface software can data logging and save as excel file. Specification: 1) PC connection: USB 2) Protocol: Virtual Com port 3) Buad rate: 9600 4) Size: 38X28X10mm 5) Weight: 10g Bluetooth PC Adapter (TLL-90, DXL360 series inclinometer) Connect TLL-90, DXL360 series inclinometer to computer by bluetooth. Wireless communication can easy for connection. Using SV-PC interface software can data logging and save as excel file. Specification: 1) PC connection: Bluetooth Wireless 2) Distance: 10m @ open area 3) Protocol: Serial Communication 4) Buad rate: 9600 5) Battery life: 1.5hrs *Can operate during charging 6) Size: 38X28X10mm 7) Weight: 15g On Aug-12-14 at 02:38:37 PDT, seller added the following information:
