Duplo System 5000 Booklet Making System

US $23,000.00

Englewood, Colorado, United States
Jun 13th

Open on mobile:
QR code

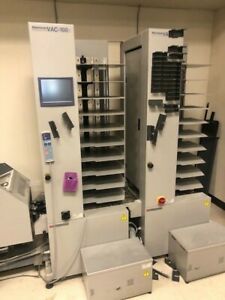

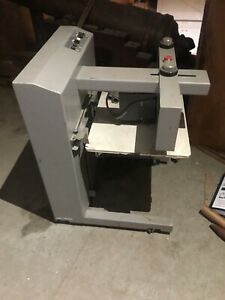

DC-10/60 Collator 10 bins Ability to add an additional 5 towers Paper Size: 4.72" x 5.52" to 14" x 20" Paper Weight: 11 lb to 12-pt cover Bin Capacity: 2.5" Detections: double-feed, misfeed, paper jam, paper transport jam, bin empty Features: 5 digit display, twin conveyor vertical transport, auto calibration, left or right exit selection, automatic bin selection, 4-step overlap controls, multi-step speed adjustment, block mode, interleaving sheet insertion, reject tray Speed: up to 10,000 sets/hour (*DBM-500 maxes at 5,000 sets/hour) Feed System: vacuum belt with air separation Power: 120V, 60Hz, 9.5A Comes with Duplo LUL-HM Lift Unit Dimensions: 25" x 30" x 78" (49" long with lift unit) Weight: 705 lbs ( + 80 with lift unit) DBM-500 Bookletmaker Signature Bookletmaking: 4.72" x 6.7" to 14" x 20" ; up to 25 sheets Corner / Side / Top Stitch: 4.72" x 5.52" to 13.82" x 14.41" ; up to 30 sheets Speed: up to 5,000 sets per hour Comes with 2 stitcher heads (can use 1 to 4 heads) Saddle, corner, side, or no stitch (fold only) Programmable memory: 12 jobs Detections: wire draw detection Automatic Functions: stitcher heads, back jogger, side guides, stitch stopper, fold stopper, fold-back stopper positions, small booklet adjustments, fold roller gap, conveyance roller position, center reference, disengage the operator side stitching, head when corner stitching Features: LCD touch panel and ten-key pad; DBM-500T settings adjustable from DBM-500 control panel; accepts set-by-set and sheet-by-sheet; jam clearance accessibility; side and corner stitch catch tray; knife folder with four adjustable fold rollers and insert attachment for inserting loose sheets into booklets; adjustable control panel, external fold skew adjustment Power: 120V, 60Hz, 6.5 A Dimensions: 63.38" x 27.55" x 39.56" Weight: 847 lbs DBM-500T Trimmer Mechanism: upper & lower shearing action Booklet Size: 4.72" x 3.35" to 14" x 10" Trimmed Booklet Size: 4.72" x 3" to 14" x 10" Trim Margin: Up to 1" Features: Jam detectors; adjustable belt in-feed timing; inter-locking safety covers; automatic setting exit rollers; auto knife up/down; bypass for documents that do not need a face trim; trim/no trim; resettable output counter; compressed air to trimmings tray; trim scrap-box-full sensor; drop-away flap for trimmings; full-width head stop; spine compression; automatically adjustable in-feed roller gap Speed: Up to 5,000 sets per hour Power: 120V, 60Hz, 10A Dimensions: 23" x 27.5" x 43" Weight: 531 lbs Comes with Duplo DBM-LS1 Exit Conveyor https://youtu.be/pi5x5wmYzNc Please contact us for Freight Quote

“We are a servicing Duplo dealer, our technicians have gone through all the machines and verified proper operation”

Model

System 5000

Brand

Duplo

MPN

Does Not Apply

UPC

Does not apply
