Dwyer Series A3000 Photohelic® Pressure Switch/gage For Measuring & Controlling

US $139.00

Chatsworth, California, United States
Jan 29th

Open on mobile:
QR code

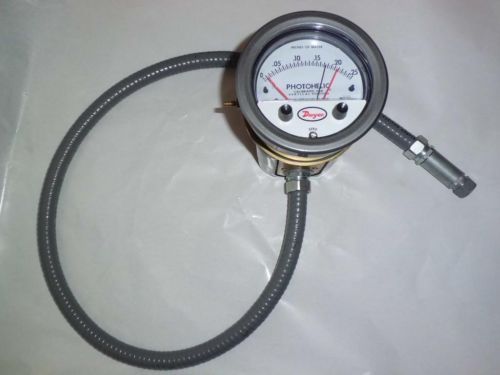

Dwyer Series A3000 Pressure Switch/Gage: Measures and controls positive, negative or differential pressures of air and compatible gases. GAGE SPECIFICATIONS Service: Air and non-combustible, compatible gases. Wetted Materials: Consult Factory. Accuracy: ±2% of FS at 70°F (21.1°C). ±3% on -0 and ±4% on -00 models. Pressure Limits: -20" Hg. to 25 psig (-0.677 to 1.72 bar). MP option; 35 psig (2.41 bar), HP option; 80 psig (5.52 bar). 36003S – 36010S; 150 psig (10.34 bar). 36020S and higher; 1.2 x full scale pressure. Temperature Limits: 20 to 120°F. (-6.67 to 48.9°C) Low temperature option available. Process Connections: 1/8" female NPT. Size: 4" (101.6 mm) dial face, 5" (127 mm) O.D. x 8-1/4" (209.55 mm). Weight: 4 lb (1.81 kg). SWITCH SPECIFICATIONS Switch Type: Each setpoint has 2 Form C relays (DPDT). Repeatability: ±1% of FS. Electrical Rating: 10A @ 28 VDC, 10A @ 120, 240 VAC; Electrical Connections: Screw terminals. Use 167°F (75°C) copper conductors only. Power Requirements: 120 VAC, 50/60 Hz; 240 VAC & 24 VAC power optional. Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations. Set Point Adjustment: Adjustable knobs on face. Agency Approvals: CE, CSA, UL. NOTE: Optional (-EXPL) Explosion-proof Enclosure does not possess any agency approvals. Note; We believe that this unit is unused, but there are some minor scratches from storage and no box included. Price NEW sells for $283.00 You are bidding on what is shown in photos. ubidonline Item Number: 1213-06 You are bidding on (1) Dwyer Series A3000 Pressure Switch/gage. We make every effort to communicate all of the details to make an informed decision, however, verification and perceived value may vary. If a condition or features are provided, they are ONLY done so as a COURTESY. You as a buyer are expected to know what you are purchasing and understand that all items are sold “as is, where is, with all faults”. The more informed you are, the better your purchase decision. Since your needs are unique to you, your evaluations will be different from others. This item was purchased for resale and was NOT used by seller. This item can be previewed and inspected by appointment only at our location in Chatsworth, CA. If you have any questions, please call us at (818) 734-9043. Please ask ALL questions prior to bidding! Since I am not a dealer, this units is sold "As-Is" with "No Warranties" and "All Sales are Final". You may pay by personal / company check, cashier's check, or Pay Pal. Note: Merchandise will be held until funds clear. Buyer is responsible for ALL shipping & handling fees. Shipping Information: Pick-up location: Chatsworth, CA 91311 CUSTOMER PICK-UP PREFERRED Insurance Required: Varies on the selling price. Buyer releases Anthony Bertolino and/or Bertolino's, Bertolino Sales from any liabilities from this unit. All liabilities will be the responsibility of the buyer. Merchandise must be paid for within 3 days. Happy Bidding!!! Questions: abertolino at earthlink dot net GOD BLESS AMERICA!!!!!!!!!!!!

Condition	New other (see details) : A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“Very Nice Condition”
