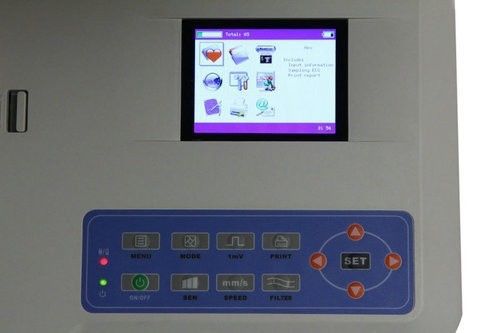

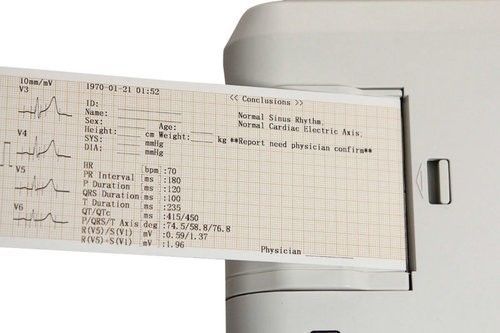

ECG300G three channel ECG,electrocardiograph ECG machine,Color LCD,Printer,SW Introductions ECG300G three channel ECG is such a kind of electrocardiograph,which samples 12 leads ECG signals simultaneously and prints out the ECG waveforms with thermal printing system. Its functions are as follows: Recording and displaying ECG waveforms in auto/manual mode; Auto-measuring and auto-diagnosing the ECG wave parameters; Prompting the state of lead off and paper lack; Switching several kinds of interface languages ; Managing the case database. Features 3.5" TFT Color LCD display shows the working status and ECG waveform. Check the waveform before printing to save record paper. 12 leads ECG simultaneous acquisition, digital signal processor, to get higher quality ECG waveforms through the AC filter, baseline filter and EMG filter of the ECG signals. Simultaneous display of 3/6/12 leads ECG waveform, and the state of printing mode, sensitivity, speed, filter etc., to be easy for interpretation. Include multiform printing modes and format, such as auto 3*4 +1, auto 3*4, auto 2*6 +1, auto 2*6, auto 4*3, rhythm 4, rhythm 3, rhythm 2 and manual etc; the length of wave printing can be adjusted and the function of periodic printing is included to satisfy different applications. The instrument has the function of regular auto-analysis and auto-interpretation of ECG waveform parameter, provides measurement parameters such as HR, P-R interval, P Duration, QRS Duration, T Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1) etc and auto-interpretation conclusion to help reducing doctor's abundance and improve working efficiency. The power supply includes both AC/DC. This device includes built-in lithium polymer rechargeable battery. It can standby for 10 hours, print 260 pieces of ECG waveform and print 180 minutes continually under the best DC state to satisfy the need of visiting patients and physical examination. It has build-in storage with large capacity, and can memory more than 1000 cases, which is easy for the doctor review and statistic. Support Chinese, English, Spanish, Turkish, Polish, Italian, French, German, Portuguese, Kazakhstan, Russian operating interface, can print out such language reports of the above. Technical Specification Safety Type: Class I, Type CF applied part,which has defibrillation-proof applied part Lead : Standard 12 leads Input way: Floating and defibrillation protection Patient leak current : <10µA Sampling rate : 1000Hz A/D conversion: 12bit Frequency response: 0.05Hz~150Hz (-3dB~+ 0.4dB) Time constant:>=3.2s CMRR: >60dB, >100dB( With AC filter) Enduring polarization voltage: ±500mV Noise level: =20dB) Recording way : Thermal printing system(8spots/mm) Recording paper: 80mm(W)x20m(L) Sensitivity: 2.5mm/mV 5mm/mV 10mm/mV 20mm/mV 40mm/mV Paper speed: Auto-mode: 25mm/s, 50mm/s Manual-mode: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s Power supply: AC:100/240V,50/60Hz DC:7.4V, 3700 mAh rechargeable lithium battery Fuse Specification: 2 pcs ?5x20mm AC time lag; T1.6AL250V Size: 315mm(L) x 215mm(W) x 77mm(H) Net Weight: 1.6Kg Accessories: ECG leads 1 set Limb electrode clamp 1 set Chest electrode 1 set Power connection 1 piece Ground wire 1 set User manual 1 set Option: ECG-Sync software, connect with the PC by USB connector to form a ECG workstation, collect real-time data to the software to analyze and print the report, and can update the old cases in the ECG machine to PC. It has optional functions of FCG, HFECG, QTd, HRV analysis etc. We will ship the item within 48 hours after receiving your payment, please kindly leave your detail shipping address and telephone number, both are very important for the shipment, thank you! Shipping Company Shipping Time Air Mail with Tracking number 15-35 Business days EMS/ TNT/UPS/DHL 3-9 Business days We hope it arrive on time but since this is an international delivery, shipping time will be highly depended on the courier company and local customs/duties. Thank you for your understanding! If you haven't received the item after 5 weeks of your payment, please contact us immediately! Service Time: Monday to Sunday-9 am to 10pm. Shipping Time : Monday to Friday We accept Paypal, Credit card, Bank transfer All payments are expected within 7 days after the last winning auction is closed. Warranty Period : 12 months, Buy With Confidence Client is responsible for the custom clearance and custom duty if any, we will not be responsible for the customs clearance and duty, if you have special requirements for the declaration for your customs office, please contact us before your payment. Customer is responsible for the returning shipping fee and we will send the replacement after receiving the returned item. Shipping and handling fee cannot be refunded in any case. Your positive feedback will be appreciated very much, and in any case, please do contact us before leaving negative feedback or ship the item back, we promise we will give you a satisfied answer. The Fingertip Pulse Oximeter is registered on the Australian Register of Therapeutic Goods (ARTG) with the code 197923, and certified by FDA of United States and CE,TUV of Europe. The Fingertip Pulse Oximeter that is FDA 510K Approved CONTEC Medical Systems focusing on research, manufacture and distribution of medical equipments, was founded in 1992 as a professional medical equipments producer. Our Products include followings : Customer satisfaction is very important to us and our feedback rating reflects this satisfaction. If you have any questions, we welcome you to email or call us. We strive to answer all questions and resolve any problems as quickly as possible. You may expect to receive a response to your inquiry within 24 hours. Skype:contec.tessy Address: No.24 Huanghe West Road, Qinhuangdao Economic and Technical Development Zone, Hebei Province, China On May-19-14 at 21:00:38 PDT, seller added the following information:
