Ecliptek 3.686 Mhz Crystal 30ppm Load Cap 18pf Quantity 1000

US $95.00

  • Oceanside, California, United States
  • Jun 9th
Open on mobile:
QR code

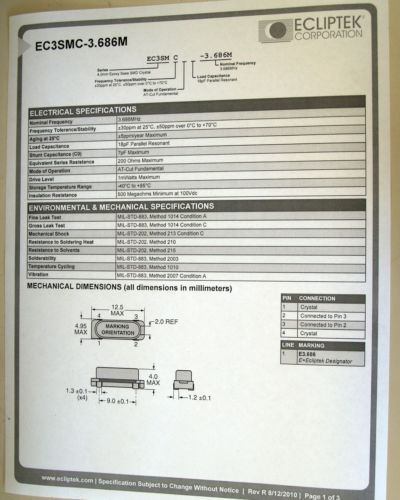

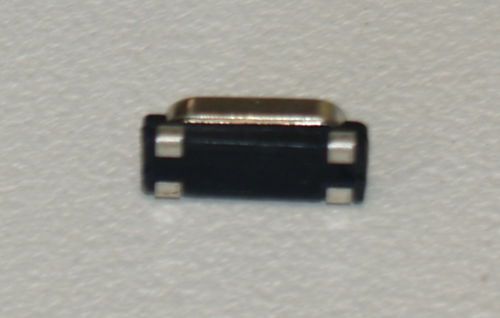

You are looking at a roll of crystals, a few under a thousand pieces.  Specs below. Thanks for looking. EC3SMC-3.686M EC3SM C -3.686M Series 4.0mm Epoxy Base SMD Crystal Frequency Tolerance/Stability ±30ppm at 25°C, ±50ppm over 0°C to +70°C Mode of Operation AT-Cut Fundamental Nominal Frequency 3.686MHz Load Capacitance 18pF Parallel Resonant ELECTRICAL SPECIFICATIONS Nominal Frequency 3.686MHz Frequency Tolerance/Stability ±30ppm at 25°C, ±50ppm over 0°C to +70°C Aging at 25°C ±5ppm/year Maximum Load Capacitance 18pF Parallel Resonant Shunt Capacitance (C0) 7pF Maximum Equivalent Series Resistance 200 Ohms Maximum Mode of Operation AT-Cut Fundamental Drive Level 1mWatts Maximum Storage Temperature Range -40°C to +85°C Insulation Resistance 500 Megaohms Minimum at 100Vdc ENVIRONMENTAL & MECHANICAL SPECIFICATIONS Fine Leak Test MIL-STD-883, Method 1014 Condition A Gross Leak Test MIL-STD-883, Method 1014 Condition C Mechanical Shock MIL-STD-202, Method 213 Condition C Resistance to Soldering Heat MIL-STD-202, Method 210 Resistance to Solvents MIL-STD-202, Method 215 Solderability MIL-STD-883, Method 2003 Temperature Cycling MIL-STD-883, Method 1010 Vibration MIL-STD-883, Method 2007 Condition A MECHANICAL DIMENSIONS (all dimensions in millimeters)
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand ecliptek
MPN EC2SM-3.686M
Model EC2SM
