Ecma-l11875r3+asd-a2-7543-m 400v 7.5kw47.74nm 180mmkeyway Servo Kit Dhl Freeship

US $4,280.00

shenzhen,Guangdong, China
Jan 29th

Open on mobile:
QR code

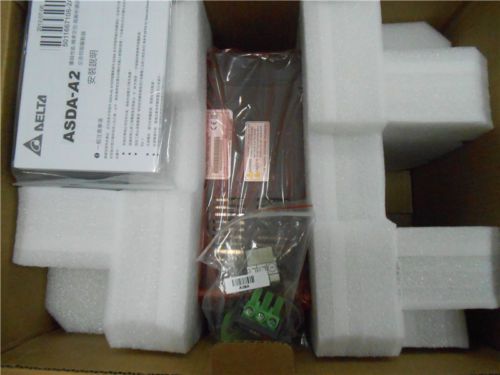

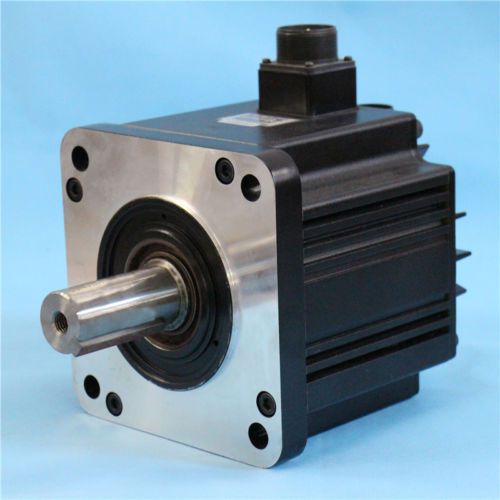

ECMA-L11875R3+ASD-A2-7543-M Delta 400V 7.5KW 47.74NM 1500r/min 180mm Keyway AC Servo Motor Drive kitsMotor + Drive: ECMA-L11875R3+ASD-A2-7543-M Package Content: 1* 7.5KW AC servo Motor 1* 7.5KW AC Servo Drive Motor and Drive available, if need encoder and power cable, contact us directly . 1 Motor Specifications Model ECMA-L11875R3 Product Name Electronic Commutation Motor Servo Type AC Servo Name of the Series A2 Rated Voltage 400V Encoder Type incremental type, 20-bit Motor Frame Size 180mm Type of Shaft Diameter and Oil Seal Keyway(with fixed screw holes), w/o Brake with Oil Seal Standard Shaft Diameter 3=42mm Rated Power Output 7500 W Rated torque (N-m)*1 47.74 Max. torque (N-m) 119.36 Rated Speed 1500 rpm Max. speed 3000 rpm Rated current (A) 27.3 A Max. instantaneous current (A) 68.3 A Power rating (kW/s) 159.7 Rotor inertia (x 10-4kg.m2) 142.7 Mechanical constant (ms) 0.77 Torque constant-KT (N-m/A) 1.75 Voltage constant-KE (mV/(r/min)) 66.4 Armature resistance (Ohm) 0.06 Armature inductance (mH) 1.7 Electric constant (ms) 28.29 Insulation class - Insulation resistance > 100 M ohm, DC 500 V Insulation strength 2.3k Vac, 1 sec Weight (kg) (without brake) 40.5 Kg Radial max. loading (N) 1764 Axial max. loading (N) 588 Power rating (kW/s) (with brake) 156.6 Rotor inertia (x 10-4kg.m2) (with brake) 145.5 Mechanical constant (ms) (with brake) 0.79 Vibration grade (?m) 15 Operating temperature 0~40 degree centigrade Storage temperature -10~80 degree centigrade Operating humidity 20% to 90% RH (non-condensing) Storage humidity 20% to 90% RH (non-condensing) Vibration capacity 2.5G IP Rating IP65 Approvals CE UL 2 Drive Specifications Model ASD-A2-7543-M Product Name AC SERVO Drive Series A2 Model Type Full-Closed CANopen E-CAM Power Input Voltage 24 VDC, ±10% Input Current 1.66 A Input Power 39.85 W Main Circuit Power Three-phase, 380 ~ 480 VAC, ± 10% Continuous Output Current 30 Arms Cooling method Fan Cooling Encoder Resolution (Servo Drive Resolution) Incremental type: 20-bit (1280000 p/rev) ; Absolute type: 17-bit (1280000 p/rev) Main Circuit Control SVPWM (Space Vector Pulse Width Modulation) Control Control Mode Auto / Manual Dynamic Brake External Position Control Mode Max. Input Pulse Frequency Max. 500Kpps / 4Mpps (Line driver), Max. 200Kpps (Open collector) Pulse Type Pulse + Direction, A phase + B phase, CCW pulse + CW pulse Command Source External pulse train / Internal parameters Smoothing Strategy Low-pass and P-curve filter E-gear ratio E-gear ratio N/M multiple N: 1~32767, M: 1:32767 (1/50 < N/M < 25600) Torque Limit Parameter settings Feed Forward Compensation Parameters settings Speed Control Mode Analog Command Input Voltage Range 0 ~ ±10 VDC Input Resistance 10 K? Time Constant 2.2 us Speed Control Range*1 1 : 3000 Command Source External analog command / Register Smoothing Strategy Low-pass and S-curve filter Torque Limit Via parameter setting or analog input Bandwidth Maximum 1 kHz Speed Accuracy*2 0.01% or less at 0 to 100% load fluctuation 0.01% or less at ±10% power fluctuation 0.01% or less at 0 to 50 degree centigrade ambient temperature fluctuation Torque Control Mode Analog Command Input Voltage Range 0 ~ ±10 VDC Input Resistance 10 K? Time Constant 2.2 us Command Source External analog command / Register Smoothing Strategy Low-pass filter Speed Limit Operation Via parameter setting or analog input Analog Monitor Output Monitor signal can set by parameters (Output voltage range: ±8 V) Communication Interface RS-232 / RS-485 / USB

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Delta
MPN	ECMA-L11875R3+ASD-A2-7543-M
Model	ECMA-L11875R3+ASD-A2-7543-M
Country of Manufacture	China
