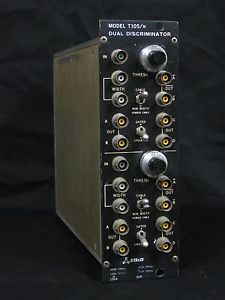

Eg&g T105/n Dual Discriminator Module

US $200

  • Kent, Ohio, United States
  • Nov 20th
Open on mobile:
QR code
The EG&G/ORTEC T105/N Dual Discriminator is an extremely stable, direct-coupled, general-purpose leading edge discriminator capable of processing input signals of frequencies upto 150 MHz.  Each T105/N module contains two independent and identical discriminator circuits. A major feature of this unit is that only one ouptut pulse is produced for each threshold crossing, irrespective of input pulse width.  This feature is provided without compromising the inherent advantages of the cable delay technique:  extremely stable output pulse widths virtually unaffected by temperature and input signal frquencies, and a duty cycle that does not exceed 50%. A gate switch allows each discriminator to be gated by the commom bin gating line  The two dual outputs, with one dual complementary output, in each section provide for a high fanout. Notes:     Not mentioned in the manual is the requirement that at least one output of     each pair (A or B),( /A or /B), and (C or D)  MUST be connected to a 50 ohm     terminator or a 50 ohm cable terminated into 50 ohms for proper operation..     This module was manufactured by EG&G, NOT EG&G/Ortec, and differs     in that there is NO rear panel Gate Input BNC.     This module also does NOT have the panel screw fasteners.

Directions

Similar products from Time Providers & Other Time Testing Equipment

AGILENT SPECTRUM ANALYZER Power Supply EC series 08563-60180 08564-60032

AGILENT SPECTRUM ANALYZER Power Supply EC series 08563-60180 08564-60032

  • Laguna Hills, California, United States
  • Nov 21st
EG&G 124A Lock-In Amplifier with 116 Differential Preamplifier

EG&G 124A Lock-In Amplifier with 116 Differential Preamplifier

  • Saint Louis, Missouri, United States
  • Nov 21st

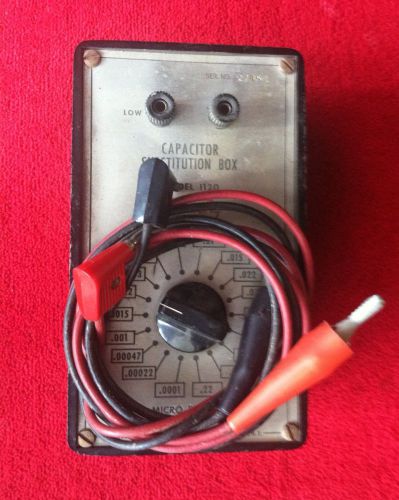

Vintage Eico 1120 Capacitor Substitution Box w/ Alligator Clips

Vintage Eico 1120 Capacitor Substitution Box w/ Alligator Clips

  • Phelan, California, United States
  • Nov 21st

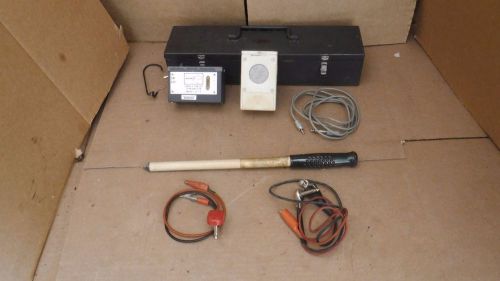

Murphy Jumper Tracer Transmitter Model - JTT - 2 / JTR - 4 - L1 ~

Murphy Jumper Tracer Transmitter Model - JTT - 2 / JTR - 4 - L1 ~

  • SOUTHERN CALIF., United States
  • Nov 21st
Sencore TF151A Regular Transistor Field Effect Transistor Tester

Sencore TF151A Regular Transistor Field Effect Transistor Tester

  • Advance, Missouri, United States
  • Nov 20th

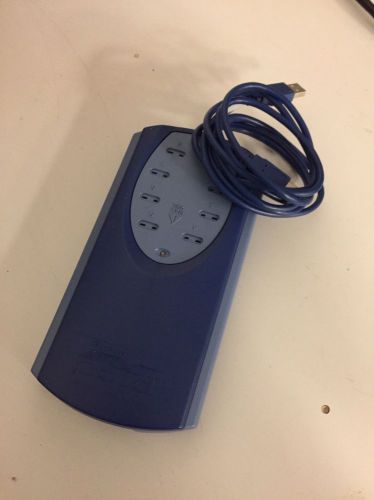

Pico TechnologyUSB TC-08 Thermocouple Data Logger And Cable

Pico TechnologyUSB TC-08 Thermocouple Data Logger And Cable

  • San Jose, California, United States
  • Nov 20th
Teltone TLS 5A-02

Teltone TLS 5A-02

  • Plano, Texas, United States
  • Nov 20th
MICROLAB CM-81N HYBRID MATRIX 3x3 COMBINER / SPLITTER / 698-2700MHz

MICROLAB CM-81N HYBRID MATRIX 3x3 COMBINER / SPLITTER / 698-2700MHz

  • Sunnyvale, California, United States
  • Nov 20th
Bugtrap Instrumentation 2074A Logic Comparator IC Tester

Bugtrap Instrumentation 2074A Logic Comparator IC Tester

  • Lebanon, Ohio, United States
  • Nov 20th
Tekbox TBTC1 50mm Septum TEM Cell for EMC Pre-Compliance Testing

Tekbox TBTC1 50mm Septum TEM Cell for EMC Pre-Compliance Testing

  • Pine Island, Minnesota, United States
  • Nov 20th
EG&G LG102/N Linear Gate and Stretcher

EG&G LG102/N Linear Gate and Stretcher

  • Kent, Ohio, United States
  • Nov 20th
LOT Sunrise Telecom Bundle Sunset T10 w/Case, Manual, Cables + Additional Unit

LOT Sunrise Telecom Bundle Sunset T10 w/Case, Manual, Cables + Additional Unit

  • Norway, Maine, United States
  • Nov 20th
Flann Waveguide Switch Model 1933-3E

Flann Waveguide Switch Model 1933-3E

  • Uppsala, default, Sweden
  • Nov 19th
Agilent HP Tracking Generator Attenuator 8db step for 859X series 0955-0679

Agilent HP Tracking Generator Attenuator 8db step for 859X series 0955-0679

  • Uppsala, default, Sweden
  • Nov 19th

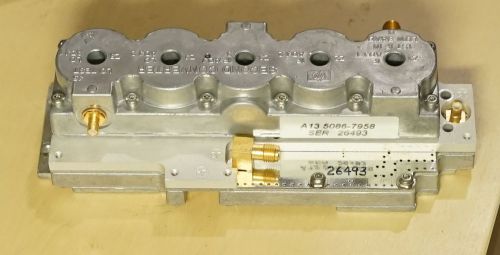

Agilent HP 8595E A13 5086-7958 2:nd converter

Agilent HP 8595E A13 5086-7958 2:nd converter

  • Uppsala, default, Sweden
  • Nov 19th

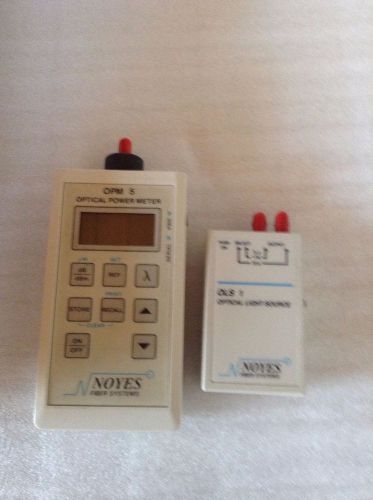

Noyes MLP5-2 Multi-Mode - OPM5 & OLS1 (Optical Power Meter and Light Source)

Noyes MLP5-2 Multi-Mode - OPM5 & OLS1 (Optical Power Meter and Light Source)

  • Omaha, Nebraska, United States
  • Nov 19th
Standing Wave Reflectometer CM-52-2

Standing Wave Reflectometer CM-52-2

  • Nashville, Tennessee, United States
  • Nov 19th

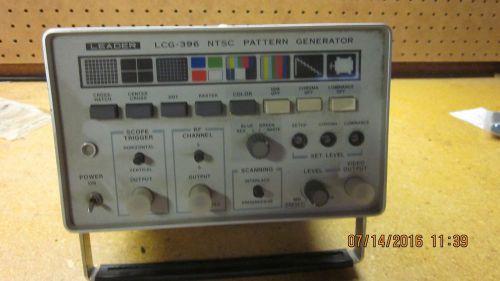

LEADER LCG 396 NTSC PATTERN GENERATOR 4-CHANNEL 180-264V 0.2A WITH MANUAL

LEADER LCG 396 NTSC PATTERN GENERATOR 4-CHANNEL 180-264V 0.2A WITH MANUAL

  • Garden Grove, California, United States
  • Nov 19th

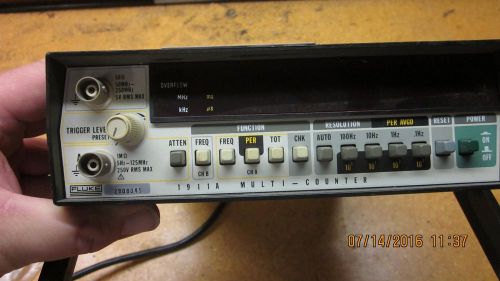

FLUKE 1911A MULTI COUNTER WITH POWER CORD USED

FLUKE 1911A MULTI COUNTER WITH POWER CORD USED

  • Garden Grove, California, United States
  • Nov 19th

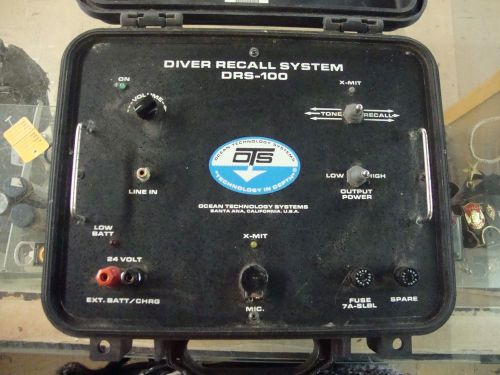

OTS Diver Recall System DRS-100
