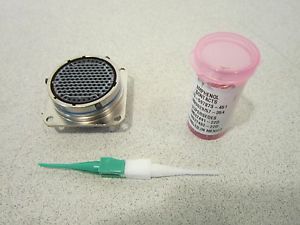

Electrical Receptacle Connector MS27497T24F35SD NSN 5935011914033 Appears Unused, US $160 – Picture 0

Electrical Receptacle Connector MS27497T24F35SD NSN 5935011914033 Appears Unused, US $160 – Picture 1

Electrical Receptacle Connector Ms27497t24f35sd Nsn 5935011914033 Appears Unused

US $160

Hurricane, Utah, United States
Oct 31st

Open on mobile:
QR code

Electrical Receptacle Connector MS27497T24F35SD NSN 5935011914033 Appears Unused Government Specs Below: MRC: Requirement Name: Requirement: NAME ITEM NAME CONNECTOR,RECEPTACLE,ELECTRICAL AAJD THREAD CLASS 2A AAJF THREAD DIRECTION RIGHT-HAND AAQL BODY STYLE 3G STRAIGHT SHAPE, EXTERNAL COUPLING ABHP OVERALL LENGTH 0.921 INCHES MAXIMUM ABKW OVERALL HEIGHT 1.703 INCHES MAXIMUM ABMK OVERALL WIDTH 1.703 INCHES MAXIMUM ADZC ENVIRONMENTAL PROTECTION MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AEBV UNTHREADED MOUNTING HOLE DIAMETER 0.147 INCHES NOMINAL AEBW CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT 1.374 INCHES NOMINAL AEHA DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH 1.374 INCHES NOMINAL AFQK DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE 0.447 INCHES NOMINAL AFQR THREADED DEVICE TYPE BACK SHELL AFQW MATING END QUANTITY 1 AFQX CONTACT POSITION ARRANGEMENT STYLE FAAD 24-35 SINGLE MATING END AFQZ CONTACT REMOVABILITY REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING AFRN POLARIZATION METHOD KEYWAY OR MULTIPLE KEYWAY AFRP INSERT POSITION IN DEG 16.0 AFRT SHELL TYPE SOLID AFRV CONNECTOR LOCKING METHOD BAYONET PIN CMLP THREAD QUANTITY PER INCH 18 CQJX NOMINAL THREAD SIZE 1.438 INCHES CQTM TERMINAL LOCATION BACK SINGLE MATING END SINGLE CONTACT GROUPING CQTZ CONTACT MATERIAL COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING CQYH CONTACT SURFACE TREATMENT GOLD SINGLE MATING END SINGLE CONTACT GROUPING CSCF TERMINAL TYPE CRIMP SINGLE MATING END SINGLE CONTACT GROUPING CSPT SHELL MATERIAL ALUMINUM ALLOY CSWM SHELL SURFACE TREATMENT NICKEL CTBC SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION MIL-C-26074 MIL SPEC SINGLE TREATMENT RESPONSE CXCG INCLUDED CONTACT QUANTITY 128 SINGLE MATING END SINGLE CONTACT GROUPING CXCL INCLUDED CONTACT TYPE ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING PMLC PRECIOUS MATERIAL AND LOCATION CONTACT SURFACES GOLD PMWT PRECIOUS MATERIAL AND WEIGHT 0.128 GOLD GRAINS, TROY PRMT PRECIOUS MATERIAL GOLD TEST TEST DATA DOCUMENT 81349-MIL-C-38999 SPECIFICATION THSD THREAD SERIES DESIGNATOR UNEF ZZZK SPECIFICATION/STANDARD DATA 96906-MS27497 GOVERNMENT STANDARD Subject to prior sale! Photos show everything that is included. For more information, or to contact us, please feel free to visit our ME page. 30 day Right of Return if not satisfied. Thanks for looking!!! Please visit our store for more great items! 9027 8-12-A
