Elektor Pico C Capacitance Meter

US $180

  • Anchorage, Alaska, United States
  • Jan 29th
Open on mobile:
QR code

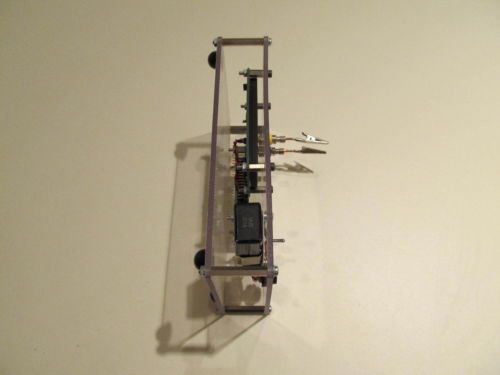

This auction includes: 1 pc Elektor Pico C Capacitance Meter, complete and working 2 pc Tip plugs with alligator clips 1 pc Printed copy of original Elektor magazine article Items are as pictured. This capacitance meter was purchased as a kit from Elektor and then assembled and tested. It is built with a 9 V battery holder and 2.1x5.5 mm coaxial dc power jack with center-off power source selector switch. Although the pictures show a 9 V battery installed, it will be removed prior to shipment and is not included. The meter also includes the Plexiglass top and bottom plates, which are the Elektor equivalent of an enclosure (but the plates do not completely enclose the unit; see pictures). The features listed in the Elektor article are: Range: < 1 pF to 2000 pF Resolution: 0.1 pF Display: 2-line LCD with backlight Microprocessor: ATtiny 2313 Easy calibration Source and hex code available from Elektor website This capacitance meter works as advertised by Elektor and may be upgraded to the Pico C+ with additional functions and extended measurement range. See Elektor website. The Pico C is a great platform for experimentation as well as a bench meter.
