Elmo Control Brushless Servo Motor Dc Drive Controller Cla-pp10/100 Robotic

US $199.99

Wurtsboro, New York, United States
Feb 14th

Open on mobile:
QR code

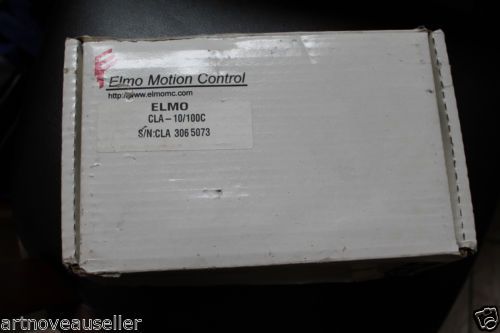

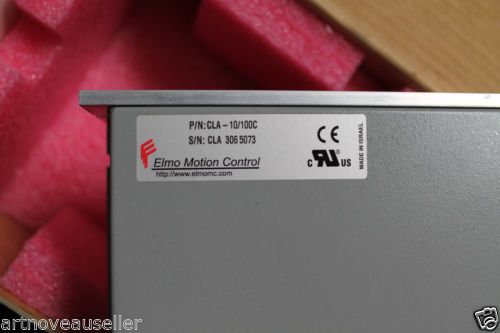

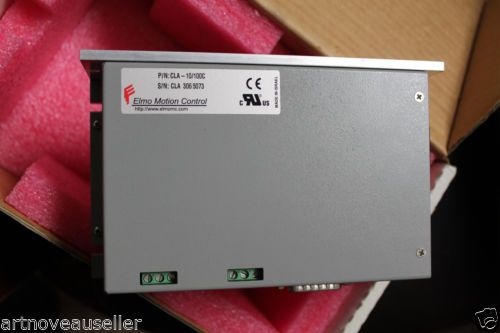

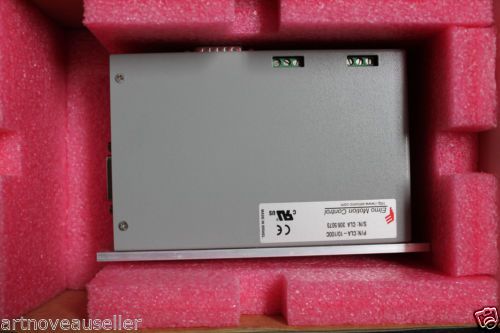

THIS AUCTION IS FOR A BRAND NEW ELMO MOTION CONTROL BRUSHLESS MOTOR DRIVER CLA- 10/100C S/N CLA 3065073 MANUAL NOT INCLUDED BUT CAN BE DOWNLOADED ON ELMOMC.COM General Description The CLARINET series of servo drives, for brushless motors, is designed for the sophisticated industrial market of high performance automated machinery. They incorporate a digital motion controller , featuring networking, position loop, velocity loop and current loop control. The CLARINET is available in 3 different configurations: A fully digital velocity mode amplifier - Standard version A network drive for distributed intelligence concepts, with high performance motion capabilities, including a CAN interface - Plus version A “stand alone” device with advanced motion capabilities to fully control a servo axis - PlusPlus version All the adjustments including position, velocity, current and commutation functions are accomplished via the serial communication line. The power source for the CLARINET series may be either a central DC power supply or a battery. The control and the auxiliary supplies are derived from the bus voltage by a switch mode power supply. The product meets UL508c and the relevant CE regulations. Dedicated Features Feature Standard Plus PlusPlus CAN interface no yes yes Current mode yes yes yes Velocity mode yes yes yes Velocity follower no yes yes Position jog no yes yes Position follower no no yes PT Position versus time mode no yes yes PTP Point to point position mode no yes yes PVT Position & velocity versus time no yes yes ECAM no no yes Pulse & direction input no yes yes Dual loop, position/velocity no no yes Event capturing inputs 0 0 1 Uncommitted inputs 4 4 4 Uncommitted outputs 3 3 3 User program size 200Bytes 2kB 32kB Flexible Mounting The unit may be either horizontally or vertically mounted. Convection cooling must be provided. CANopen Interface An isolated interface that is compliant with CANopen communication protocol DS301-V3.0 Resolver Feedback Option Standard Type Resolver Encoder Output Encoder Outputs RS422 1024 ppr Resolution Optional Backup Supply Enables safe emergency power down, while keeping the control logic active General Communication Interface RS232 up to 19200Baud or optional RS485 up to 34800Baud Feedback Input Diff. Encoder & Hall Sensors or Diff. Encoder Only Power Source DC power input from a central, isolated power supply or battery. See details on last page Motor Output The motor may be rotary or linear with sinusoidal or trapezoidal BEFM.

“NEW OPEN BOX MISSING THE MANUAL. MANUAL CAN BE DOWNLOADED ON ELMOMC.COM”

Brand

Elmo motion control
