Epson Stepping Motor Em210 Step Angle 7.2? Brass Gear Stepper Robotics Em 210

US $7.99

Prague, Oklahoma, United States
Jan 29th

Open on mobile:
QR code

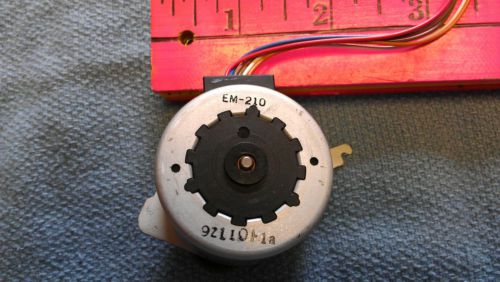

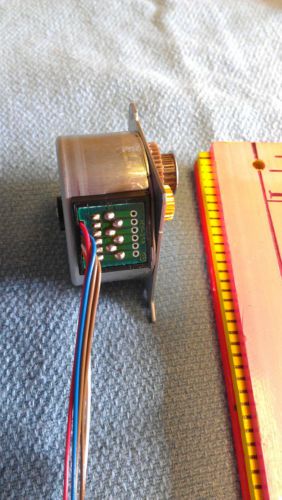

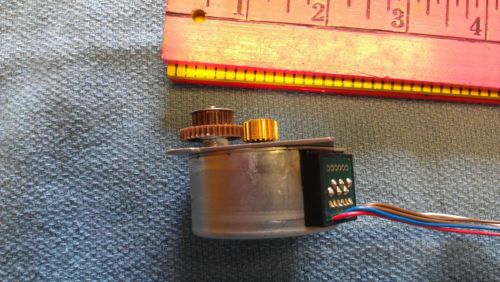

used epson stepping motor EM-210 with cable.. specifications below.. w/ brass gear thanks for looking as far as its correctness I do not know two types of Stepper Motor ("Also known as Step By Step"), the EM-211 and EM-210 extracted from a dot matrix printer © EPSON LX-300, information pulled fom a hack stepper motor site.. EM-210 Stepper EM-210, Back, Front, Side Characteristics: (Read hint 1) Type: Unipolar with 6 wires (Read Tip 1) Number of steps: 50 (Read Note 2) Angles by step: 7.2? Current by step: 0.42A (Read Tip 2) Voltage by step: 9V Rotations per minutes: Works good between 50RPM to 300RPM Wires: (Read Note 1) +A = Orange, -A = Blue, +B = White, -B = Red, COMMONS = Brown (Note 1:. Here is the great detail on the characteristics of the engines, the first easy and suggestive sight is identify the two common wires "The two brown", right at this point, but to identify the four signal has a detail, that the bind to the same coil are not two right and two left, as appears first) (Note 2:. The motor EM-210 has a box-reduction 2X1 "Two-to-one" means that each two steps for motor, only one will be given in the reduction, then, as is controlling the motor and wants to use the reduction will have to make two complete turns in engine to complete one in reduce, if not, the reduction may be removed "broken", without no prejudice to the motor) (Tip 1:. Use cutting pliers to remove the plug that comes in engines, it's easier to handle, and plug in breadboard) (Tip 2:. If using an integrated circuit as the ULN2803, which is a well known IC to control stepper motor, watch the current and voltage of the motor EM-210 because it works with 0.42A and the maximum current in CI is 0.5A) (Hint 1:. These values, characteristics of motors EM-211 and EM210 were raised based on several analyzes that I accomplished using a multimeter and assembly of small circuits aided by an Arduino board, so if someone disagrees and has better analysis please contact us so we can enhance and help more people who need this information) Posted with eBay Mobile

Condition	Used : An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes	“used stepping motor with cable step from epson printer brass gear”
