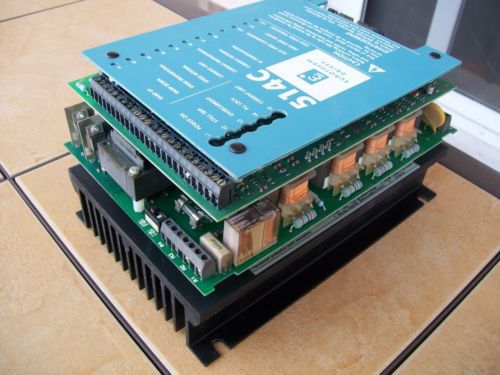

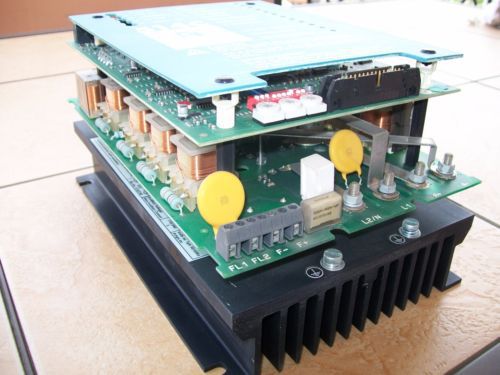

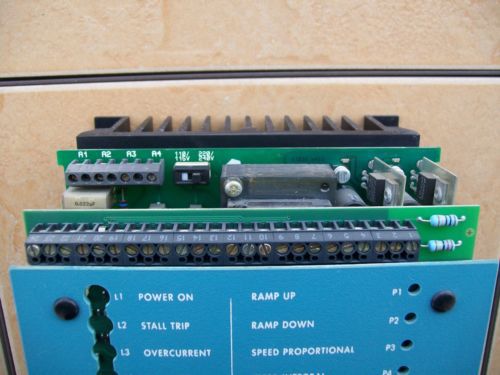

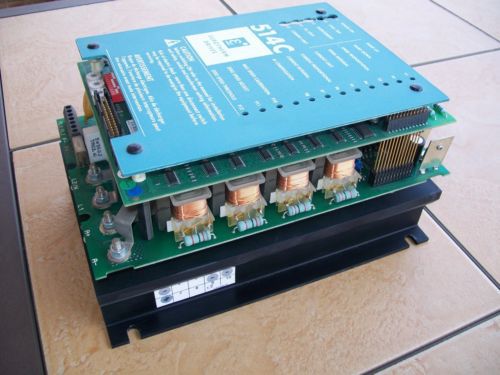

Eurotherm 514c Dc Drive * New No Box *

US $489.00

GR, Greece
Jun 9th

Open on mobile:
QR code

*** SPECIAL OFFER *** FAST & Registered International Shipping DC514C Drive 514C Regen Digital Drives from 4 to 32 Ampere ( up to 7.5 Hp) Description The regenerative 514C DC drive offers full four-quadrant control of DC motors from single phase supplies. As such it is ideal for applications involving overhauling loads or where rapid and accurate deceleration is required. Together with the non-regenerative 512C, they offer the perfect solution for lower power single motor and multi-drive applications. TECHICAL SPECIFICATIONS Switch Selectable Supply Power Single Phase 110Vac ±10% Single Phase 220Vac ±10% Single Phase 380Vac ±10% Single Phase 480Vac ±10% 50-60Hz ±5% Ambient Temperature 0-40°C TECHNICAL CHARACTERISTICS Motor Protection Stall condition 15 seconds internal Electronic Overload Protection Overload 150% for 60 seconds Available Field Current Up to 3A D.C. Available Frame Sizes 4, 8, 16 and 32 ampere INPUTS/OUTPUTS Analogue Inputs Ramp input Reference input - positive Reference input - negative Tachometer feedback Current limit Current reference Minimum speed Thermistor input Analogue Outputs Speed Load Current reference Ramp output Total reference Total reference inverted Reference supplies ±10V DC and +24VDC Digital Inputs Run (Active) Stall enable Digital Outputs Zero speed At stall condition Healthy INTERNATIONAL CODE The 514C series drive complies with UL508C and complies to standard code when installed in accordance to manufacturers installation manual. EN50178 (Protection Low Voltage Directive) EN50081-1 (1992) (Emission in ambient EMC) EN50082-2 (1995) (Immune in industrial EMC environment) Complies with CE, UL e c-UL Isolated input Circuitry Multiple inputs for reference speed/current Integrated pilot relay for main contactor Integrated Field Supply Extremely linear control loops OPTIONS EMC filter Line reactors for European and North American markets (UL-CSA) POTENTIOMETERS Maximum speed Minimum speed Current limit Acceleration rate (1-40s) Deceleration rate (1-40s) Current Proportional Gain Current integral Gain Speed Proportional Gain Speed Integral gain I.R. Compensation Zero Speed Threshold Zero speed offset SWITCH SELECTIONS Speed Calibration Tachometer/Armature Voltage Feedback Select At zero speed Output current bipolar/unipolar Ramp isolate Stall logic On/Off Current reference input/output Over-current trip Set-point comparator Input Voltage Series 512C/514C DC Drives Rated Output (Amps) Nominal HP 120VAC 1Ph 512C/040/120 4 0.5 514C/040/120 4 0.5 512C/080/120 8 1 514C/080/120 8 1 512C/160/120 16 2 514C/160/120 16 2 512C/320/120 32 5 514C/320/120 32 5 240VAC 1Ph 512C/040/240 4 1 514C/040/240 4 1 512C/080/240 8 2 514C/080/240 8 2 512C/160/240 16 5 514C/160/240 16 5 512C/320/240 32 10 514C/320/240 32 10 480VAC 1Ph 512C/040/460 4 2 514C/040/460 4 2 512C/080/460 8 5 514C/080/460 8 5 512C/160/460 16 10 514C/160/460 16 10 512C/320/460 32 20 514C/320/460 32 20 Check out my other items!

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	Eurotherm
Country/Region of Manufacture	France
Model	514C
