Excellent Rohde & Schwarz Diagraph [30 To 300 Mc] Type Zdu Bn3561 Fnr 998/6

US $910

San Jose, California, United States
Apr 26th

Open on mobile:
QR code

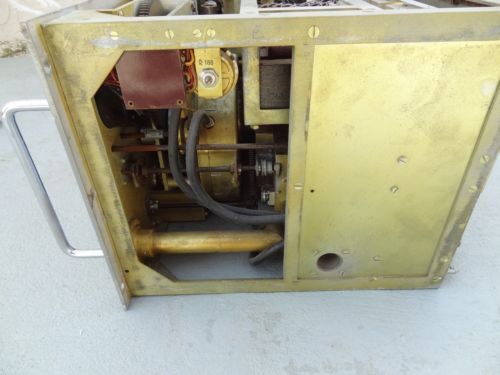

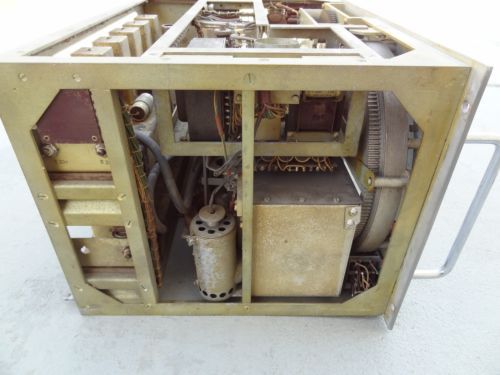

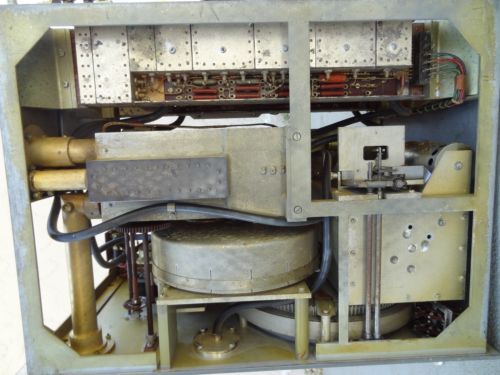

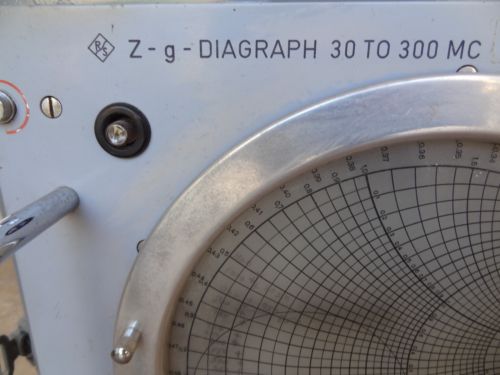

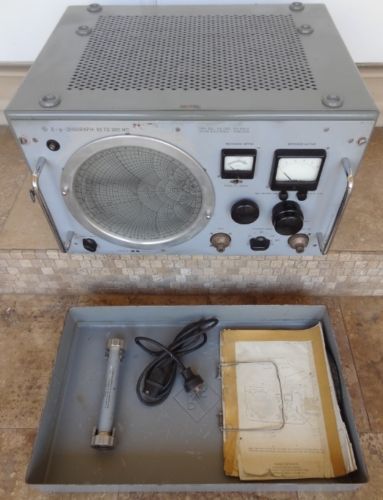

1965 Rohde & Schwarz Z-g Diagraph German Complex Network Analyzer Used by IBM Corporation for Semiconductor Testing Telecommunications, Electronics, Broadcasting In Excellent Condition and Working Order Needs cleaning and service Contains silver and precious metals, tubes, operating manuals, power cord External metal case, refurbished with coat of grey paint In 1950 Rohde & Schwarz developed the first complex network analyzer, calling it the Z-g DIAGRAPH. For the first time it was possible to directly measure the phase of S-parameters (scattered parameters) of a broadcast, electrical or telecommunications signal. The Z-g Diagraph instrument was primarily found in measurements on sound and TV broadcasting antennas. But it was also used to test special cables in telecommunications, and it served microwave engineers as a Smith chart. The Z-g Diagraph (30 MHz to 300 MHz), introduced at the beginning of the 1950s, at 55 kg (121 lbs.) it is housed in a metal case containing tubes, a power supply and highly sensitive test and sophisticated measuring equipment. Country: Germany Manufacturer / Brand: Rohde & Schwarz, PTE; Munich Physics-Technical Development Laboratory Dr. Rohde & Dr. Schwarz Year: 1965 Type: Service/Lab/Test Equipment Valves / Tubes 24: EC55 EC81 EF80 EF800 EA50 EL84 PL81 EZ80 85A2 Wave bands Wave Bands given in the notes. Details Power type and voltage Alternating Current supply (AC) / 115; 125; 220; 235 Volts Loudspeaker Power out Model: Z-g-Diagraph ZDU - Rohde & Schwarz, PTE; Munich Material Metal case Shape : Table-model, low profile (big size). Dimensions (WHD) 540 x 340 x 480 mm / 21.3 x 13.4 x 18.9 inch The Z-g Diagraph CBE operates in the frequency range from 30 MHz to 300 MHz. The device is has four main Capabilities: - Impedance and admittance - Transfer properties of four- and multi-pole networks - Phase angle between two equi-frequency voltages. - Application of a linear measurement receiver The measured values can be read directly from charts to Smith, Carter, or on a polar plot of the reflection coefficient. The reading is taken as a direct view display by a light spot. Diagraphs were supplied with the impedances 50, 60 and 75 Ohms. The tube types are multiple types in sound shape. Net weight: 122 lbs. (55 kg)

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Zohde & Schwarz
MPN	30 TO 300 MC

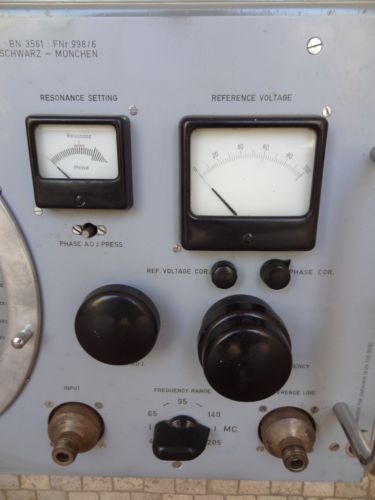

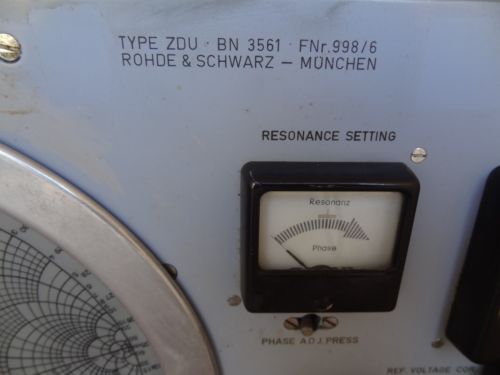

Model	Type ZDU BN 3561
Country/Region of Manufacture	Germany
