Fire Sprinkler Speed Scale

US $14.99

  • Redondo Beach, California, United States
  • Feb 13th
Open on mobile:
QR code

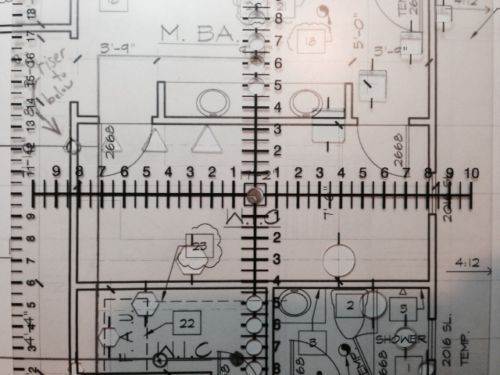

The fire sprinkler Speed Scale is used by fire sprinkler estimators, designers, and plans examiners. Quickly see your measurements in four directions at once and place the head or verify its distance from the four walls of a room.  Simply place the cross hair center cut-out circle where you would like to place the head on the plans, or over the existing fire sprinkler head on the plans and see the distance in four directions. No more cumbersome rulers or tapes, just slide the template over the plans from room to room.  Ideal for residential systems. Commonly used geometric shapes included on the template.  The scale is 1/4", just double the numbers for 1/8" scale. You will speed up and save time doing your estimating, design or plan check.

Directions
